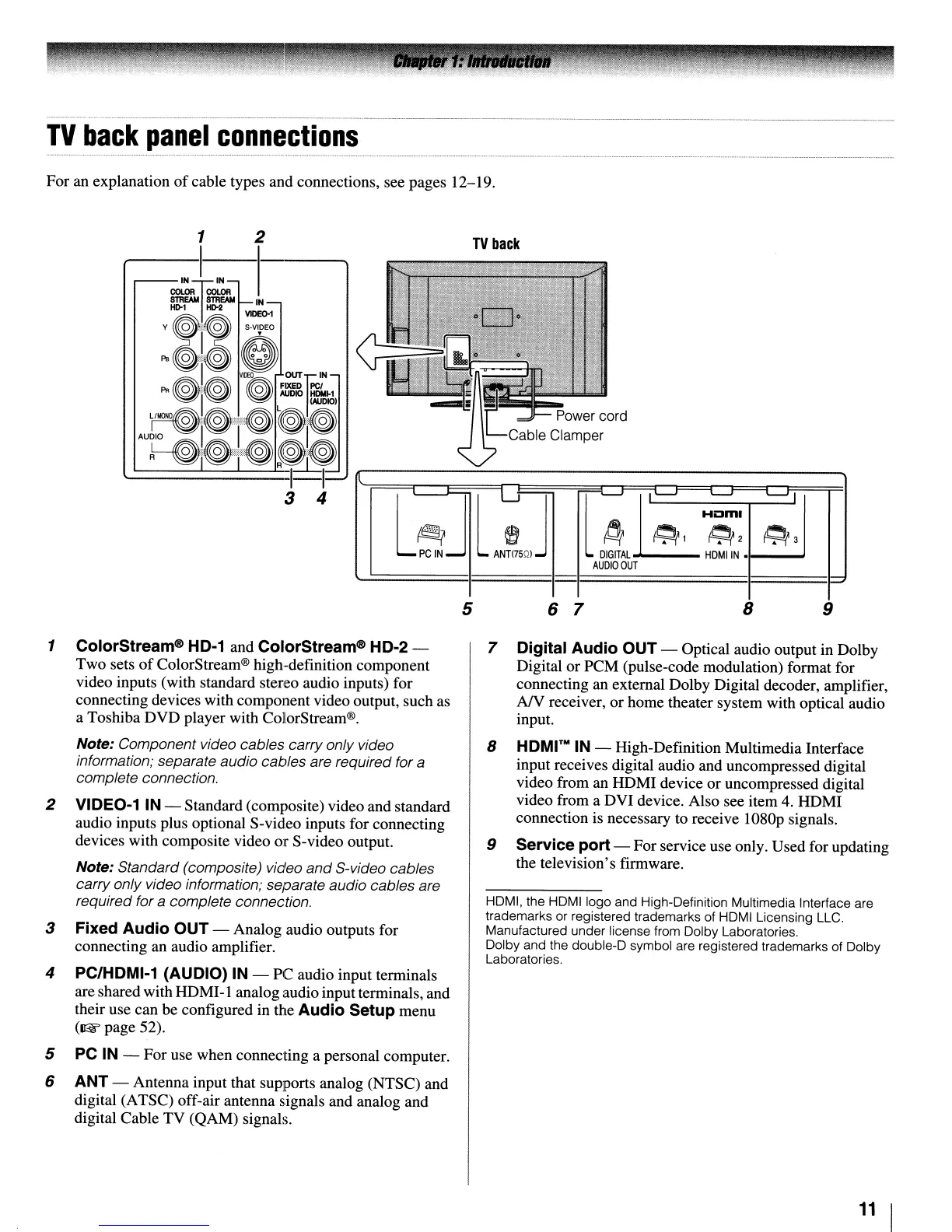

---------_._------------_._--_._---
TV
back
panel
connections
_ - _
..
_
..
_
_-
................•......
_.....
.-_.-
_ _ .
For an explanation
of
cable types and connections, see pages 12-19.
1 2
TV
back
5 6 7
8 9
1 ColorStream® HD-1 and ColorStream® HD-2 -
Two sets
of
ColorStream® high-definition component
video inputs (with standard stereo audio inputs) for
connecting devices with component video output, such as
a Toshiba DVD player with ColorStream®.
Note: Component video cables carry only video
information; separate audio cables are required for
a
complete connection.
2 VIDEO-1 IN - Standard (composite) video and standard
audio inputs plus optional S-video inputs for connecting
devices with composite video or S-video output.
Note: Standard (composite) video
and
S-video cables
carry only video information; separate audio cables are
required for
a complete connection.
3 Fixed Audio OUT - Analog audio outputs for
connecting
an
audio amplifier.
4 PC/HDMI-1 (AUDIO) IN - PC audio input terminals
are shared with HDMI-l analog audio inputterminals, and
their use can be configured in the
Audio Setup menu
(1&
page 52).
5 PC IN - For use when connecting a personal computer.
6 ANT - Antenna input that supports analog (NTSC) and
digital (ATSC) off-air antenna signals and analog and
digital Cable TV (QAM) signals.
7 Digital Audio OUT - Optical audio output in Dolby
Digital
or
PCM (pulse-code modulation) format for
connecting
an
external Dolby Digital decoder, amplifier,
AJV receiver, or home theater system with optical audio
input.
8
HDMI™
IN - High-Definition Multimedia Interface
input receives digital audio and uncompressed digital
video from an HDMI device or uncompressed digital
video from a DVI device. Also see item 4. HDMI
connection is necessary to receive 1080p signals.
9 Service port - For service use only. Used for updating
the television's firmware.
HDMI, the HDMIIogo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories.
11
