Note:
To
ensure that the HOMI or
OVI
device
is
reset properly,
it
is
recommended that you follow these procedures:
•
When
turning on your electronic components,
turn
on the
TV first,
and
then the HOMI or
OVI
device.
•
When
turning offyour electronic components,
turn
off
the
HDMI
or
DVI device first,
and
then the
TV.
l
LJ
~LJ
H~I~~
~
~
~2
~3
DIGITAl
HOM
I
IN
AUDIO
OUT
[1] EINCEA-861-D compliance covers the transmission of
uncompressed digital video with high-bandwidth digital content
protection, which
is
being standardized for reception of high-
definition video signals. Because this
is
an evolVing technology,
it
is
possible that some devices may not operate properly with the
TV.
HDMI, the
HDMIIogo
and High-Definition Multimedia Interface are
trademarks or registered trademarks of HOM I Licensing LLC.
To
connect a DVI device, you will need:
• one HDMI-to-DVI adapter cable (HDMI type A connector)
per DVI device
- For proper operation, the length
of
an HOMI-to-OVI
adapter cable should not exceed
9.8 ft (3m).
The
recommended length
is
6.6
ft (2m).
• one pair
of
standard analog audio cables per DVI device
- An HOMI-to-OVI adapter cable transfers video only.
Separate analog audio cables are required (see
illustration).
- See "Setting the
HOMr
M
audio
mode"
(1&
page
32).
TV
lower
back
panel
To
connect
an
HDMI
device, you will need:
• one HDMI cable (type A connector) per HDMI device
- For
proper
operation, it
is
recommended that you use an
HOMI cable with the HOMI Logo
(HLJml).
-
To
display an 1080p/60Hz signal format, you will need a
Category 2 cable. Conventional HOMI/OVI cable may not
work properly.
- HOMI cable transfers both video
and
audio. Separate
analog audio cables are not required (see illustration).
- See "Setting the HOM!"" audio
mode"
(1&
page
32).
TV
lower
back
panel
HDMI
device
o J
lLJ~C:j
H:;~
~I
~
~~,
~2·.~~~
~T(75(;)
DIGITAL
HDMIIN
~.-
••
AUDIO
OUT
__
••
_
••

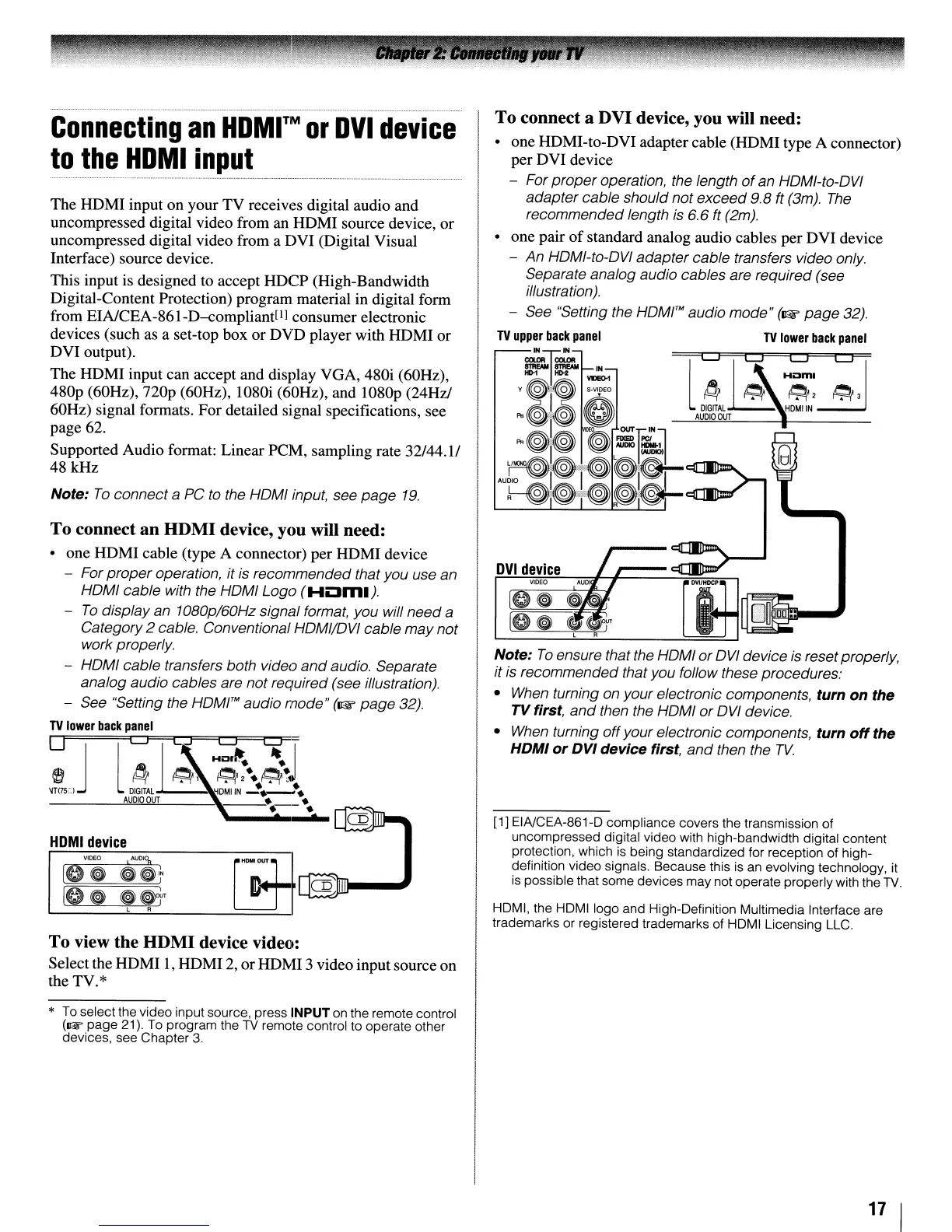

Connecting
an
HDMI™
or
DVI
device
to
the
HDMI
input
The HDMI input on your TV receives digital audio and
uncompressed digital video from an HDMI source device, or
uncompressed digital video from a DVI (Digital Visual
Interface) source device.
This input
is
designed to accept HDCP (High-Bandwidth
Digital-Content Protection) program material
in
digital form
from EINCEA-861-D-compliant[11 consumer electronic
devices (such as a set-top box or DVD player with HDMI or
DVI output).
The HDMI input can accept and display VGA, 480i (60Hz),
4801' (60Hz),
nop (60Hz), 1080i (60Hz), and 10801' (24Hz/
60Hz) signal formats. For detailed signal specifications, see
page 62.
Supported Audio format: Linear PCM, sampling rate 32/44.11
48kHz
Note:
To
connect a PC
to
the HOMI input, see
page
19.
To
view
the
HDMI
device video:
Select the HDMI
I,
HDMI
2,
or HDMI 3 video input source on
the TV.*
*
To
select the video input source, press INPUT
on
the remote control
(1& page 21).
To
program the
TV
remote control to operate other
devices, see Chapter
3.
17
1
