e-STUDIO162/162D/151/151D EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 1
[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES

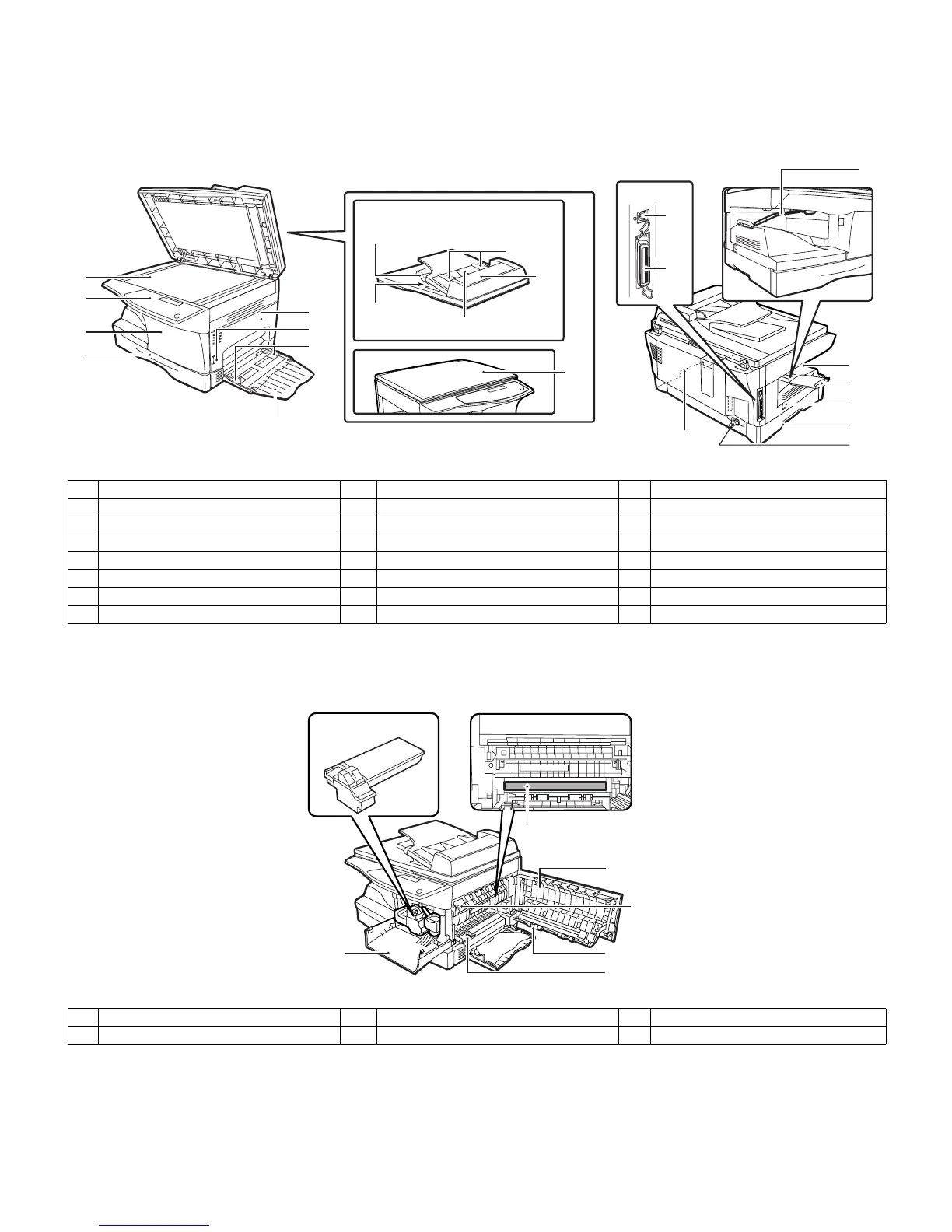

1. Appearance
(With optional ADF/RADF installed)
2. Internal
(With optional ADF/RADF installed)
1 Document glass 2 Operation panel 3 Front cover
4 Paper tray 5 Side cover 6 Side cover open button
7 Bypass tray paper guides 8 Bypass tray 9 Reversing tray (RADF only)
10 Original guides 11 Document feeder cover 12 Document feeder tray
13 Exit area 14 Document cover 15 Paper output tray
16 Paper output tray extension 17 Power switch 18 Handles
19 Power cord 20 USB connector 21 Parallel connector
22 Paper holder arm
1 Front cover 2 Side cover 3 Fusing unit release lever
4 Transfer charger 5 Charger cleaner 6 Photoconductive drum
9
10
11
12
13
2
3
4
1
5
7
6
8
14
ADF/RADF (Option)
16
15
19
22
Interface
18
18
17
20
21
3
4
5
2
1
Toner cartridge
