e-STUDIO162/162D/151/151D GENERAL 1 - 1
[1] GENERAL
1. Major functions
Configurations
Descriptions of items
CPM: Copy speed (Copies Per Minute)
SB/MB: SB = Manual feed single bypass, MB = Manual feed multi bypass
2 tray: Second cassette unit (MY-1026)
ADF: Original feed unit (MR-2016)
R-ADF: Duplex original feed unit (MR-3017)
Color scanner: Color scanner function
GDI printer: GDI printer function with USB
SPLC
:
SPLC
printer function
E-SORT
:
Electrical sort
Duplex: Auto duplex copy function
Shifter
: Job separator function
FAX: FAX function (GD-1190)
Desktop Document
Manager: Scanner utilities
IEEE1284: Interface port (parallel)
USB: Interface port (USB)
RJ45: Interface port (Network)
External NIC: GA-1170
Descriptions of table
❍
: Standard provision
✕
: No function or no option available
Opt: Option
2. Note for servicing and handling
When the main unit power is repeatedly turned OFF/ON rapidly (for about 1sec), the IC (OA982) on the MCU PWB may malfunction to cause an error
(E1-00 Communication error), which does not boot the machine. In case of this error, the blank display is kept for several tens seconds and then "E1-
00" is displayed on the panel display.
<Countermeasure>
Turn off the power and keep it for more than 10sec. Then turn on the power.
When the machine is booted.: There is no problem in the MCU PWB.
When the machine is not booted.: The MCU PWB trouble
Item CPM /
PPM
SB/
MB
2
Tray
ADF R-ADF
Color
Scanner
(push)
GDI
printer
SPLC E-SORT Duplex Shifter FAX DDM
IEEE
1284
USB RJ45
External
NIC

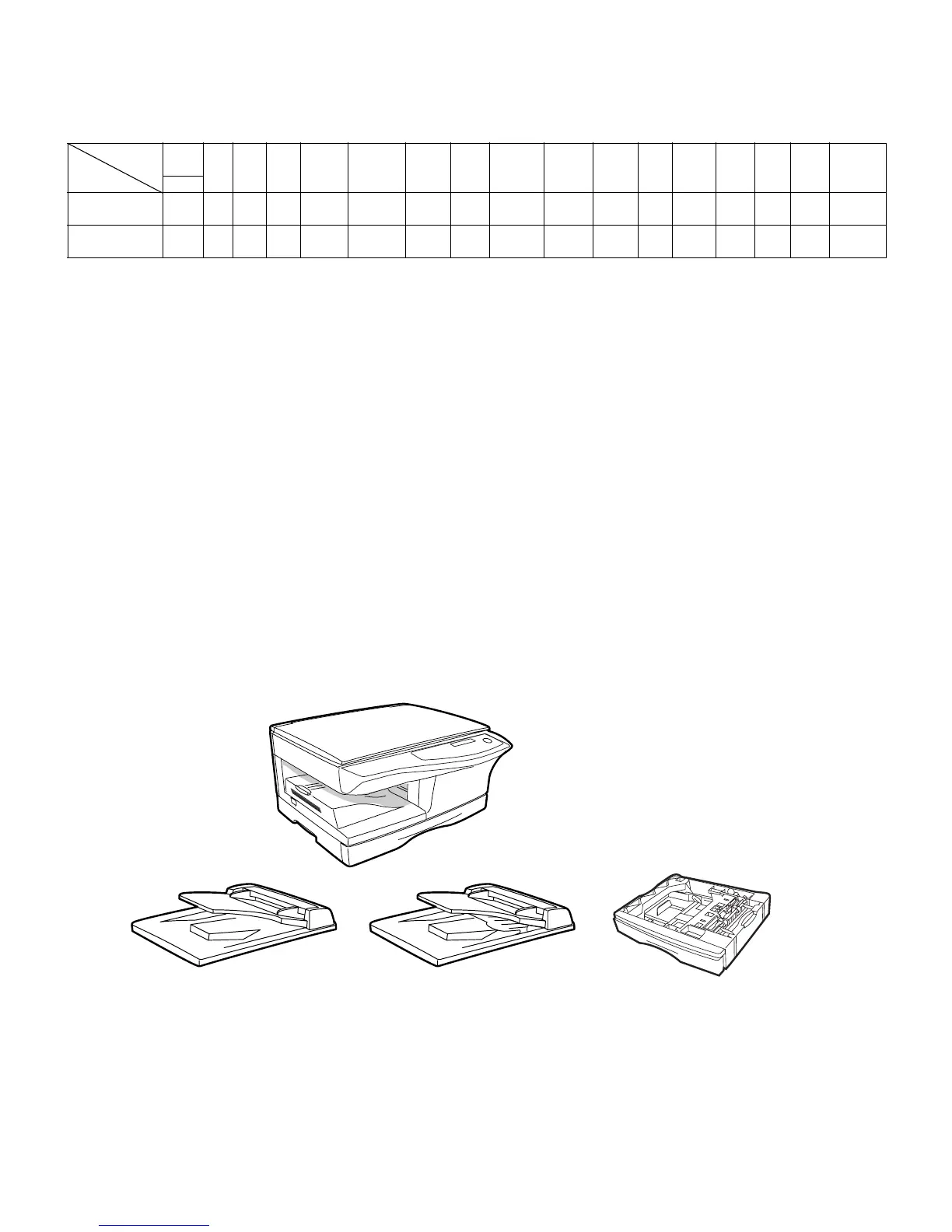

Model
A4
e-STUDIO162
e-STUDIO151
16
15
MB Opt Opt Opt ❍✕❍❍✕❍Opt ❍❍❍
(2.0)
✕ Opt
e-STUDIO162D
e-STUDIO151D
16
15
MB Opt Opt Opt
❍✕❍❍❍❍Opt ❍❍❍
(2.0)
✕ Opt
(MY-1026)
(MR-2016) (MR-3017)
(e-STUDIO162/162D/151/151D)
