e-STUDIO162/162D/151/151D OPERATIONAL DESCRIPTIONS 7 - 7
(3) Conditions of occurrence of paper misfeed
a. When the power is turned on:
PPD or POD is ON when the power is turned on.
b. Copy operation
6. D-D (Duplex to Duplex) mode paper/
document transport (Duplex model)
A. Initial state
Set duplex documents on the document tray.
Set paper on the cassette. (In the duplex mode, the manual feed tray
cannot be selected.)

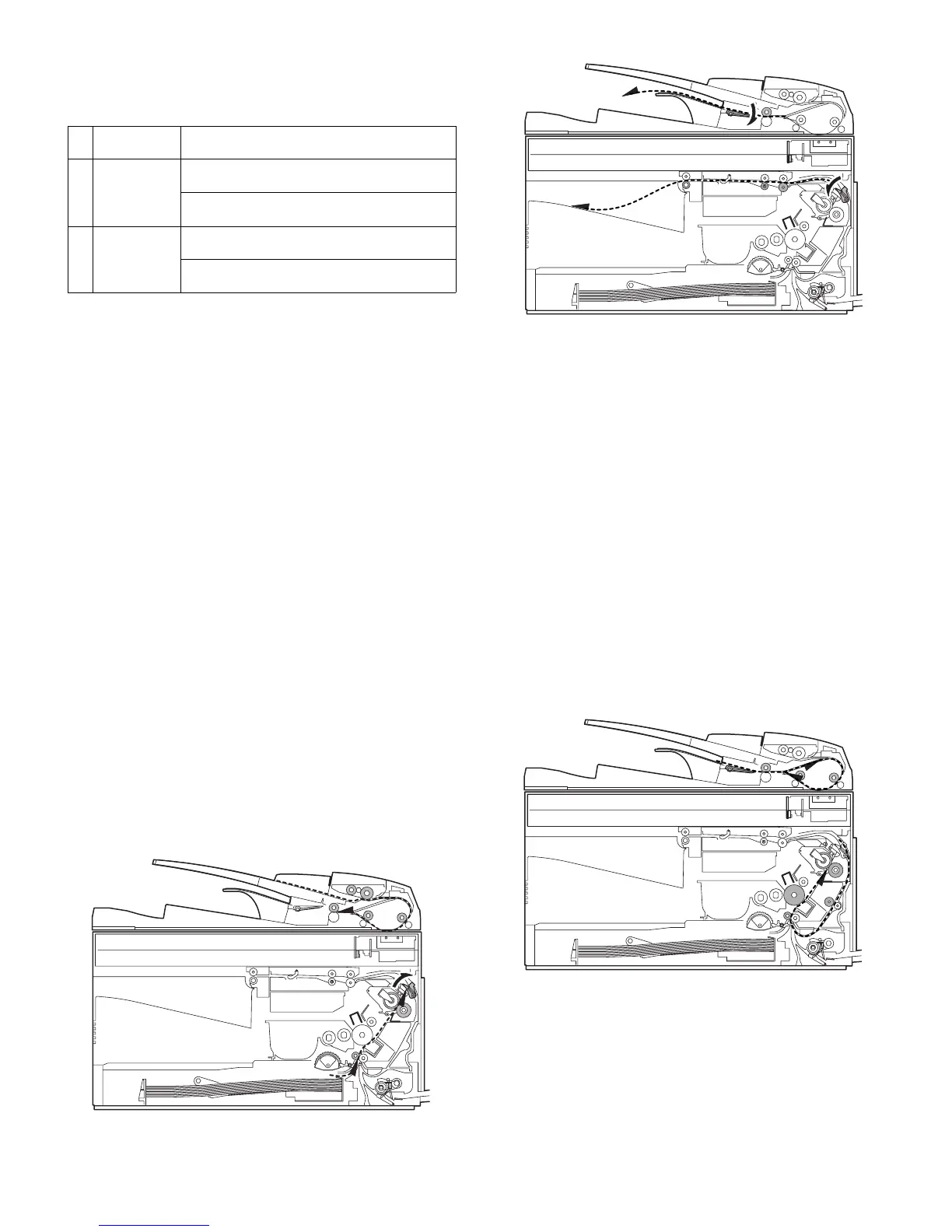

B. Front copy
Document transport:
The document feed roller feeds the document from the paper feed
roller to the PS roller.
• The document is exposed in the exposure section, and sent to the
document exit section
• by the transport/paper exit roller.
• R-ADF gate solenoid ON
• The document is sent to the intermediate tray.
(but not discharged completely.)
• The document is stopped once, then switchback operation is
performed.
(To the back copy)
Paper transport:
The document is passed through the paper feed roller and the PS
roller by the paper feed roller
and the images on the front surface are transferred.
• The paper is passed through the fusing section and the lower side of
the gate section to the paper exit tray side, (but not discharged
completely.)
• It is stopped once and switchback operation is performed.
(To the back copy)
C. Back copy
Document transport:
By switchback operation, the document is sent through the PS roller to
the exposure section, where the back of the document is exposed.
• It is sent to the document exit section by the transport roller and the
paper exit roller.
• R-ADF gate solenoid ON. The document is sent to the intermediate
tray, (but not discharged completely.)
• It is stopped once and switchback operation is performed.
• It is sent through the PS roller and the exposure section (without
exposure operation) to the document exit section.
• R-ADF gate solenoid OFF
• The document is discharged to the document exit tray.
Paper transport:
Switchback operation is performed.
• The paper is sent through the upper side of the gate section and the
duplex transport section, and the PS roller, and the images on the
back are transferred.
• It is sent through the fusing section and discharged to the paper exit
tray.
a PPD1 jam PPD1 does not turn off within 4 sec after turning
on the resist roller.
b PPD2 jam PPD2 is off immediately after turning on the
resist roller.
PPD2 does not turn off within 1.2 sec after
turning off the resist roller.
c POD jam POD does not turn on within 2.9 sec after turning
on the resist roller.
POD does not turn off within 1.5 sec - 2.7 sec
after turning off PPD2.
