e-STUDIO162/162D/151/151D EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 3

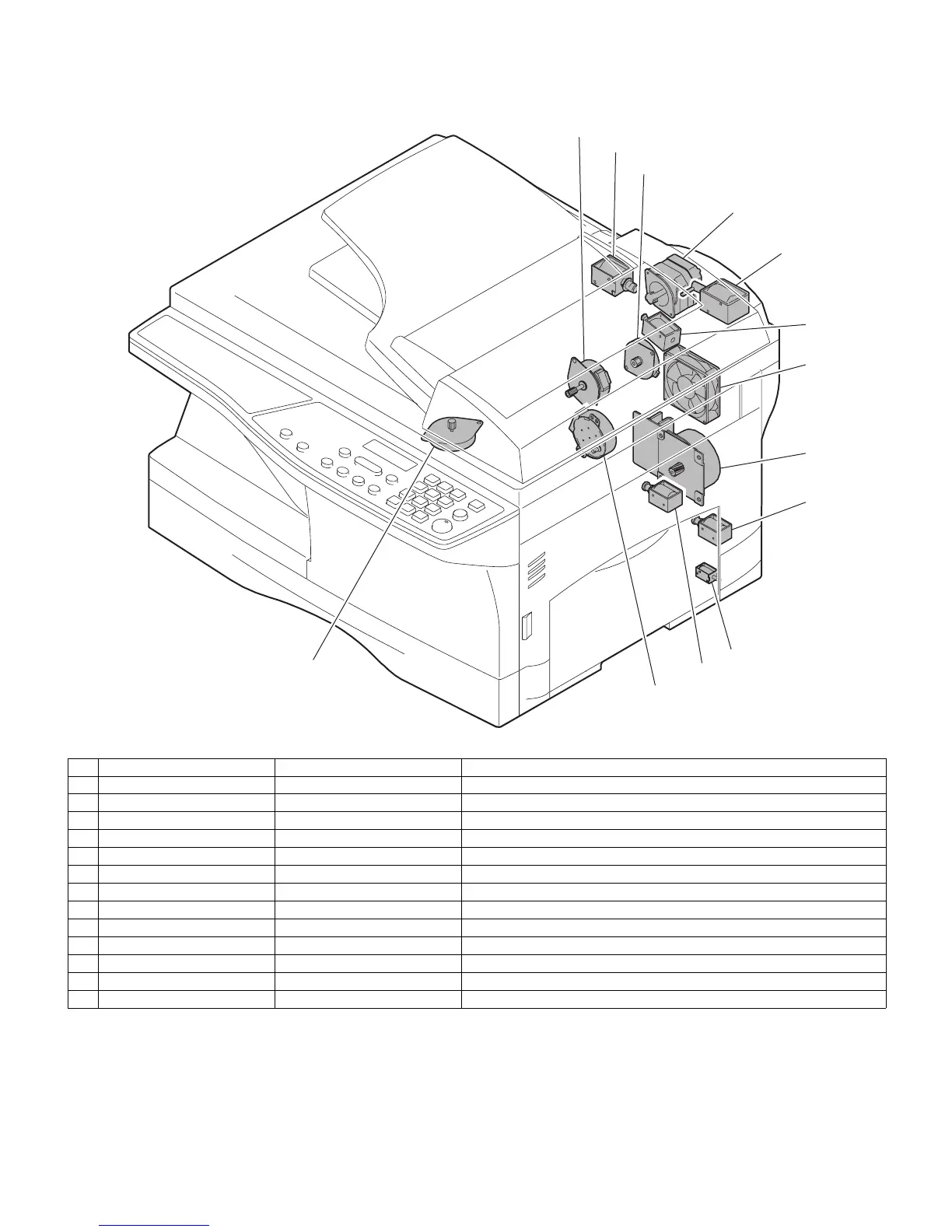

4. Motors and solenoids
(With optional ADF/RADF installed)
No. Part name Control signal Function / Operation
1 Main motor MM Drives the copier.
2 Scanner motor MRMT Drives the optical mirror base (scanner unit).
3 Toner motor TM Supplies toner.
4 Cooling fan motor VFM Ventilate the fuser section.
5 Resist roller solenoid RRS Resist roller rotation control solenoid
6 Paper feed solenoid CPFS1 Cassette Paper feed solenoid 1
7 Multi paper feed solenoid MPFS Multi manual pages feed solenoid
8 ADF motor SPFM Drives the single pass feeder
9 Duplex motor DMT Devices the duplex paper transport section (Duplex model only)
10 Original feed solenoid SPUS Original pick up solenoid
11 ADF paper feed solenoid SPFS Original feed solenoid (RADF only)
12 ADF gate solenoid SGS Controls the document reverse gate. (RADF only)
13 Shifter motor SFTM Drives the shifter.
1
4
8
11
2
12
13
9
10
5
7
6
3
e-STUDIO162_151.book 3 ページ ２００４年１２月２日 木曜日 午後９時３７分
