Toyota 1KZ-TE Repair Manual

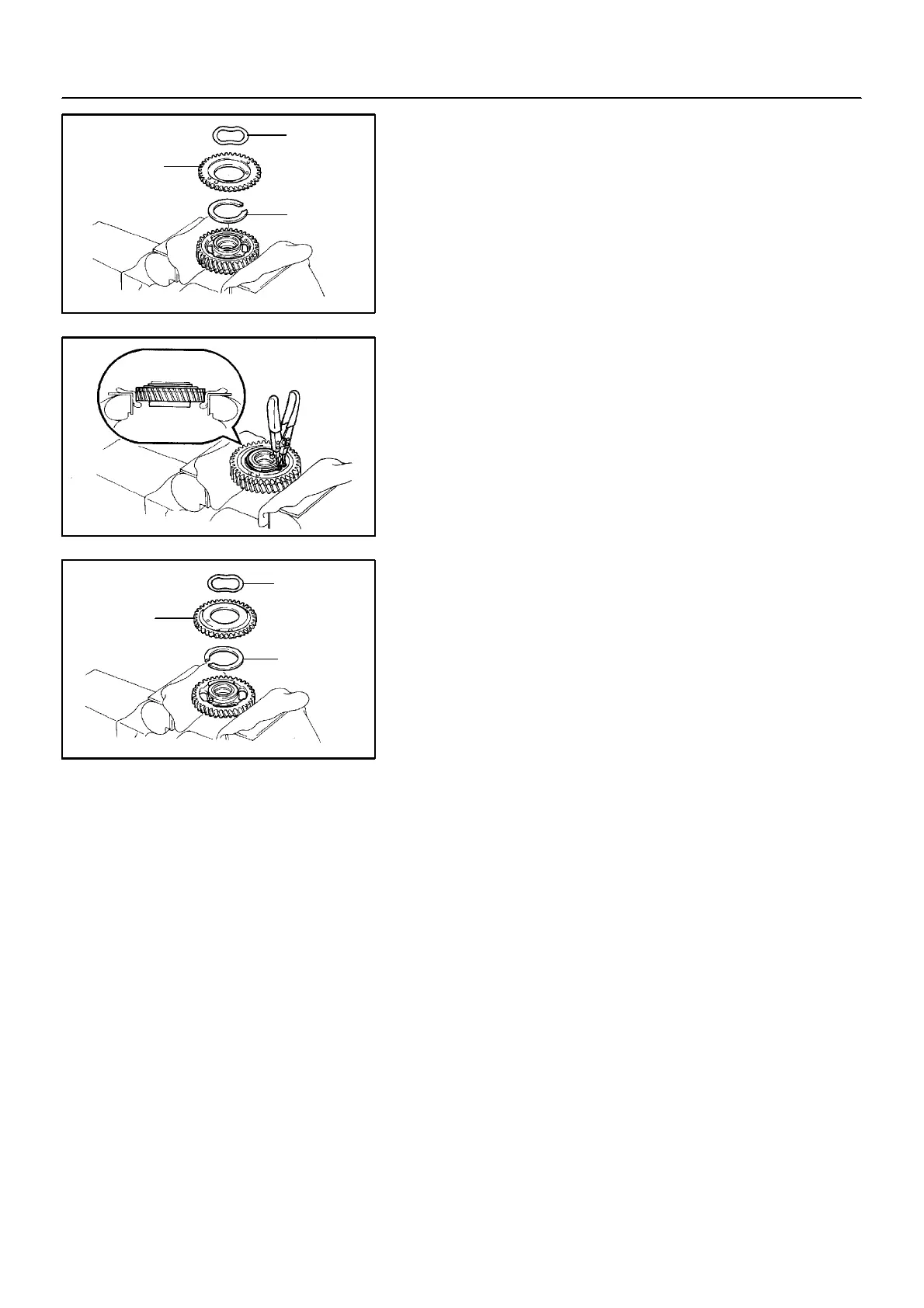

P11683
Wave
W asher
No.1 Idler
Sub--Gear
Idler
Gear
Spring
P11689
Upward
P11684
No.1 Idler
Sub--Gear
Wave
W asher
Idler
Gear
Spring
EM--28
--ENGINE MECHANICAL TIMING GEAR
(d) Remove the wave washer.
(e) Remove the No.1 idler sub -- gear.
(f) Remove the idler gear spring.
(g) Remove the idler gear assembly from the vice and turn it
upside down.
(h) Mount the idler gear in a vise.
NOTICE:
Be careful not to damage the gear.
(i) Using snap ring pliers, remove the snap ring.
(j) Remove the wave washer.
(k) Remove the No.2 idler sub -- gear.
(l) Remove the idler gear spring.
CLICK HERE TO VIEW CHAPTER INDEX
Pages From Manual
TO MODEL INDEX
1KZ-TE

Toyota 1KZ-TE Specifications

General

Displacement	2982 cc
Bore x Stroke	96.0 mm x 103.0 mm
Compression Ratio	21.2:1
Fuel Type	Diesel
Fuel System	Direct Injection
Number of Cylinders	4
Valvetrain	SOHC, 2 valves per cylinder
Turbocharger	Yes
Intercooler	Yes
Engine Type	Inline-4, Turbocharged
