Toyota 1KZ-TE Repair Manual

Z09204

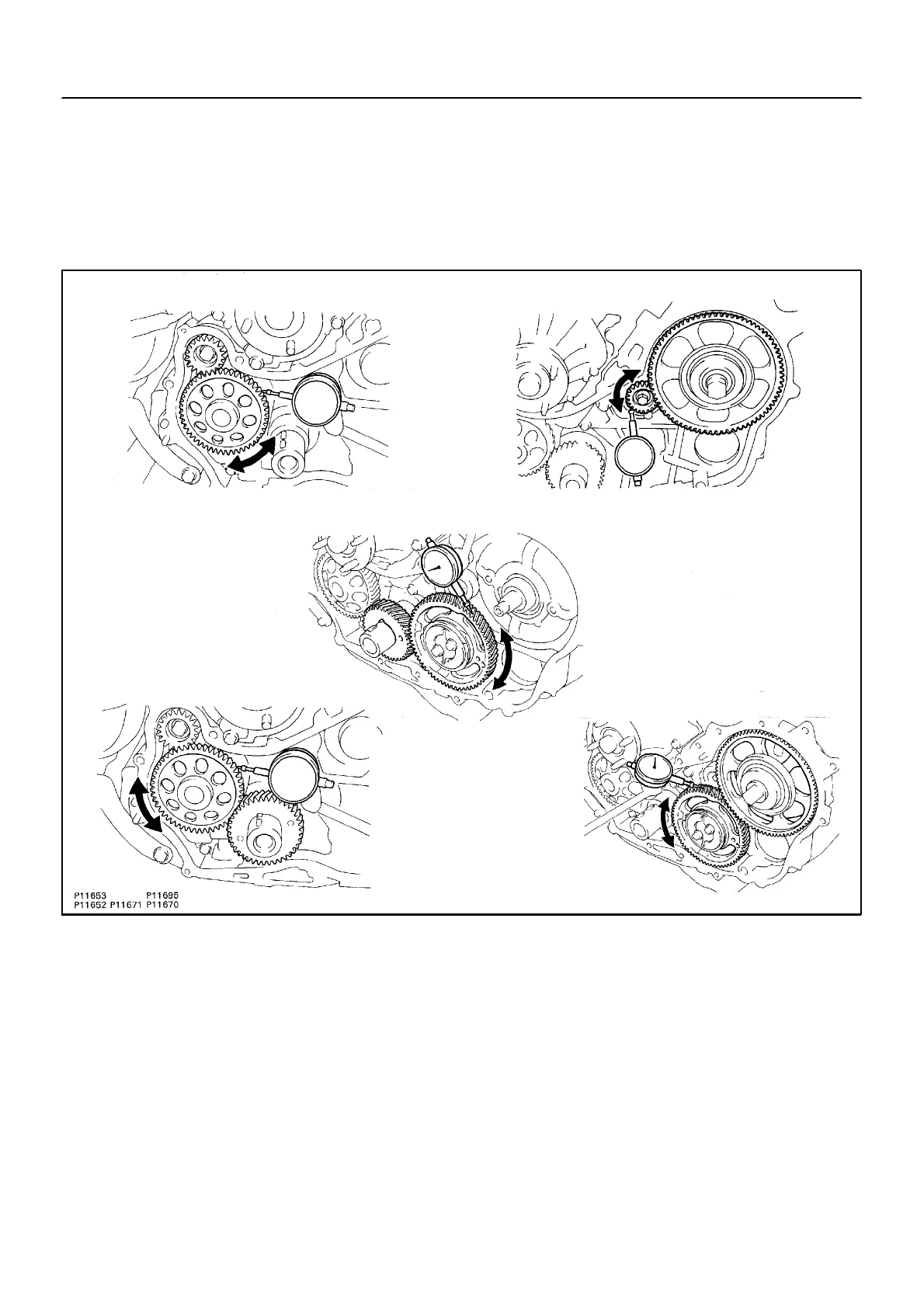

Balance Shaft No.1 x Oil Pump Balance Shaft No.2 x Injection Pump
Crankshaft x Idler
Injection Pump x Idler
Oil Pump x Crankshaft
EM--30
--ENGINE MECHANICAL TIMING GEAR
3 . CHE CK BACKLAS H O F T I MI NG G E ARS
Using a dial indicator, measure the backlash.
Standard gear backlash:
0.02 -- 0.15 mm (0.0008 -- 0.0060 in.)
Maximum gear backlash: 0.20 mm (0.0079 in.)
If the gear backlash is greater than maximum, replace the gears
as a set.
CLICK HERE TO VIEW CHAPTER INDEX
Pages From Manual
TO MODEL INDEX
1KZ-TE

Toyota 1KZ-TE Specifications

General

Displacement	2982 cc
Bore x Stroke	96.0 mm x 103.0 mm
Compression Ratio	21.2:1
Fuel Type	Diesel
Fuel System	Direct Injection
Number of Cylinders	4
Valvetrain	SOHC, 2 valves per cylinder
Turbocharger	Yes
Intercooler	Yes
Engine Type	Inline-4, Turbocharged
