Toyota 1KZ-TE Repair Manual

P12632
Idler
Gear
Shaft
P12379
P12110
P12109
P11667
Idler Sub--Gear
Idler Gear
Service
Bolt
--ENGINE MECHANICAL TIMING GEAR
EM--37

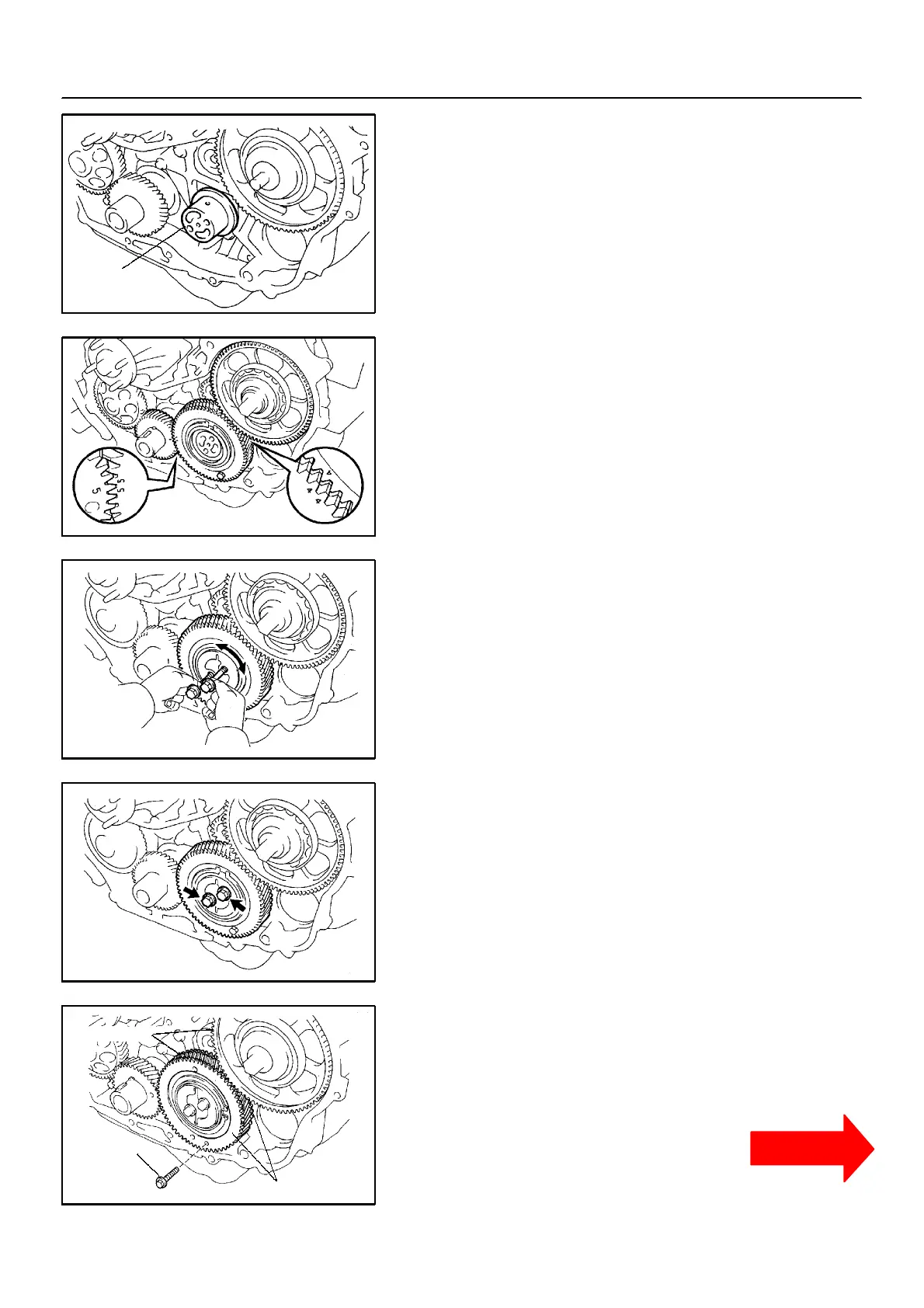

(2) Install the idler gear shaft to the cylinder block.
(3) Align the idler gear assembly timing marks ”5” and
”4” with the crankshaft timing gear mark ”5” and in-
jection pump drive gear timing mark ”4” respective-
ly, and mesh the gears.
(4) Align the thrust plate set bolt holes.
(5) Install the thrust plate with the 2 bolts. Torque the
bolts.
Torque: 50 N∙m (500 kgf∙cm, 36 ft∙lbf)
(6) Remove the service bolt.
