6. Hydraulic oil level inspection procedure

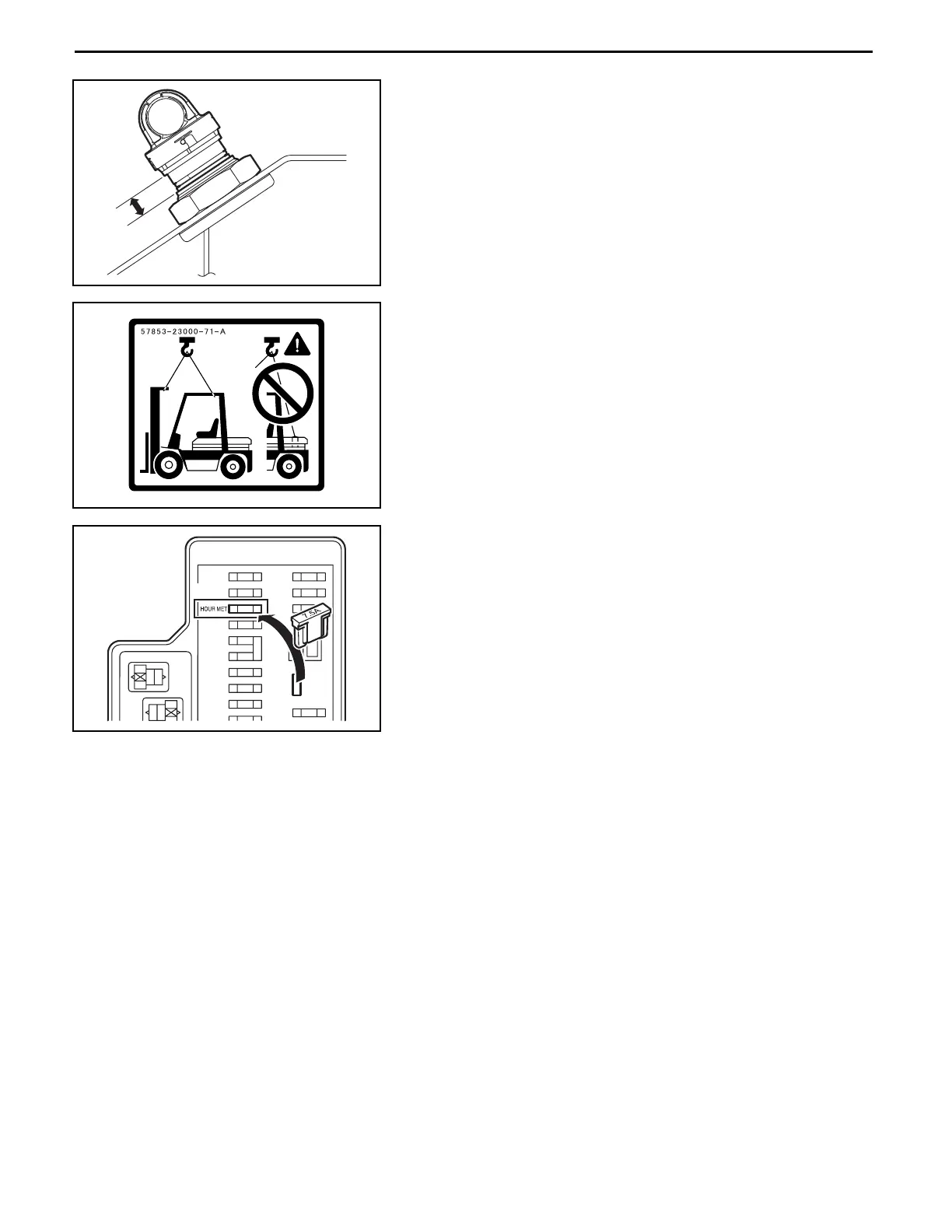

Checking the oil amount inside tank, as shown below, contact
top of cap on retainer. (Do not push it into retainer.)
HOISTING THE VEHICLE
When hoisting the vehicle, sling with wire rope(s) at the mast hook
holes and the rear side of the head guard.
Caution:
• Use wire ropes having sufficient strength.
• Never hoist the forklift by the weight hook holes.
HOW TO START THE HOUR METER
Be sure to start the hour meter when delivering a new vehicle to a
customer.
Remove the fuse (7.5 A) in position A inside the relay block and
install it to position B (HOUR MET).
Make sure that the engine is stopped when installing the fuse.
25ABLRSPARE
SPARE
ST
GAUGE
BACK LP
SFT
TURN
IGN
STA
RR WIP
FR WIP
1230A
7.5A
7.5A21
7.5A21
10A2
1
10A2
7.5A21
7.5A21
1
53
2
2
35
*221
30A12
20A12
20A
40A AM1
1
12
2
15AHORN 1 2
B
A
General
Section 0
*
0-8
*NOTE: Excludes 7FGCU15,18,SU20

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
