Toyota 8FGCU30 User Manual

Intake temperature
%
, < Grommet
Air cleaner
// inlet hose

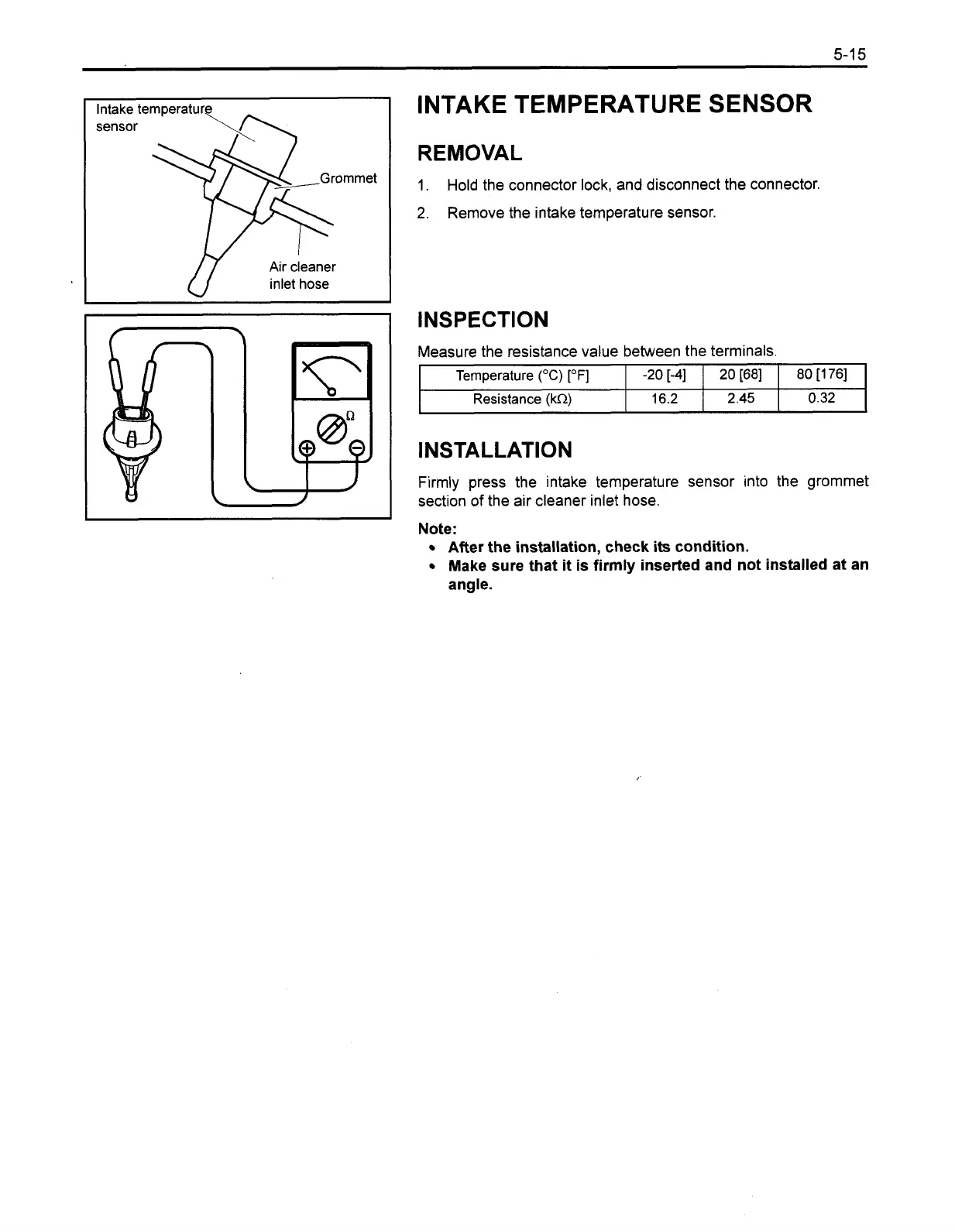

INTAKE TEMPERATURE SENSOR
REMOVAL
1. Hold the connector lock, and disconnect the connector.
2.
Remove the intake temperature sensor.
INSPECTION
INSTALLATION
Measure the resistance value between the terminals.
Firmly press the intake temperature sensor into the grommet
section of the air cleaner inlet hose.
Note:
After the installation, check its condition.
Make sure that it is firmly inserted and not installed at an
angle.
80 [I 761
0.32
Temperature (OC) [OF]
Resistance (kQ)
-20 [-41
16.2
20
[68]
2.45
4Y-E Repair
Section 1.1.5

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
