Toyota 8FGCU30 User Manual

1-281-28
INSPECTION·ADJUSTMENT

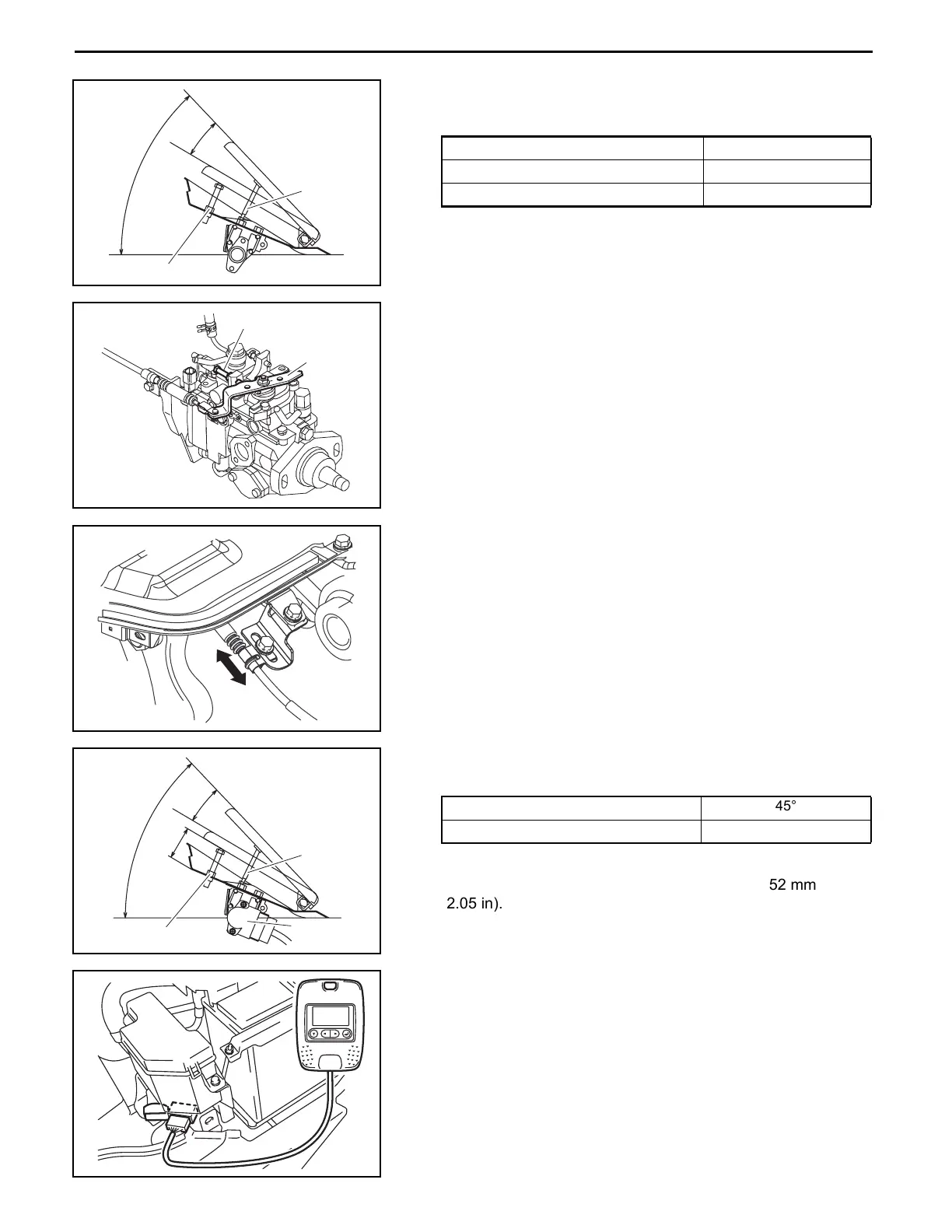

1. Inspect the angle of the accelerator pedal.
Adjust by adjusting the length of the rod.
2. 1DZ-II engine vehicles
Adjust the height of the stopper bolt on the floor side so that
the link contacts the stopper bolt on the engine side when the
pedal is depressed.
3. Adjust the accelerator wire so that there is about 2° of play in
the pedal.
4Y·Diesel Vehicle with Travel and Load Handling Control (OPT)
1. Inspect the angle of the accelerator pedal.
Adjust by adjusting the length of the rod.
2. Temporarily set the pedal stopper bolt height to 52 mm
(2.05 in).
3. Adjust the accelerator sensor.
(1) Connect the plug-in analyzer.
SST 09240-26600-71
For diesel vehicles with travel and load handling control
(OPT) use the multifunction display.
Note:
For an explanation on using the display, refer to the
multifunction display section.
A
B
Stopper bolt
Rod
1DZ-II
A: When the accelerator is OFF 45°
B: At full throttle (reference) 20°
Stopper bolt
Link
1DZ-II
engine vehicles
B
Stopper bolt
A
Accelerator
sensor
(
5
2
m
m
)
Rod
A: When the accelerator is OFF 45°
B: At full throttle (Reference) 16°
Engine
Section 1
Pn/Cu2·3: 45° Cu1: 39°
Pn/Cu2·3: 52mm (2.05 in)
Cu1: 32mm (1.26 in)
:

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
