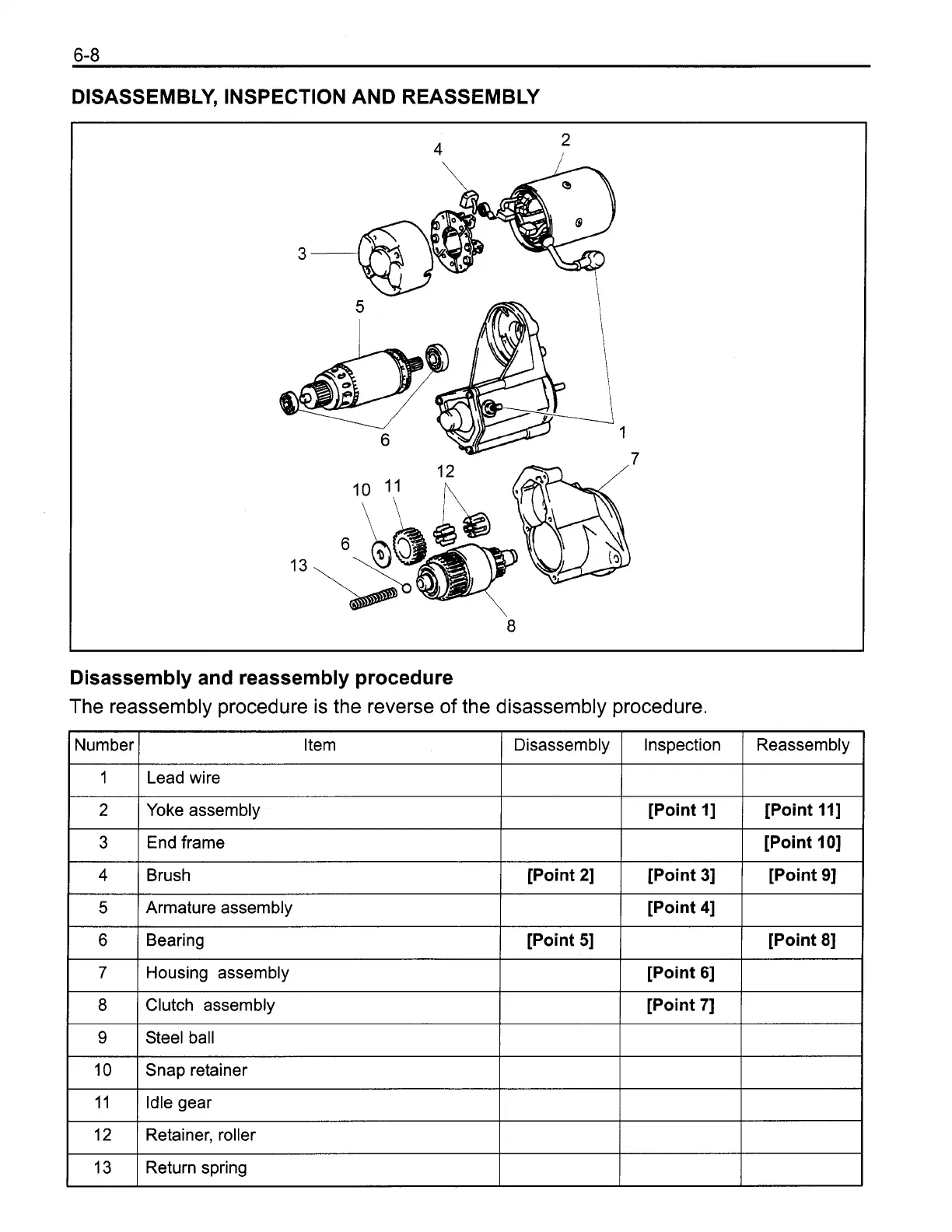

DISASSEMBLY, INSPECTION AND REASSEMBLY
Disassembly and reassembly procedure
The reassembly procedure is the reverse of the disassembly procedure.
Disassembly 1 Inspection I Reassembly
1 1 Lead wire
2 ( Yoke assembly 1 [Point I] / [Point 111
3 1 End frame
1 [Point 101
10
1 Snap retainer
4
5
6
7
8
9
Brush
Armature assembly
Bearing
Housing assembly
Clutch assembly
Steel ball
11
12
13
Idle gear
Retainer, roller
Return spring
[Point 21
[Point 51
[Point 31
[Point 41
[Point 61
[Point 71
[Point 91
[Point 81
1DZ-II Repair
Section 1.2.6

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
