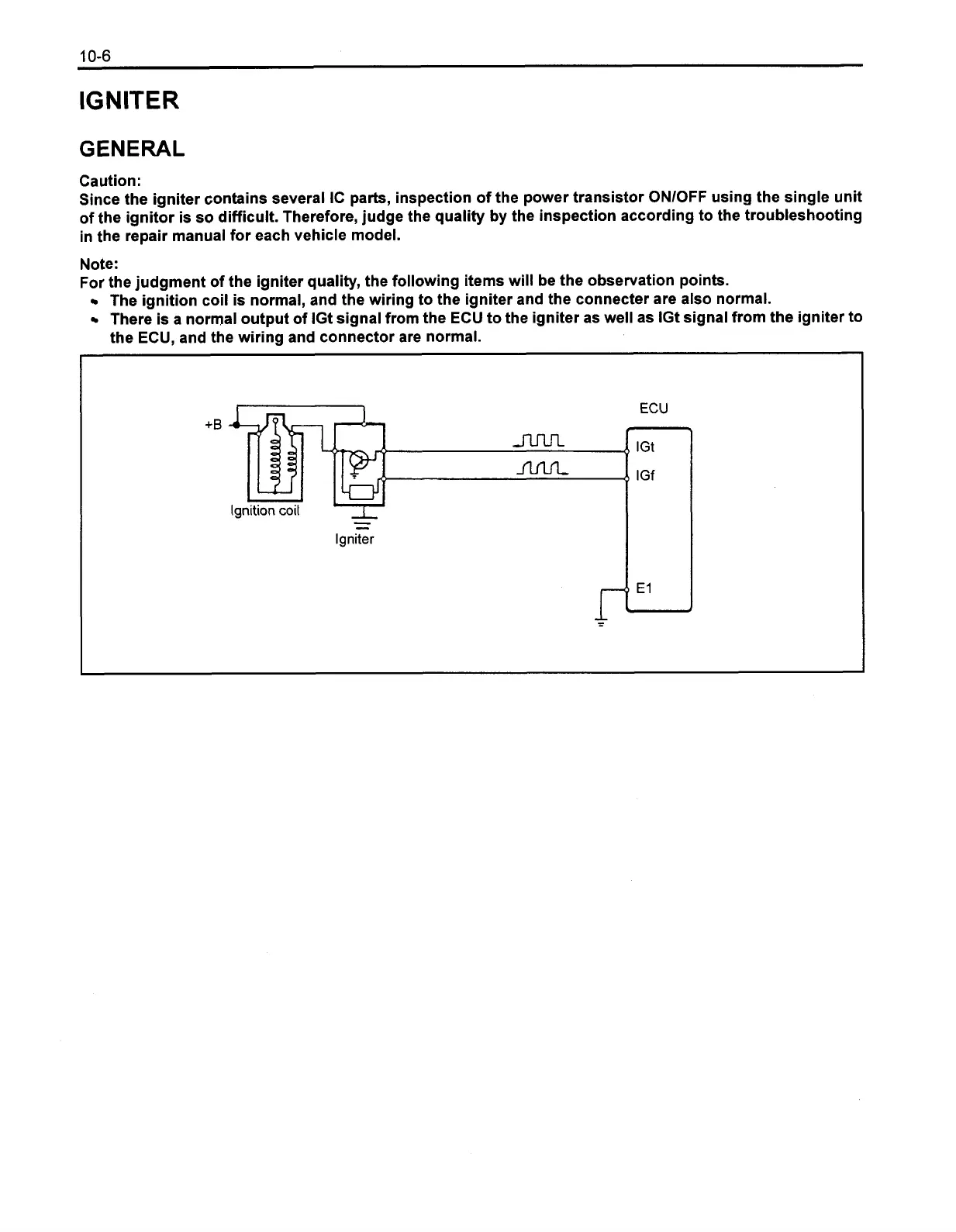

IGNITER
GENERAL
Caution:
Since the igniter contains several IC parts, inspection of the power transistor ONlOFF using the single unit
of the ignitor is so difficult. Therefore, judge the quality by the inspection according to the troubleshooting
in the repair manual for each vehicle model.
Note:
For the judgment of the igniter quality, the following items will be the observation points.
The ignition coil is normal, and the wiring to the igniter and the connecter are also normal.
There is a normal output of IGt signal from the ECU to the igniter as well as IGt signal from the igniter to
the ECU, and the wiring and connector are normal.
-
Igniter
ECU
4Y-E Repair
Section 1.1.10

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
