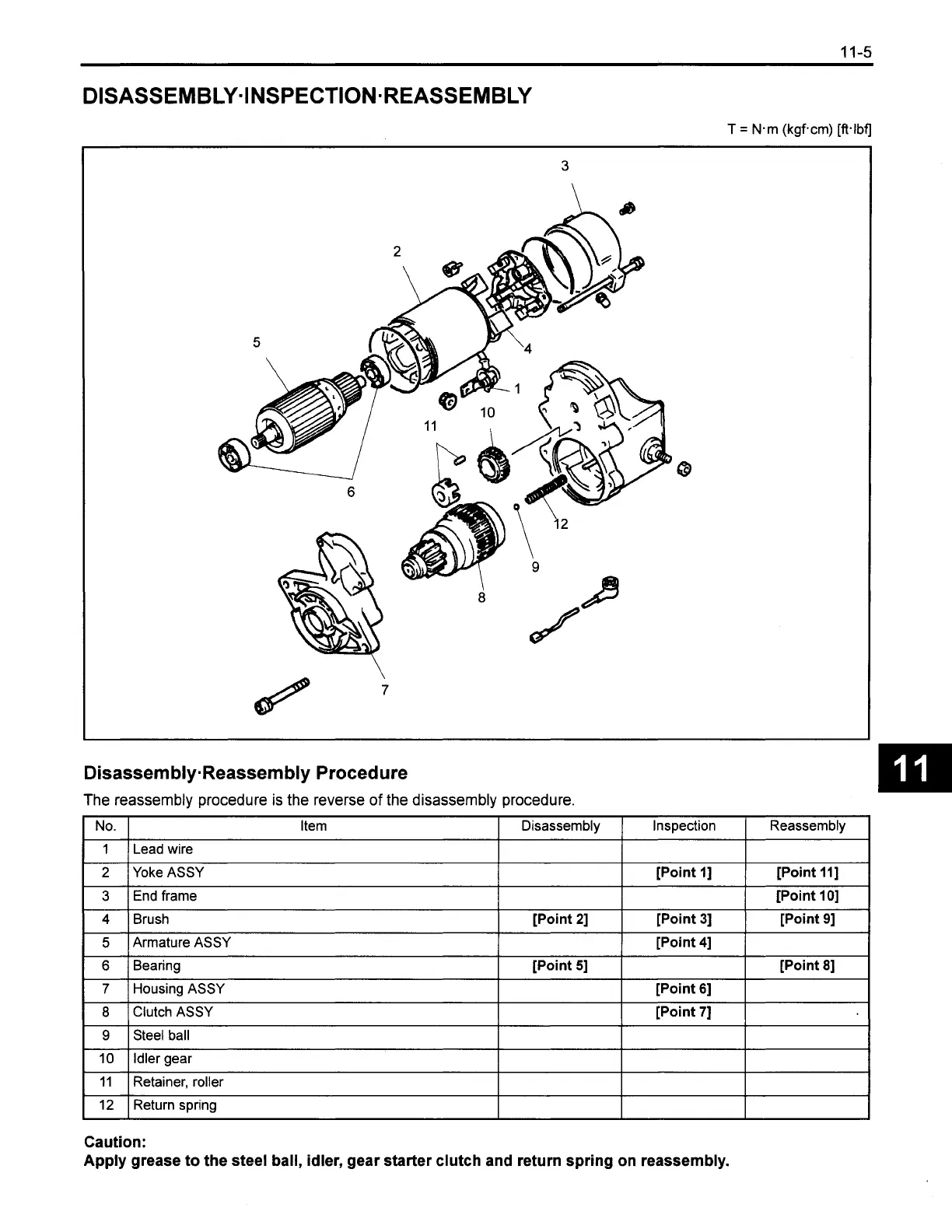

DISASSEMBLY-INSPECTION-REASSEMBLY
T = N.m (kgf cm) [ft.lbfl
Disassem bly-Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
1 2 /Yoke ASSY I I [Point I] I [Point 111
No.
1
Item
Lead wire
3
4
5
6
7
8
I 11 I Retainer, roller I I I
Disassembly
End frame
Brush
Armature ASSY
Bearing
9
10
1 12 1 Return spring I I I
Housing ASSY
Clutch ASSY
Steel ball
Idler gear
Caution:
Apply grease to the steel ball, idler, gear starter clutch and return spring on reassembly.
Inspection
[Point 21
[Point 51
[Point 61
[Point 71
Reassembly
[Point 31
[Point 41
[Point 101
[Point 91
[Point 81
4Y-E Repair
Section 1.1.11

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
