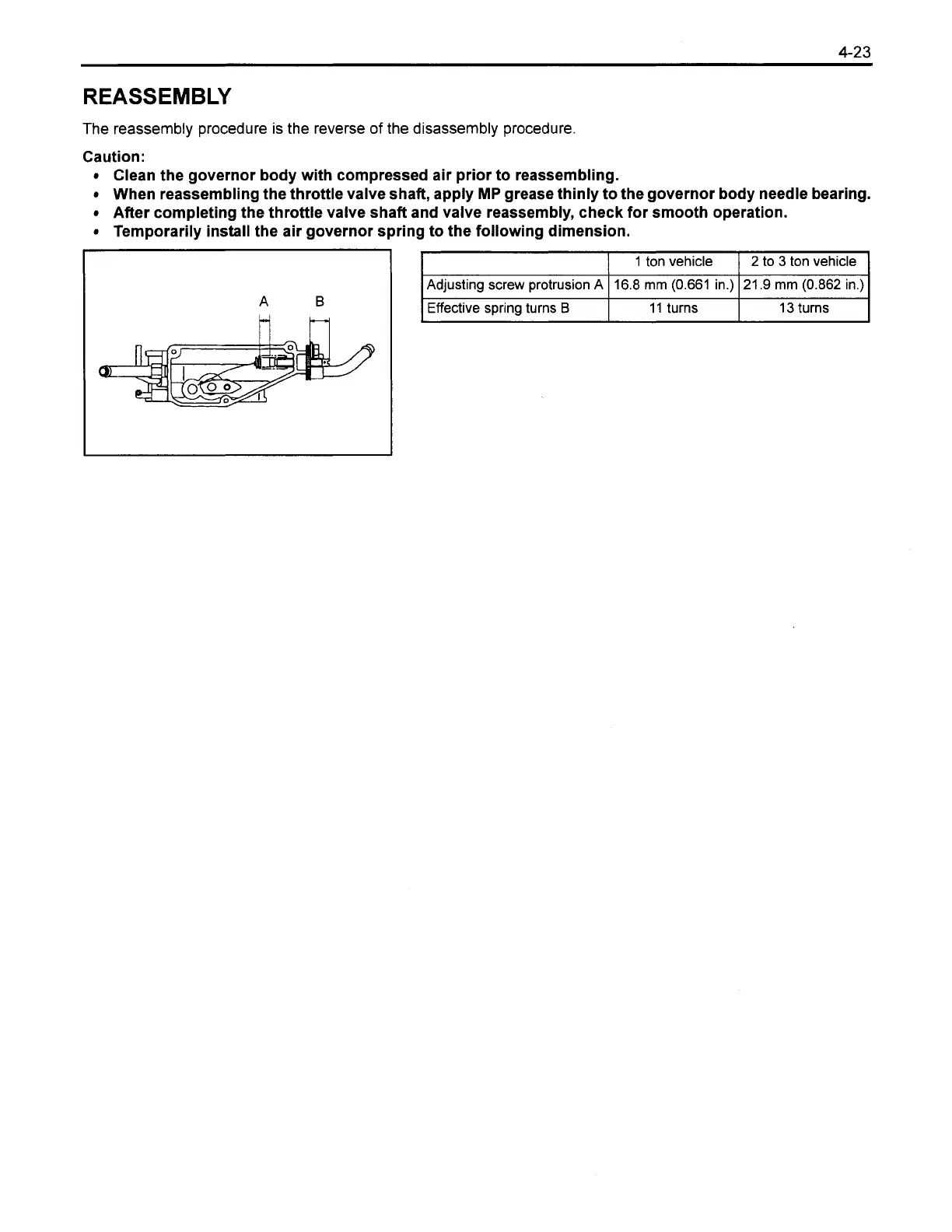

REASSEMBLY
The reassembly procedure is the reverse of the disassembly procedure
Caution:
Clean the governor body with compressed air prior to reassembling.
When reassembling the throttle valve shaft, apply MP grease thinly to the governor body needle bearing.
After completing the throttle valve shaft and valve reassembly, check for smooth operation.
Temporarily install the air governor spring to the following dimension.
I Effective spring turns B I 11 turns 1 13 turns I
Adjusting screw protrusion A
1 ton vehicle
16.8
mm (0.661 in.)
2 to 3 ton vehicle
21.9 mm (0.862 in.)
4Y-E Repair
Section 1.1.4

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
