Toyota 8FGCU30 User Manual

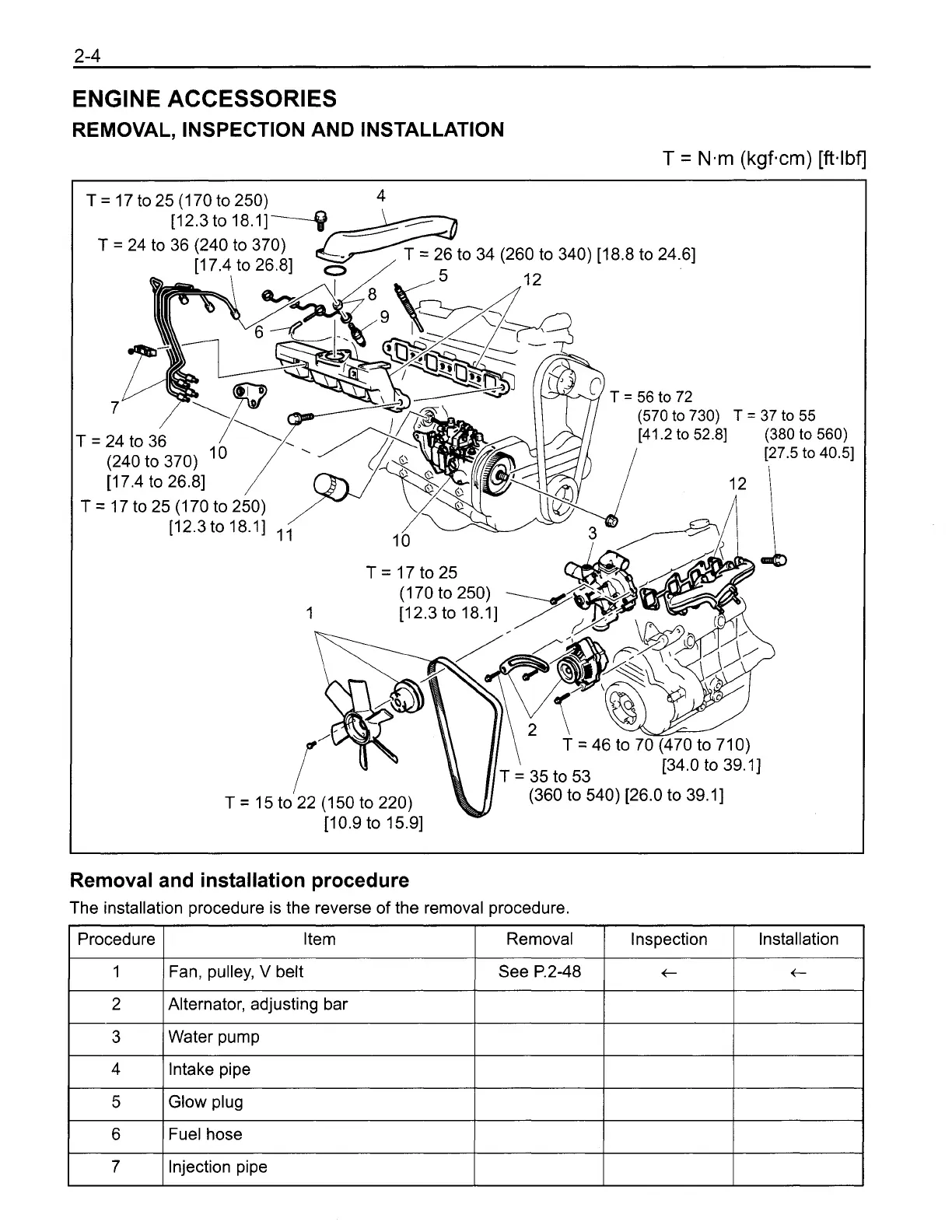

2-4
ENGINE ACCESSORIES
REMOVAL, INSPECTION AND INSTALLATION
Removal and installation procedure
The installation procedure is the reverse of the removal procedure.
I Procedure 1 1 Removal 1 Inspection Installation
1 1 1 Fan, pulley, V belt 1 See P.2-48 1 t
1 2 1 Alternator, adjusting bar
3
4
1 7 1 Injection pipe
Water pump
Intake pipe
5
6
Glow plug
Fuel hose
1DZ-II Repair
Section 1.2.2

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
