Unit Clearances, Curb Dimensions, and Dimensional
Data
OAK Units
Unit Clearances
Note: Certain options require auxiliary cabinet. Refer to
project-specific unit submittals.
WARNING
Combustible Materials!
Failure to maintain proper clearance between the unit
heat exchanger, vent surfaces and combustible
materials could cause a fire which could result in death
or serious injury or property damage. Refer to unit
nameplate and installation instructions for proper
clearances.
AVERTISSEMENT
Matériaux combustibles!
Tout manquement à l’obligation de maintenir une
distance appropriée entre l’échangeur de chaleur de
l’unité, les surfaces de ventilation et les matériaux
combustibles peut provoquer un incendie pouvant
résulter en des blessures corporelles graves, voire
mortelles, ou des dommages matériels. Reportez-vous
à la plaque signalétique de l’unité et aux instructions
d’installation pour connaître les distances appropriées.

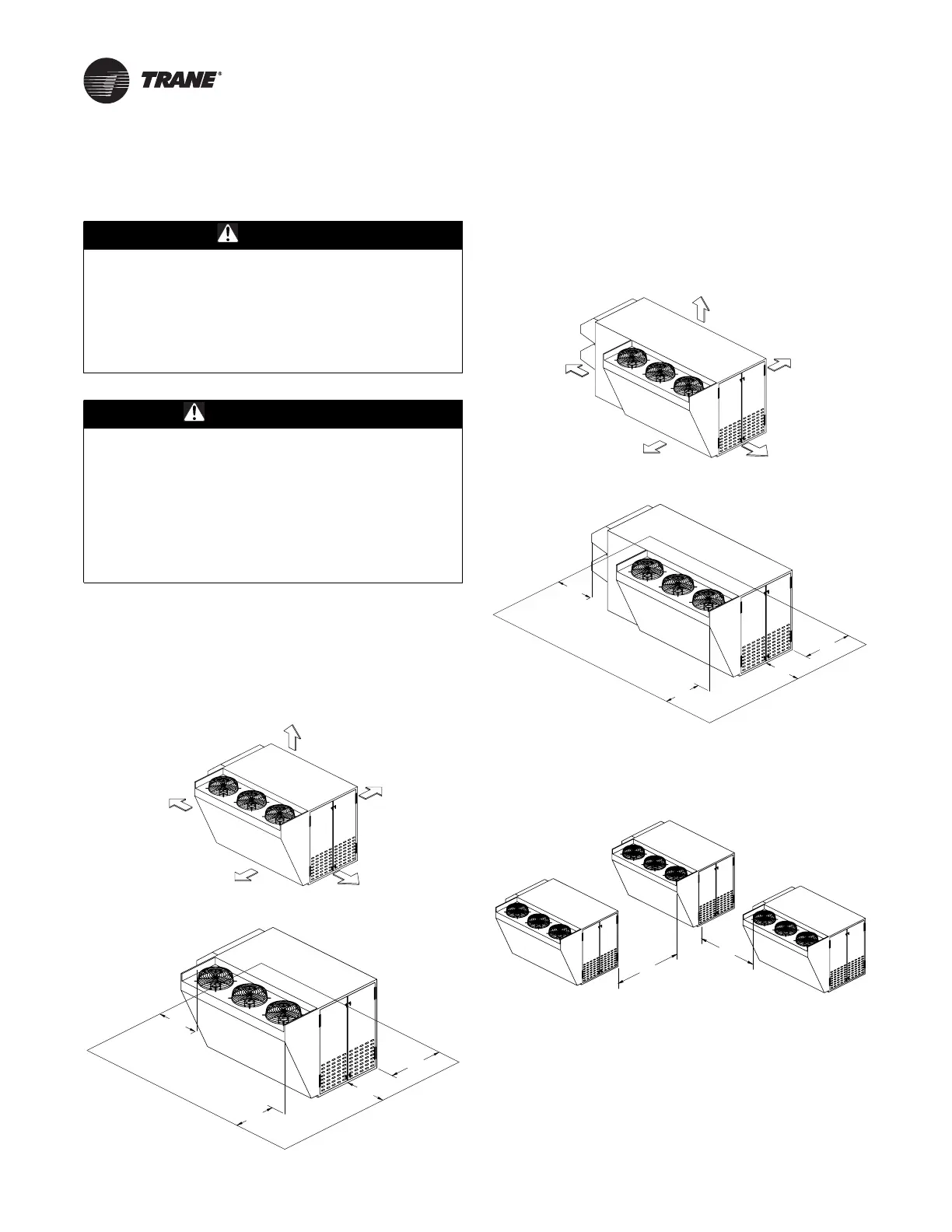

Figure 12. Typical installation clearances for OAK unit
CLEARANCE 36"CLEARANCE 60"
TOP OF UNIT 72"
CLEARANCE "
CLEARANCE FROM
CLEARANCE 48"
3'0"
3'0"
4'0"
'0"
Figure 13. Typical installation clearances for OAK unit
with auxiliary cabinet
Figure 14. Typical installation clearances for OAK unit
TOP OF UNIT 72"
"63 ECNARAELC"06 ECNARAELC
CLEARANCE "
CLEARANCE FROM
CLEARANCE 48"
3'0"
3'0"
4'0"
'0"
7'0"
6'0"
