Unit Clearances, Curb Dimensions, and Dimensional Data
OAU-SVX007A-EN 41
OAKE Units
Unit Clearances
Note: Certain options require auxiliary cabinet. Refer to
project-specific unit submittals.
Curb Dimensions

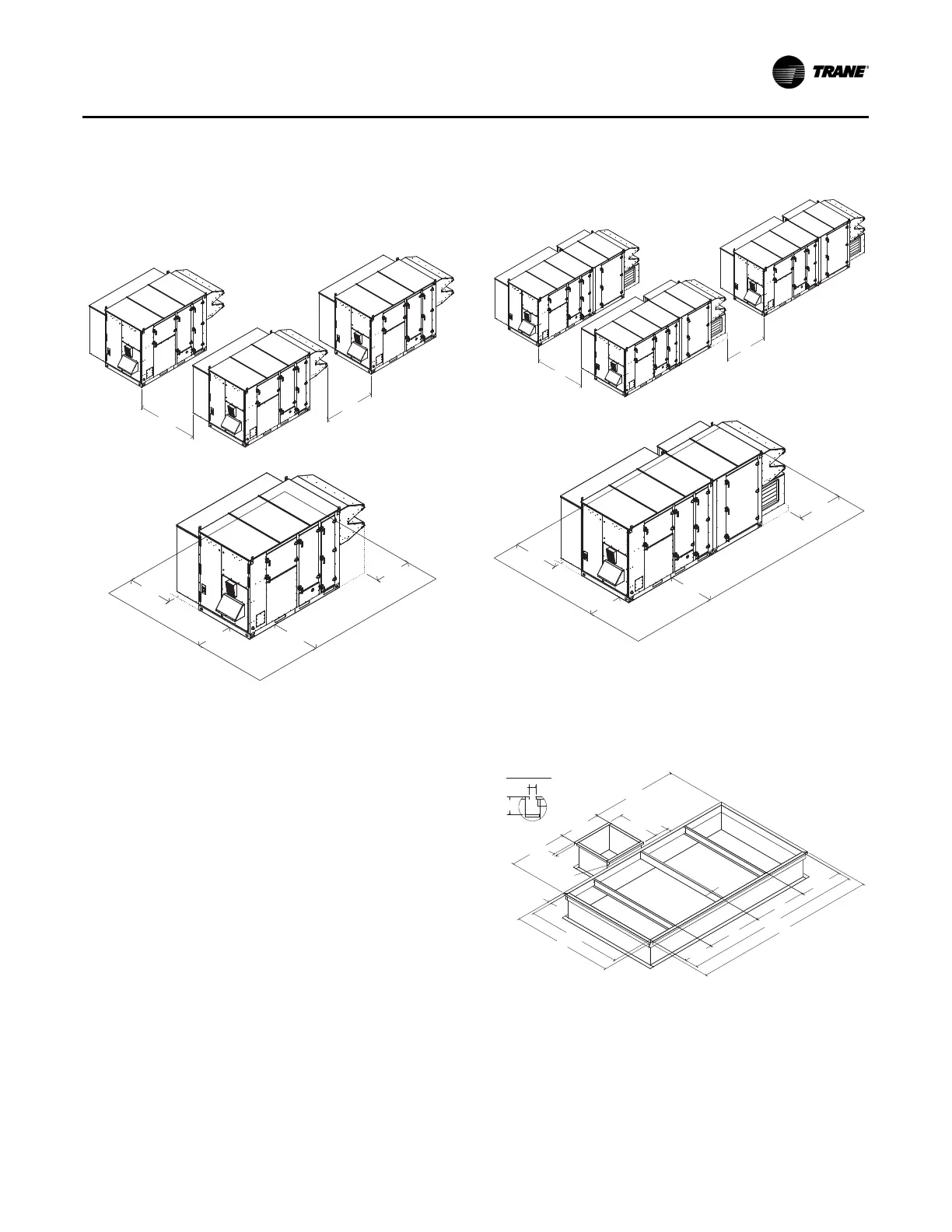

Figure 58. Typical installation clearances for OAKE unit
(in.)
84
72
48
48
36
48
Figure 59. Typical installation clearances for OAKE unit
with auxiliary cabinet (in.)
Figure 60. Unit curb data for OAKE 12–30 tons (in.)
72
84
48
48
36
48
SU
PPL
Y
R
ET
UR
N
GUTTER
GUTTER DETAIL
2½
6½
47¾
22½
31¾
1½
1¾
52½
56
22½
2½
1
TYP.
16¼
30
29
98½
102
23¼
