Trane Horizon OADG Series User Manual

Unit Clearances, Curb Dimensions, and Dimensional Data
OAU-SVX007A-EN 53

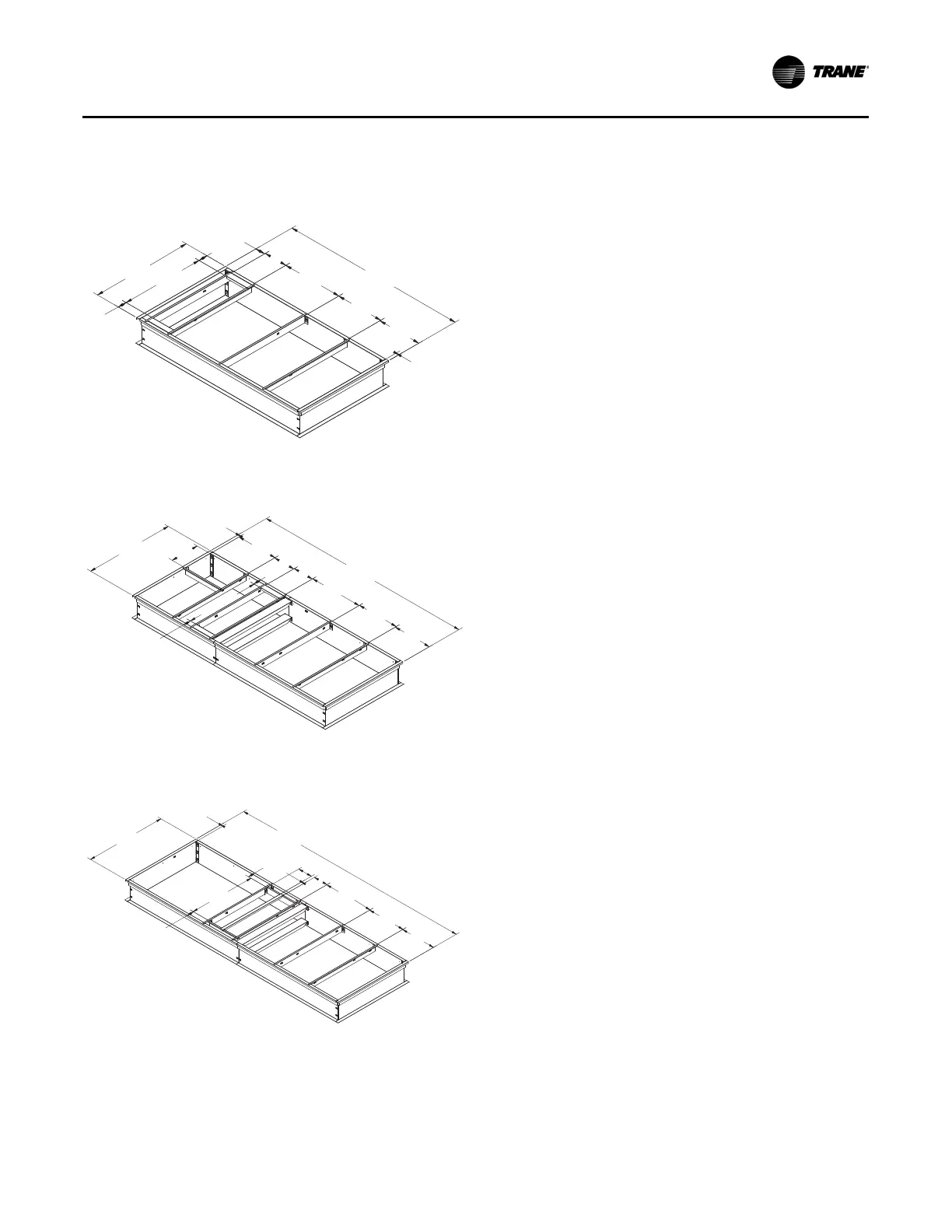

Curb Dimensions
Figure 86. Unit curb data for OAD cabinet with no
powered exhaust or ERV, in. (cm)
Figure 87. Unit curb data for OAD cabinet with powered
exhaust but no ERV, in. (cm)
Figure 88. Unit curb data for OAD cabinet with ERV, in.
(cm)
RETURN
SUPPLY
5
(12.7)
56
(142.2)
46
(116.8)
5
(12.7)
5.5
(14.0)
103
(261.6)
13
(33.0)
33.5
(85.1)
26.5
(67.3)
24.5
(62.2)
1.75 (4.4)
TOP FLANGE
56
(142.2)
18
(45.7)
1.75 (4.4)
TOP FLANGE
138.875
(352.7)
26
(66.0)
5
(12.7)
5
(12.7)
13.75
(34.9)
13
(33.0)
33.5
(85.1)
26.5
(67.3)
24.5
(62.2)
46 (116.8)
RETURN
SUPPLY
EXHAUST
1.75 (4.4)
TOP FLANGE
56
(142.2)
5
(12.7)
46
(116.8)
5
(12.7)
10
(25.4)
2
(5.1)
169
(429.3)
10
(25.4)
34.5
(87.6)
26.5
(67.3)
24.5
(62.2)
EXHAUST
RETURN
SUPPLY
