Installation
78 OAU-SVX007A-EN
Field Installed Power Wiring
An overall dimensional layout for the standard field installed
wiring entrance into the unit is illustrated in . To ensure that the
unit’s supply power wiring is properly sized and installed, refer
to the following guidelines.
Note: All field installed wiring must conform to NEC
guidelines as well as State and Local codes.

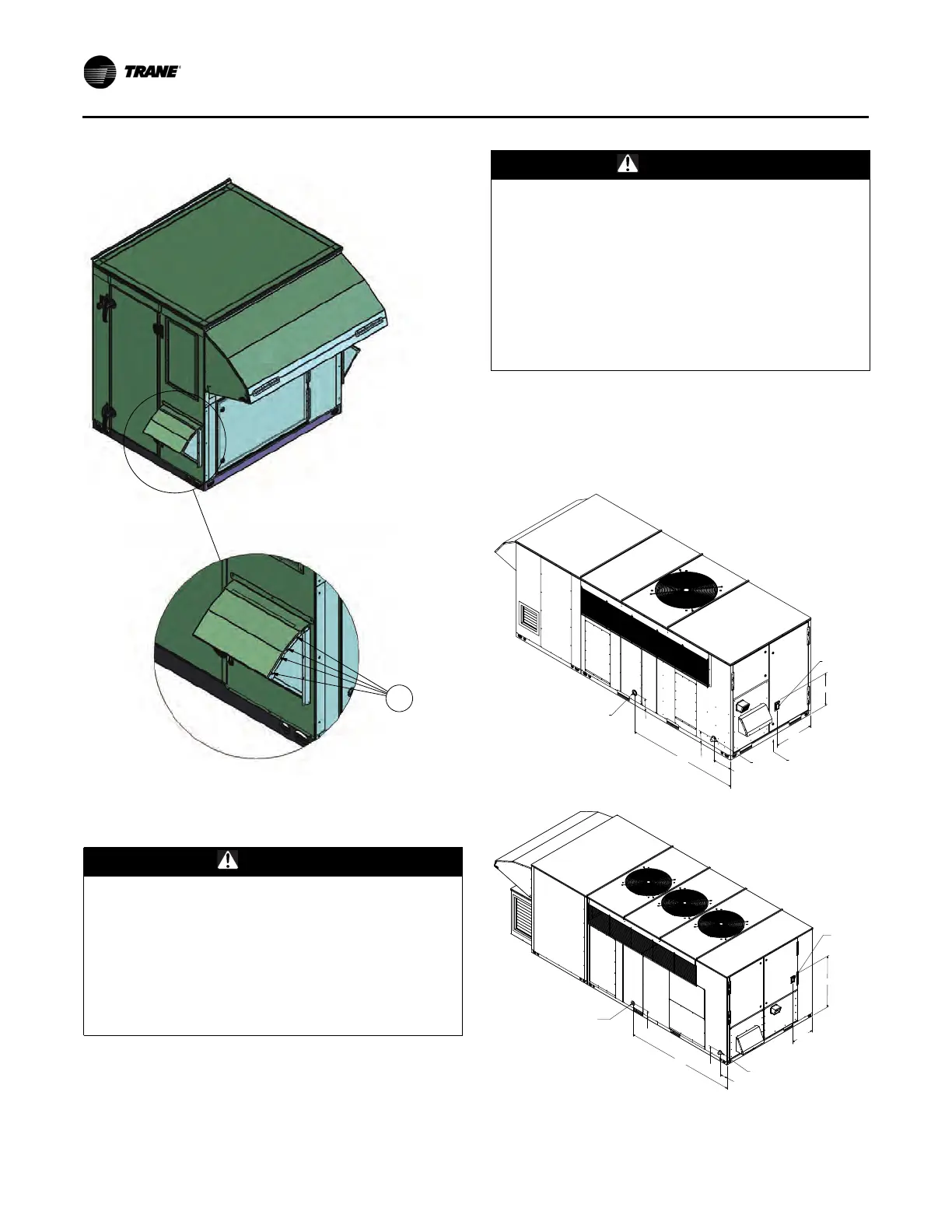

Figure 121. Powered exhaust damper hood, open
WARNING
Proper Field Wiring and Grounding
Required!
Failure to follow code could result in death or serious
injury. All field wiring MUST be performed by qualified
personnel. Improperly installed and grounded field
wiring poses FIRE and ELECTROCUTION hazards. To
avoid these hazards, you MUST follow requirements for
field wiring installation and grounding as described in
NEC and your local/state/national electrical codes.
'(7$,/%
6&$/(
WKH
SHU
KH
KH
WKH
DO
JK
QG
ATTENTION
Câblage et Mise à la Terre Appropriés
Champs Obligatoires!
Le non-respect du code pourrait entraîner la mort ou
grave blessure. Tout le câblage sur le terrain DOIT être
effectué par des personnes qualifiées personnel.
Terrain mal installé et mis à la terre le câblage pose des
risques de FIRE et d’ÉLECTROCUTION. À evitez ces
risques, vous devez suivre les exigences pour
l’installation et la mise à la terre du câblage de terrain
comme décrit dans NEC et vos codes électriques
locaux/étatiques/nationaux.
Figure 122. OAB and OAG utility connections
(/(&75,&
',6&211(&7
6:,7&+
*$6,1/(7
037
&21'(16$7(
'5$,1
)37
7+528*+%$6(
(/(&75,&
OAB utility
connections
GAS INLET
1-1/4" MPT
CONDENSATE
DRAIN
1/2" FPT
ELECTRIC
DISCONNECT
SWITCH
81.248
5.512
17.253
38.346
6.000
6.830
KCC
International Inc.
OAG utility
connections
