Unit Weight and Rigging
68 OAU-SVX007A-EN
Before proceeding, refer to tables in Unit Weight section for
typical unit operating weights and Figure 105, p. 67 for rigging
drawing.
1. Remove the shipping crate from around the unit.
2. Rig the unit as shown in Figure 105, p. 67. Attach
adequate strength lifting slings to all four lifting brackets in
the unit base rail. Do not use cables, chains, or slings
except as shown.
3. Install a lifting bar, as shown in Figure 105, p. 67, to protect
the unit and to facilitate a uniform lift. The minimum
distance between the lifting hook and the top of the unit
should be 7 feet.
4. Test-lift the unit to ensure it is properly rigged and
balanced, make any necessary rigging adjustments.
5. Lift the unit and position it into place. Remove fork pockets
prior to setting on the curb.
6. Downflow units; align the base rail of the unit with the curb
rail while lowering the unit onto the curb. Make sure that the
gasket on the curb is not damaged while positioning the
unit.
Unit Weight

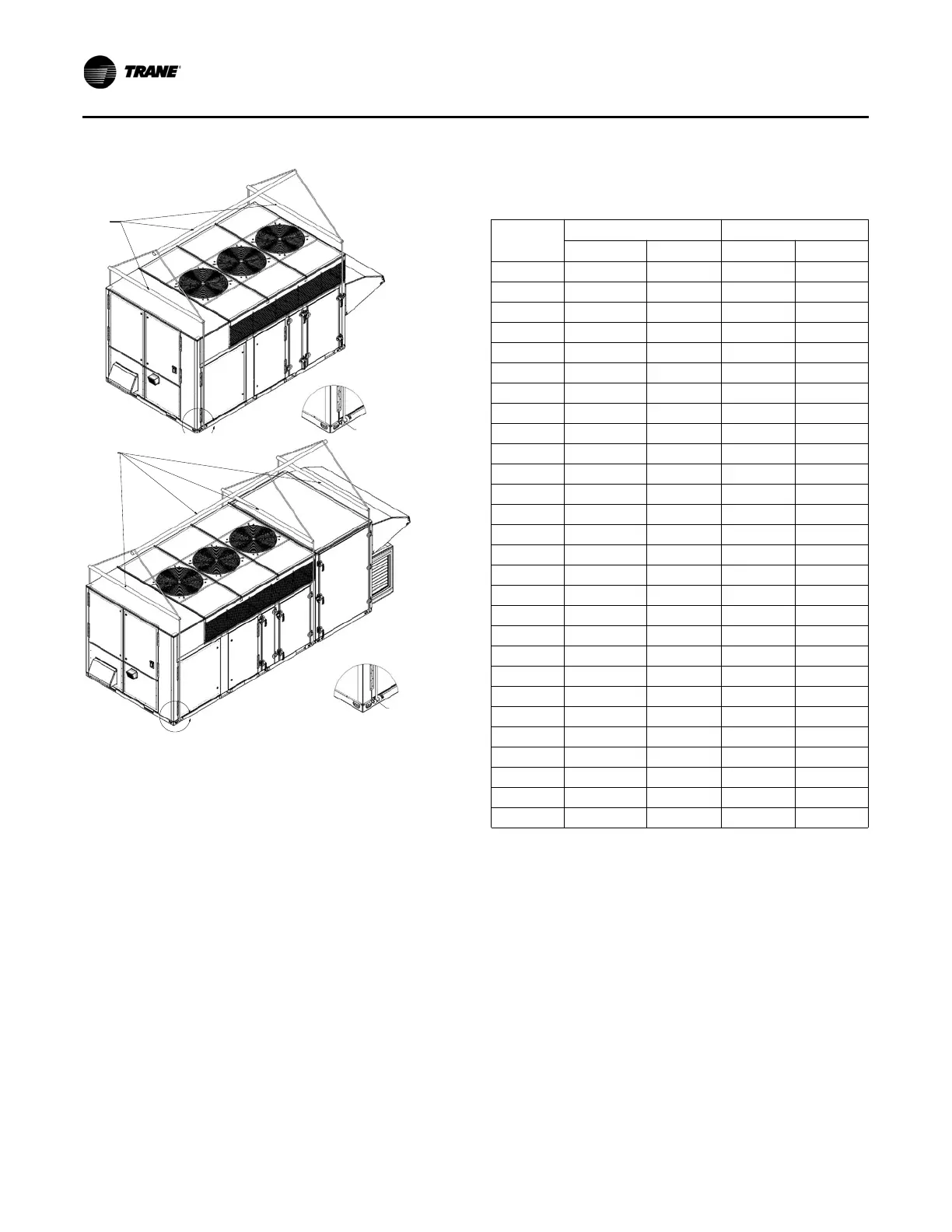

Figure 105. Rigging and center-of-gravity data
SPREADER
BARS
A
DETAIL A
SCALE 1 : 12
SCREW PIN SHACKLE
KCC
International Inc.
4-point lift
Model: OAG
KCC
International Inc.
A
SPREADER
BARS
SCALE 1 : 12
DETAIL A
SCREW PIN SHACKLE
4 LOCATIONS
6-point lift
Model: OAG
Table 4. Typical unit weights—units without auxiliary
cabinet
Model
Number
Operating Weight (lb) Shipping Weight (lb)
Min Max Min Max
OABE036* 1172 1356 1420 1604
OABE048* 1189 1373 1437 1621
OABE060* 1189 1373 1437 1621
OABE072* 1237 1421 1485 1669
OABE084* 1237 1421 1485 1669
OABE096* 1269 1453 1517 1701
OABE108* 1313 1497 1561 1745
OAGE120* 2456 2964 2456 2964
OAGE144* 2506 3014 2506 3014
OAGE180* 2512 3021 2512 3021
OAGE210* 2676 3184 2676 3184
OAGE240* 2752 3278 2752 3278
OAGE264* 2788 3314 2788 3314
OAGE300* 2908 3444 2908 3444
OAGE360* 2930 3466 2930 3466
OAKE144* 2685 3350 2685 3350
OAKE180* 2521 3186 2521 3186
OAKE210* 2803 3620 2803 3620
OAKE240* 2831 3648 2831 3648
OAKE264* 2831 3648 2831 3648
OAKE300* 2835 3695 2835 3695
OAKE360* 2909 3769 2909 3769
OANE360* 4631 5614 4631 5614
OANE420* 4946 5929 4946 5929
OANE480* 5039 6051 5039 6051
OANE540* 5106 6063 5106 6063
OANE600* 5270 6352 5270 6352
OANE648* 5282 6364 5282 6364
Note: Minimum and maximum weights vary widely due to the highly configurable
nature of the product.
