10 BAS-SVX50F-EN
Introduction
Screen Overview
There are three distinct areas on the TD7 screens:
• Top display area
• Main display area
• Bottom display area

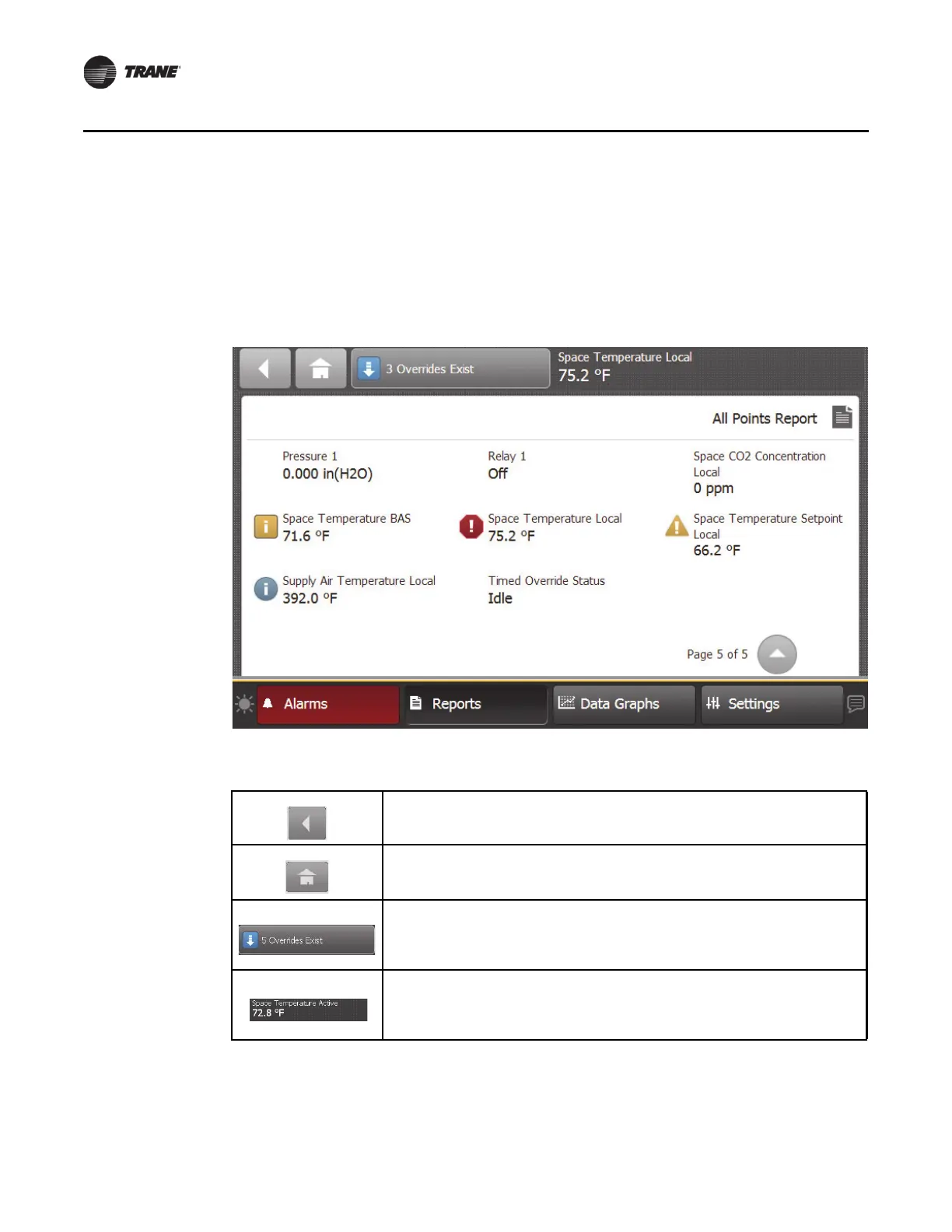

Figure 1. Tracer TD7 display screen
Main display area
Top display area
Bottom display area
Top Display Area
The Back button, when touched, returns to the previous screen visited.
The Home button, when touched, navigates to the All Points Report by default. Home Can
be configured to display any of the three custom reports, All Points Report, All Points in
Override Report, Alarms, or custom graphic. See “Display Preferences,” p. 43.
The Overrides Summary button provides an at-a-glance view of how many user overrides
exist and provides a link to the Override Summary report. Only overrides at priority level
8 Manual Operator can be created or released from the TD7 display.
The Header Data Point is a user-defined data point that will appear at the top portion of
each TD7 screen. This value can be the present value of any point in the UC600. See
“Header Data Point,” p. 44.
Main Display Area
This area serves as the main task area in which you can view custom graphics, create reports, view
and take action on alarms, and view or change display settings.
