BAS-SVX50F-EN 49
Settings
Clean Touchscreen
Touch the Clean Touchscreen button to safely clean the TD7 touchscreen using any brand of
common household glass cleaner. When this button is touched, the screen background color
becomes black, allowing dirt and fingerprints to become more visible. It also displays a countdown
timer (five to zero seconds).Touch the screen anytime within the 5-second countdown to begin
cleaning the screen (each touch resets the 5-second countdown).
Security Settings
If security is enabled, the Log In (or Log Out) button appear in the upper right portion under Security
Settings.
Note: If the UC600 is connected using a USB cable, security for the TD7 is not enabled. Users are
stil
l prompted to enter a PIN; however, any combination of four numbers will be accepted
allowing users to “log in.”
Log In
Touch the Log In button to open the associated screen. Follow the procedure below to log in to the
TD7 display.
1. Touch the button labeled with your user name.

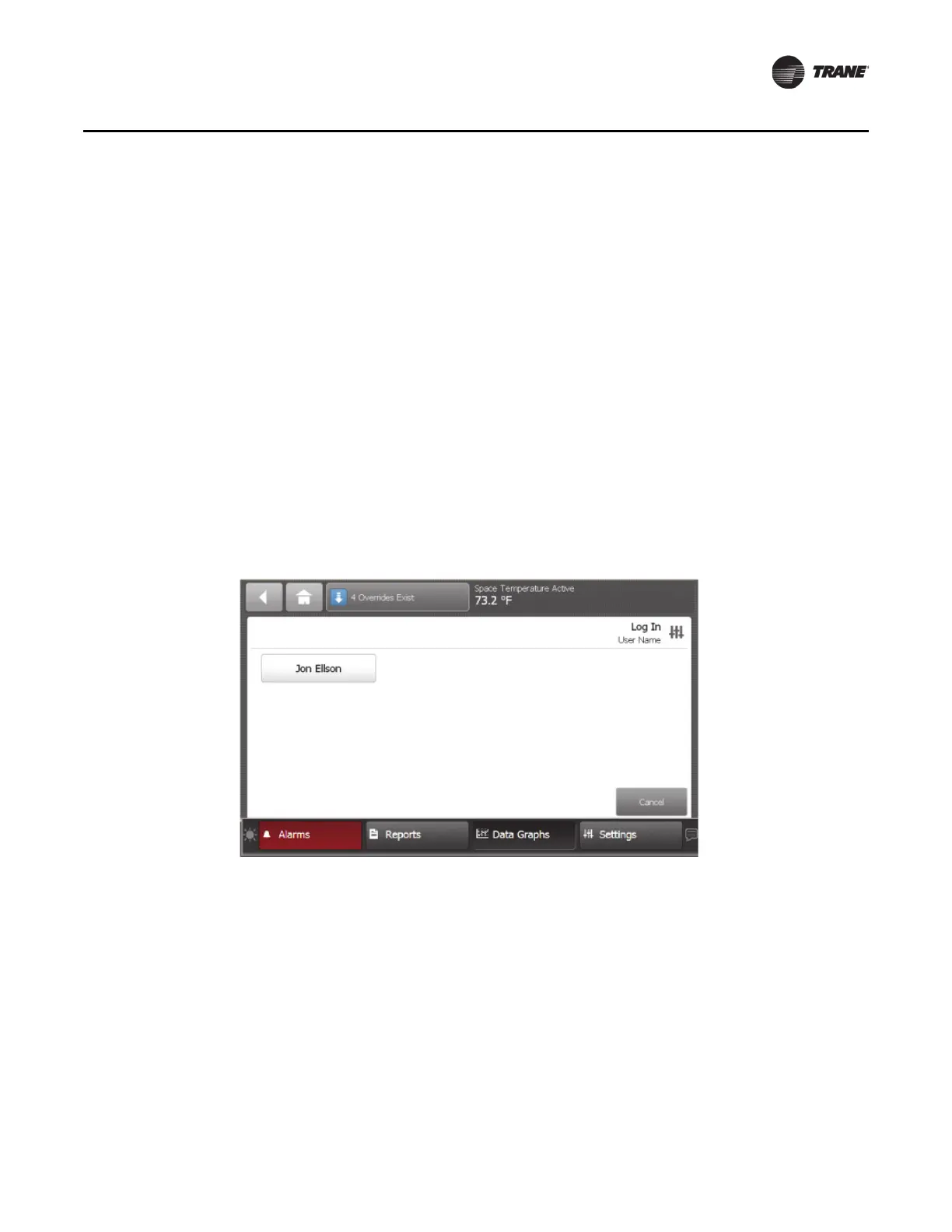

Figure 41. Log In screen (select user)
2. Click Next. The
PIN Entry Screen opens (Figure 42, p. 50).
3. Use the keypad to enter yo
ur PIN, then touch Log In.
To Next Page
