Reports
Controller Build Part Number
This is the firmware version that is currently running on the controller. Firmware is similar to an
operating system on a PC.
Controller Backup Firmware
The firmware that runs when the controller is in service mode. The primary function of this
firmware is to provide a minimal boot of the controller so that a new controller build can be loaded
on the controller should it be necessary.
Display Software Build
This is the version of the application code or operating system that is running on the TD7 display.
Display Boot Code
The application that starts the operating system when the TD7 is powered on.
Expansion Modules
Touch the Expansion Module button to view the Expansion Modules screen. If expansion modules
have been installed, they will appear in Expansion Modules screen (Figure 22).

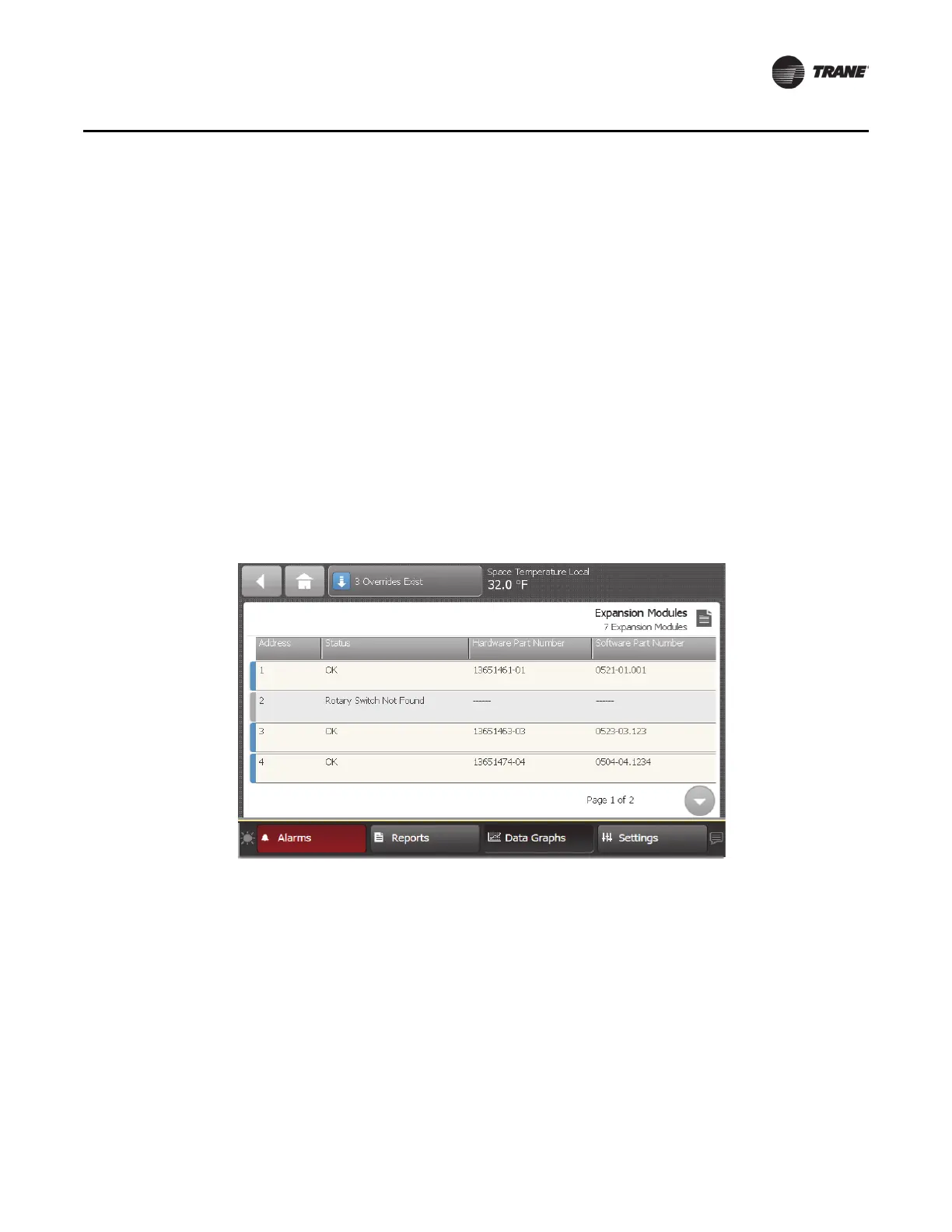

Figure 22. Expansion modules screen
Expansion module screen columns:
Address — This is the rotary address of the defined or discovered expansion module.
Status — Under no
rmal conditions, OK will display in this column. If not refer to “Tracer XM30,
XM32, and XM70 Expansion Modules IOM,” BAS-SVX46B-EN.
Hardware part number — This
is the part number for the expansion module.
Software part number — This is the versi
on number of the software running in the expansion
module.
