Reports
You can use the Tracer TD7 Display to view a variety of reports and create and edit custom reports.
Touch the Reports butto
n in the bottom display area to view the Reports screen. The Reports screen
contains the following buttons:
•Custom Graphics
• Custom Report 1
• Custom Report 2
• Custom Report 3
• Override Summary
• All Points Report
• About
• Expansion Modules
• TGP2 Programs

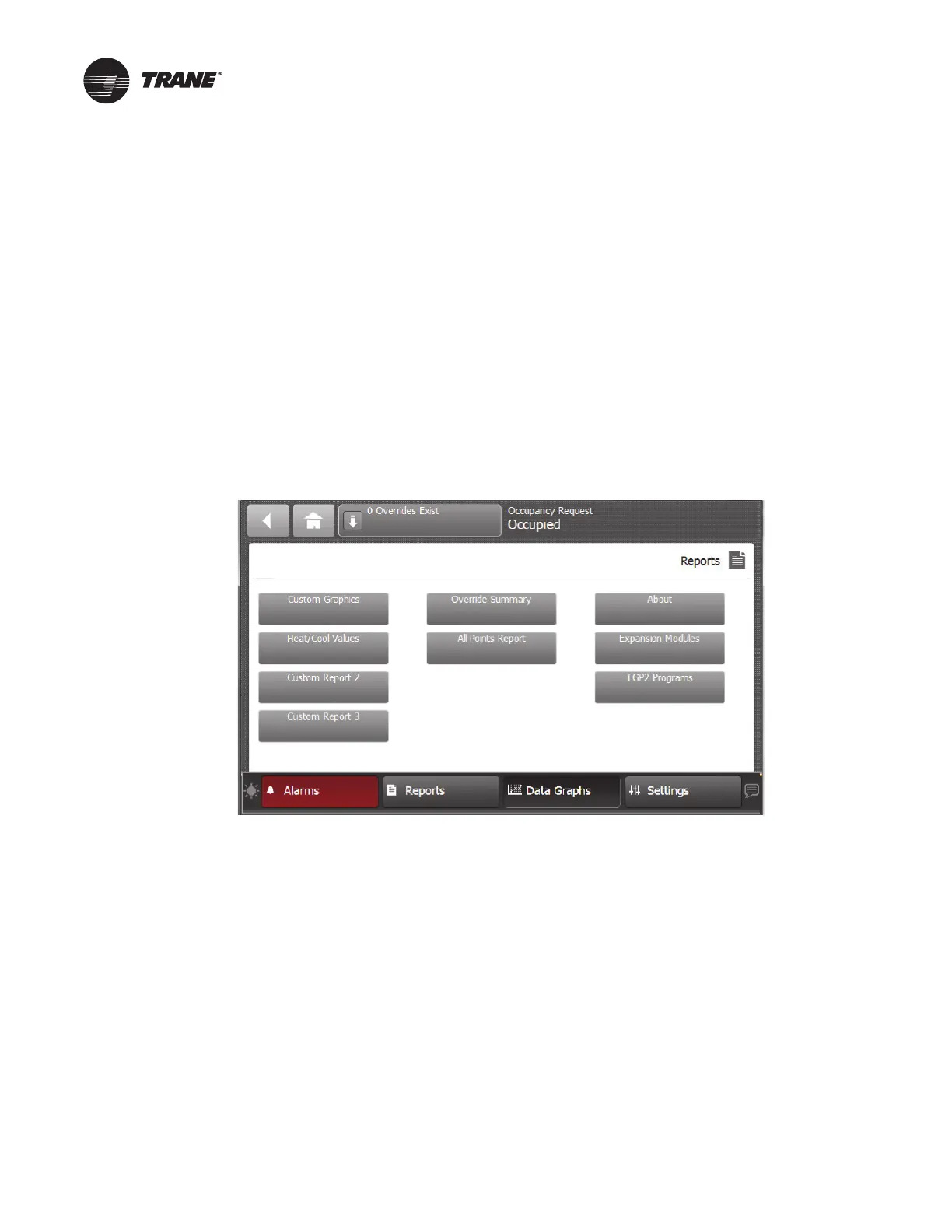

Figure 12. Reports screen
Custom Graphics
The Tracer TD7 Display supports a maximum of 10 custom graphics. Custom graphics are created
and loaded using Tracer Graphics Editor (TGE). See the TGE online help for more information.
Standard graphics are available in the most recent Pre-Packaged Solutions (PPS) library.
Graphics in TD7 allow you to:
• Display the value of any po
int on the controller
• Display animations items such as fans and damp
ers
• Perform overrides
• Assign a graphic as your home page
• Link to the Alarms page
• Link to a schedule
• Link to the All Points Repo
rt and
Custom Reports
• Link to another graphic
