Reports
Accessing a Graphic
1. Navigate to the Reports screen, then touch Custom Graphics. The Custom Graphics screen
appears (Figure 13). Each button on the screen represents a custom graphic. Custom graphics
are published
to the UC600 using Tracer Graphics Editor (TGE) in Tracer TU (Version 8.1 or
higher).

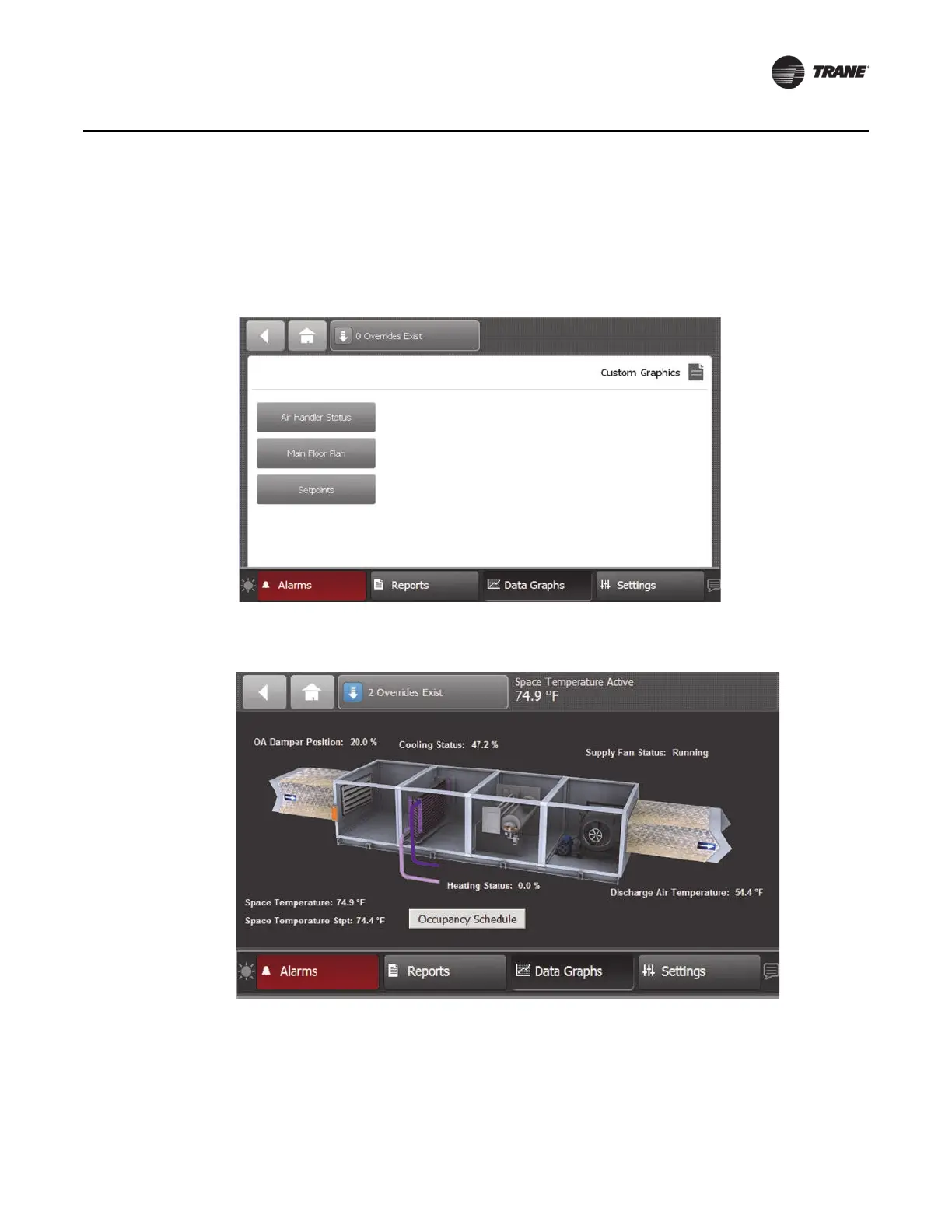

Figure 13. Custom graphic screen (example)
2. Touch the preferred graphic. The selected graphic appears (Figure 14).
Figure 14. Example graphic in TD7
Note: Graphics support on the TD7 Display requires Tracer UC600 Version 3.0 or higher.
Graphics Best Practices
The UC600 limits files to 2 megabytes (MBs). Therefore, each graphic file cannot exceed 2 MBs.
Graphic files smaller than 2 MBs will result in faster controller performance and graphic loading
time.
