Figure 26. Multistate override screen (five or more states)
BAS-SVX50F-EN 37
Overrides
Analog Overrides
The Analog Override screen contains up and down arrows in the Override setting area, as well as
a keypad icon that when touched, opens the Analog Keypad.
Use the up and down arrow buttons to select a value. Touch the Apply or Save butt
on to retain your
changes. To manually enter a value, touch the keypad icon.

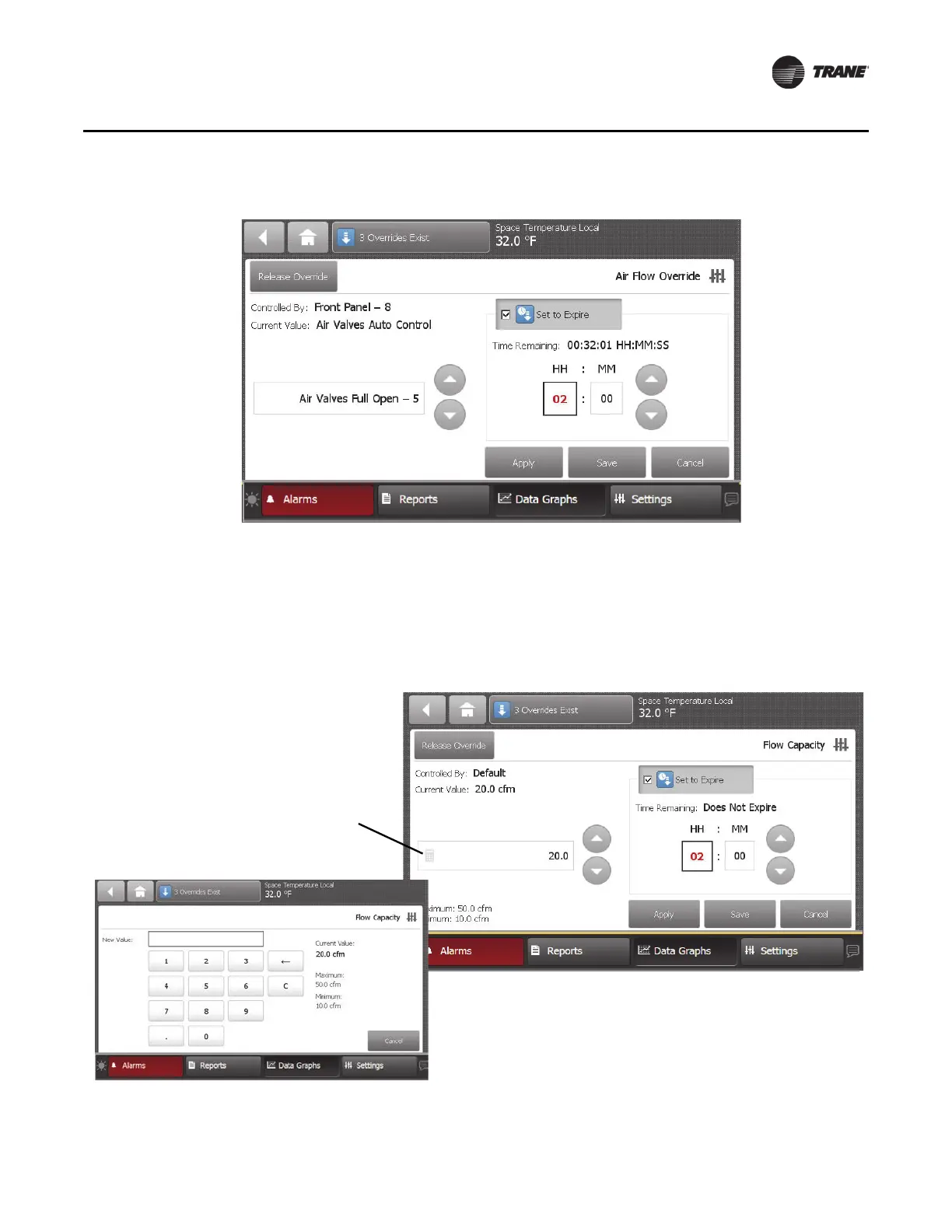

Figure 27. Displaying the analog keypad screen
Keypad Icon
Touch the keypad icon to open the Analog
keypad screen. 

Enter a value by tapping the numerals on the
keypad. Touch Enter to save and return to the
Override screen.
Analog Keypad Screen
