TVS NTORQ 125 User Manual

58
BRAKES

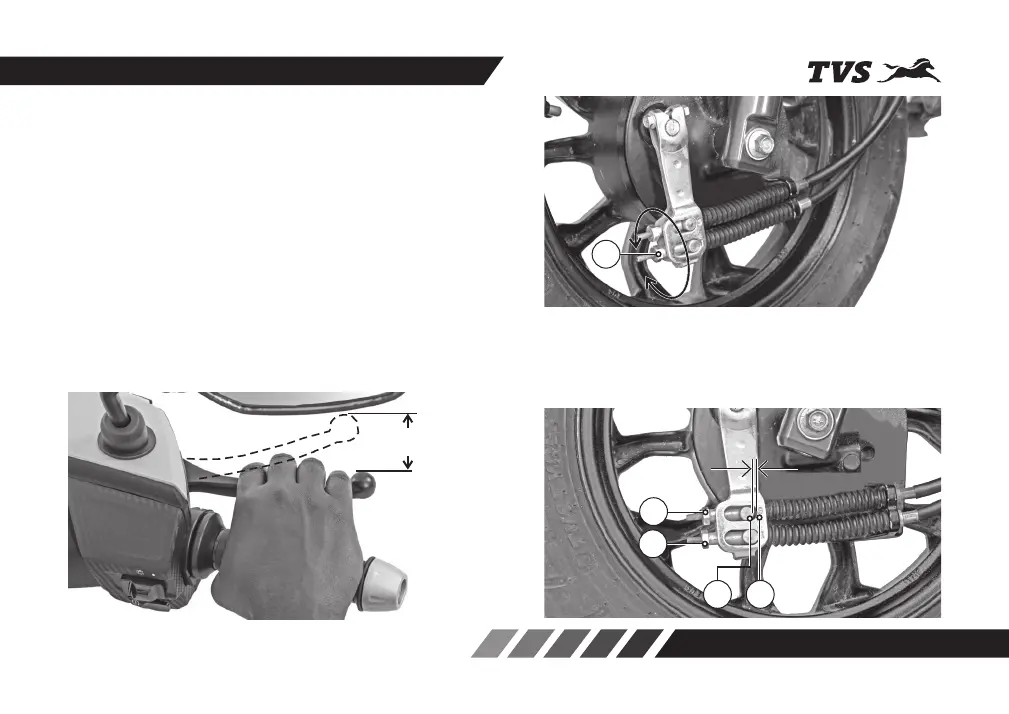

Front brake - Drum SBS type
1. Measure the free play of the front brake lever at
lever end as shown in the figure.
2. The free play of the lever before the engagement
of brake should be between 15 ~ 20 mm.
3. Turn the adjuster nut at the bottom side (1) in
the slot marked as “I” in clockwise direction
for reducing the free play or in anti-clockwise
direction for increasing the free play.
4. After obtaining the necessary free play, inspect
for the clearance between the bullet (3) and slot
end (4) marked as “S” as shown in the figure.
15 ~ 20 mm
5. If any clearance is found, turn the adjuster nut
(2) at the top side in the slot marked as “S” in
clockwise direction until there is no clearance
between the bullet top (3) and the slot top (4).
1
43
ClearanceClearance
1
2
