64
2. The arrow mark on the tyre should match the
actual direction of rotation of wheel (both front
and rear wheels).
Tyre puncture
Your scooter is fitted with a tubeless tyre on both
front and rear wheel. Incase of any puncture /
tyre damage, it is advised to visit the nearest tyre
manufacturer Dealer or the tyre repair shops who
knows the repairing method of tubeless tyre.
It is not necessary to remove the tyre from wheel
rim always to attend a puncture, Even though it there
is need of tyre removal, it is strongly recommended
to use a tyre removal / fitment machine. If at all,
tyre levers needs to be used, the levers should be
free from sharp edges. Care should be taken not to
damage the tyres and rims.

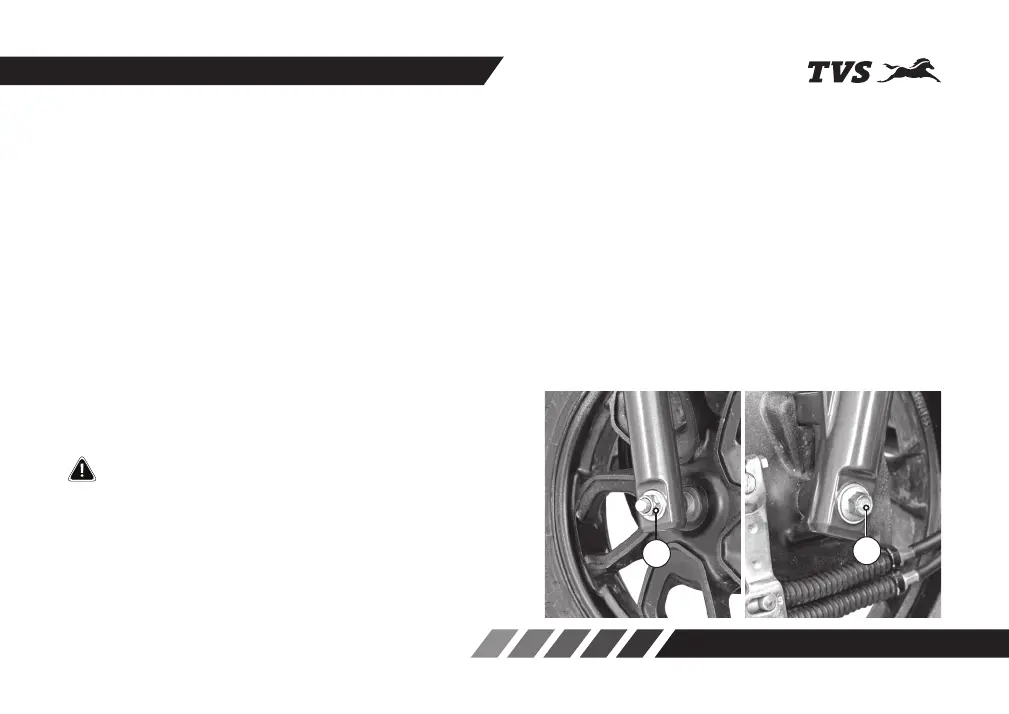

FRONT WHEEL REMOVAL AND REASSEMBLY
Drum brake
1. Remove the axle nut (1) along with a washer.
2. Pull out the axle (2) along with a washer and take
out a spacer from the right side of the wheel.
3. Place a support below the foot board to prevent
the vehicle from falling and lift the vehicle up.
4. Dislocate the wheel assembly along with brake
the panel from front fork. Separate the brake
panel from the wheel and take out the wheel.
5. Reverse the procedure for reassembling. While
reassembling ensure to locate the lug on fork leg
L to the slot in the brake panel.
1
2
The side walls of the tubeless tyre which in contact with
the wheel rim are only seals the air inside the wheel
assembly. Hence care should be taken not to damage
the side walls of the tyres during removal / reassembly.
