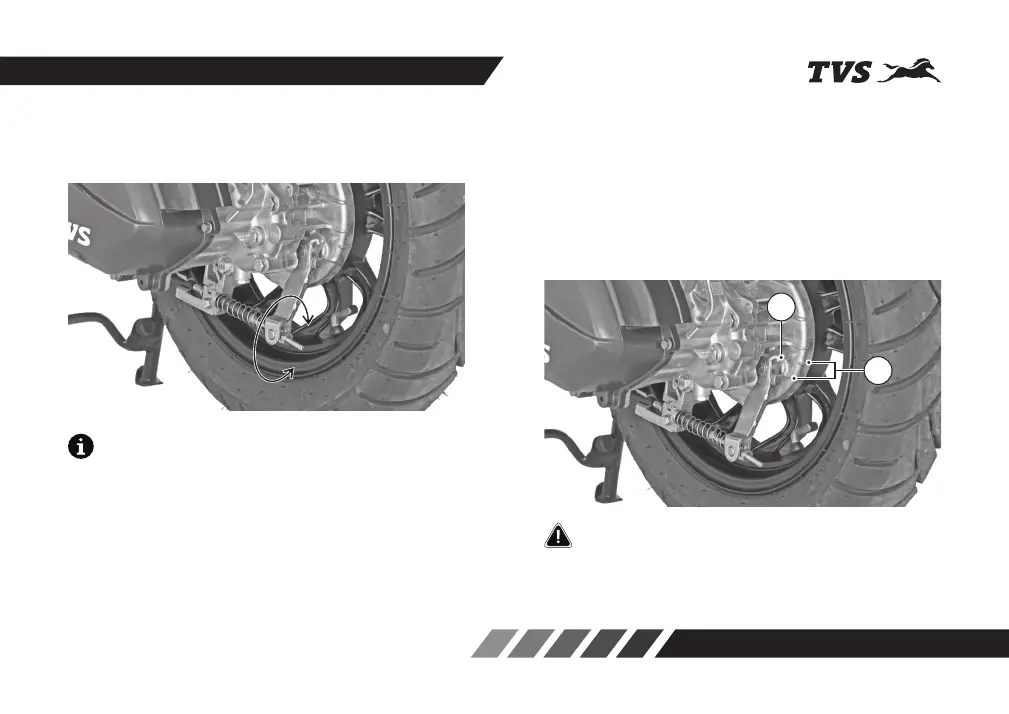

4. Turn the adjuster nut in clockwise direction for
reducing free play or in anti-clockwise direction
for increasing the free play.
Brake shoe wear indicator (Rear brake)
When brake is applied, the wear limit indication
pointer (1) on the rear brake cam lever should be
within the wear limit indicator (2) on the crankcase
LH.
In case the wear limit indication pointer (1) is going
beyond wear limit indicator (2), index the lever to next
slot with the help of Dealers to extend shoe life.
1
Replace the brake shoes as a set, if the wear limit
indicator shows beyond the wear limit even after
indexing the lever.
Caution
2
Please remember that the rear brake lever free play
adjustment to be done only after adjusting the front
brake lever play incase of SBS type brake (Drum
type).
Note

TVS NTORQ 125 Specifications

General

Displacement	124.8 cc
Max Torque	10.5 Nm @ 5, 500 rpm
Fuel System	Fuel Injection
Transmission	CVT
Front Brake	Disc
Rear Brake	Drum
Kerb Weight	118 kg
Front Tyre	100/80-12
Rear Tyre	110/80-12
Starting Method	Electric Start
Tyre Type	Tubeless
Seat Height	770 mm
Ground Clearance	155 mm
Engine Type	Single Cylinder, 4-Stroke, Air Cooled
Front Suspension	Telescopic
Fuel Tank Capacity	5.8 liters
Wheelbase	1285 mm
Rear Suspension	Coil Spring, Hydraulic Damped
