TVS NTORQ 125 User Manual

59
Replace the brake shoes as a set, if the wear limit
indicator shows beyond the wear limit even after
indexing the lever.
Caution
Since the vehicle is fitted with Synchronised Braking
System (SBS) adjust the brakes with additional care.
If not it may result in brakes not working properly.
Please contact TVS Motor Company Authorised Main
Dealer or Authorised Dealer for any further assistance.
Warning

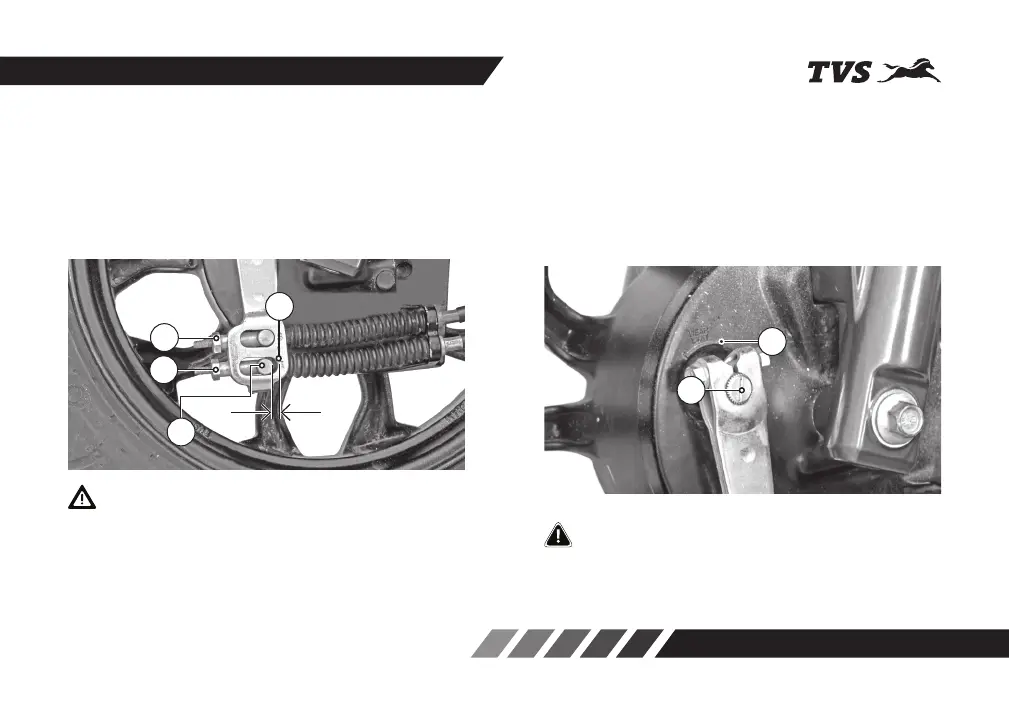

6. After adjusting the adjuster nut top, if any
clearance is observed in between the bullet
bottom (5) and the slot bottom (6) marked as
“I” as shown, then turn the adjuster nut (2) in
anti-clockwise until there is no clearance.
7. Once again check and confirm the brake play at
the lever end.
6
ClearanceClearance
1
2
5
Brake shoe wear indicator front
When the brake is applied, wear limit index mark (1)
on the front brake cam should be within the wear
limit indicator (2) on the front brake panel.
Incase the wear limit index mark (1) is going beyond
wear limit indicator (2), index the lever to next slot
with the help of the Dealer to extend the shoe life.
1
2

TVS NTORQ 125 Specifications

General

Displacement	124.8 cc
Max Torque	10.5 Nm @ 5, 500 rpm
Fuel System	Fuel Injection
Transmission	CVT
Front Brake	Disc
Rear Brake	Drum
Kerb Weight	118 kg
Front Tyre	100/80-12
Rear Tyre	110/80-12
Starting Method	Electric Start
Tyre Type	Tubeless
Seat Height	770 mm
Ground Clearance	155 mm
Engine Type	Single Cylinder, 4-Stroke, Air Cooled
Front Suspension	Telescopic
Fuel Tank Capacity	5.8 liters
Wheelbase	1285 mm
Rear Suspension	Coil Spring, Hydraulic Damped
