5-6
BA ET16 de*
1.0 *
et16b500.fm
5
Operation
Preparations for perfor
ming machine travel on slopes
Always perform uphill or downhill
machine travel in a straight line.
When changing position
, do not exceed a maximum gradient a
ngle of 15°
and a maximum lateral angle of inclination of 10°
.
Change position on level ground
and then perform straight-
ahead
machine travel onto the slope.

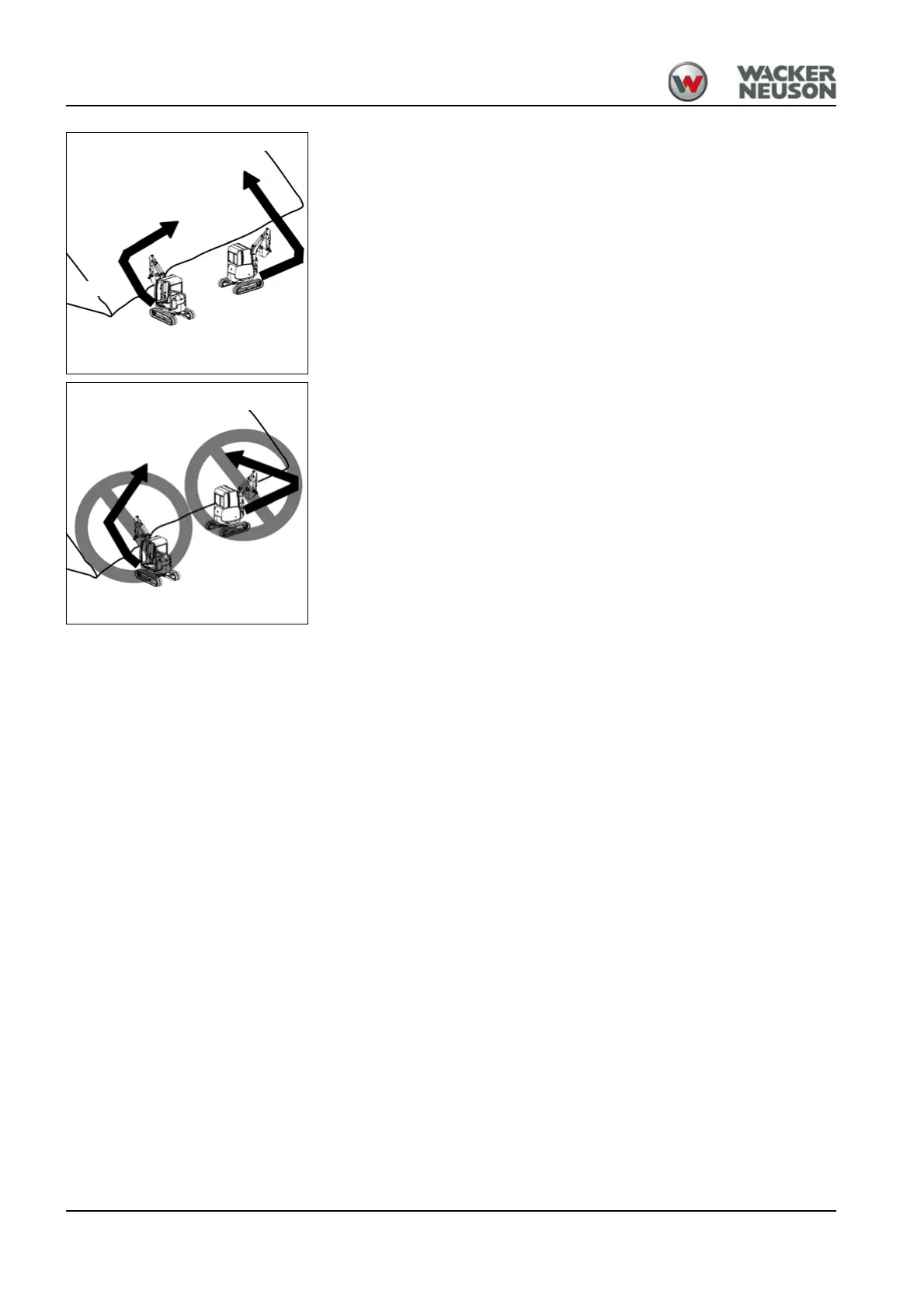

Fig. 107
< 10°
Fig. 108
107
109
