Wacker Neuson ET16 User Manual

5-34 BA ET16 de* 1.0 * et16b510.fm
5 Operation
Manual HSWS bolt lock
Depending on national provisions, the HSWS must also be manually
locked according to the hydraulic locking process.
The locking or unlocking is located to the left on the quick coupler system.
• Stop the engine and remove the starting key.
• Raise the control lever base.
• Rotate bolt A so that the pin B fits in the recess C (2).
• Press in the bolt A and turn until it is held in its position by the spring
(3).
➥ The HSWS is also manually locked.
Information
Comply with national provisions.
Information
The bolt positions may deviate in their final position from the figures.

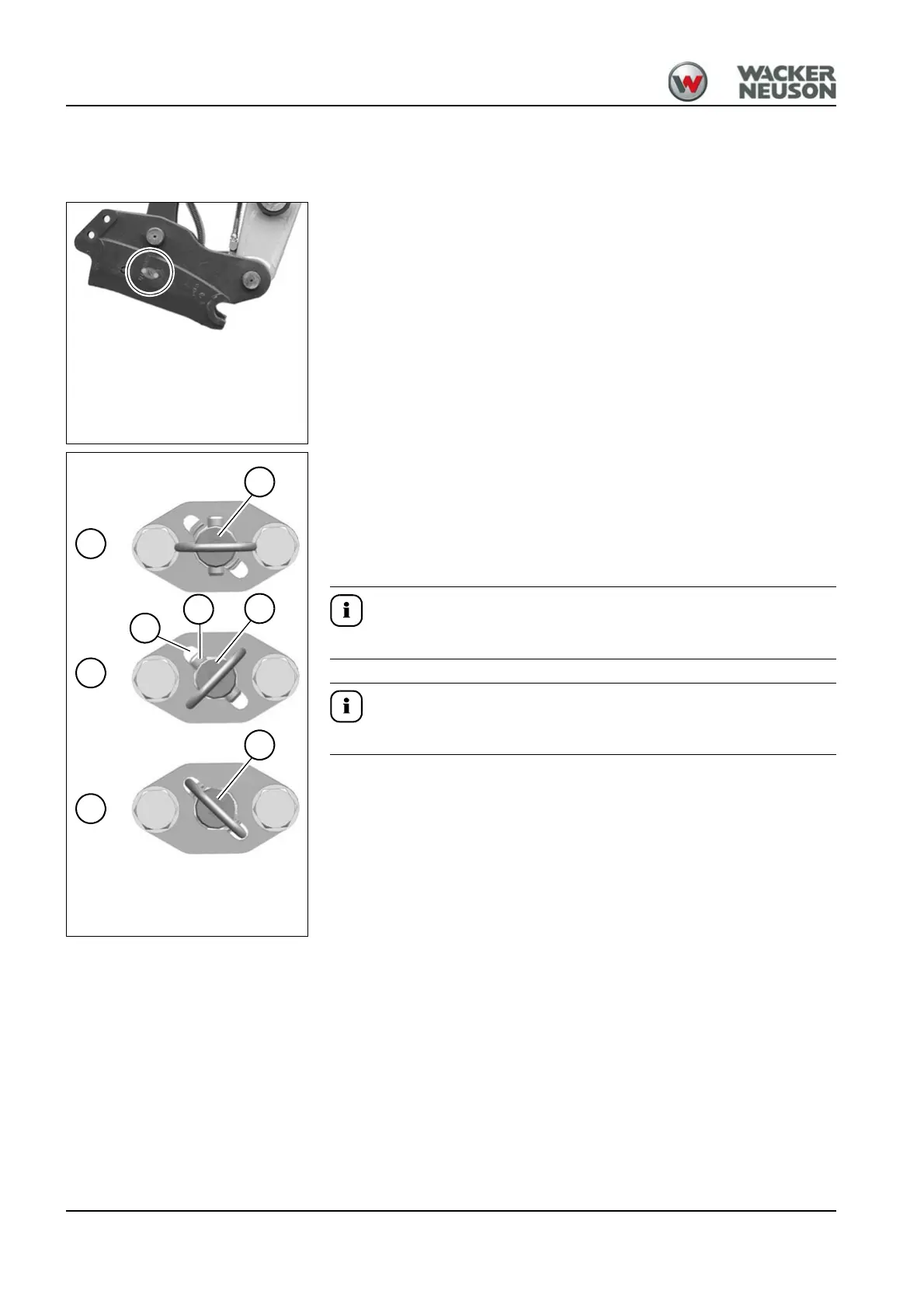

Fig. 161
Fig. 162 (symbolic representation)
