Operation 5
Setting down an attachment
Manual HSWS bolt unlocking
Depending on national provisions, the HSWS must also be manually
unlocked according to the hydraulic unlocking process.
The locking or unlocking is located to the left on the quick coupler system.
• Stop the engine and remove the starting key.
• Raise the control lever base.
• Rotate bolt A so that the pin B fits in the recess C (2).
• Pull out the bolt A (1).
➥ The HSWS is manually unlocked. The attachment is still
hydraulically locked.
Information
Comply with national provisions.
Information
The bolt positions may deviate in their final position from the figures.

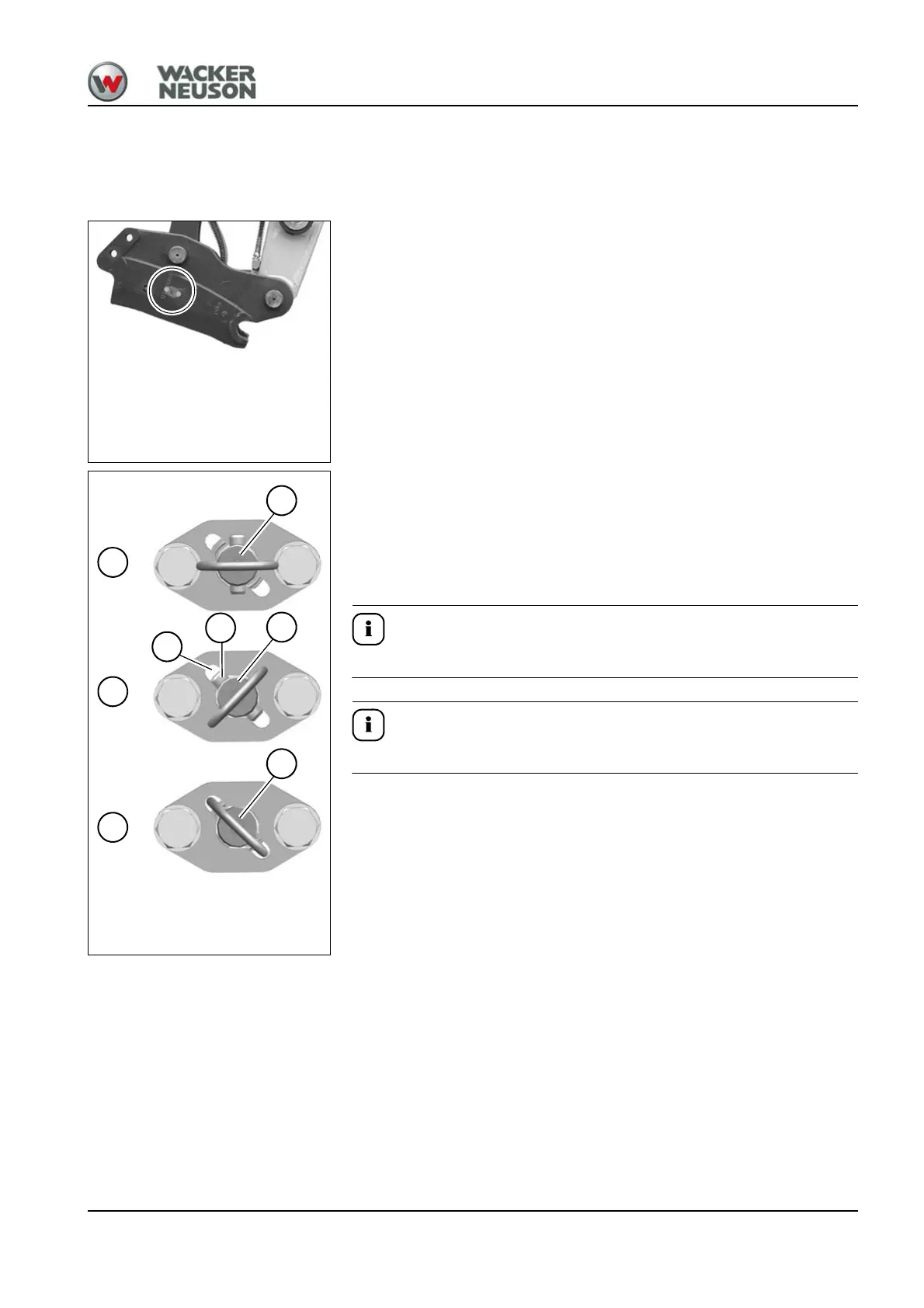

Fig. 163
Fig. 164
1
2
3
A
A
A
C
B
