5 Operation
Picking up an attachment
1. Hook up the quick coupler system A in the attachment bolt B.
2. Slightly screw in the quick coupler system A, lift the shovel arm until
the attachment is suspended about 30 cm (12 in) above the ground.
3. Extend the bucket cylinder so that the edge C of the attachment
touches the quick coupler system.
4. Screw in the quick coupler system A until the attachment lies
completely on the quick coupler system A due to its weight.
5. Shut off the engine and store the ignition switch key safely.
6. Screw socket wrench D clockwise until the bolts E completely engage
in the openings G of the quick coupler system A.
➥ The quick coupler system is locked.
7. Remove the socket wrench and perform a visual inspection.
8. Start the engine.

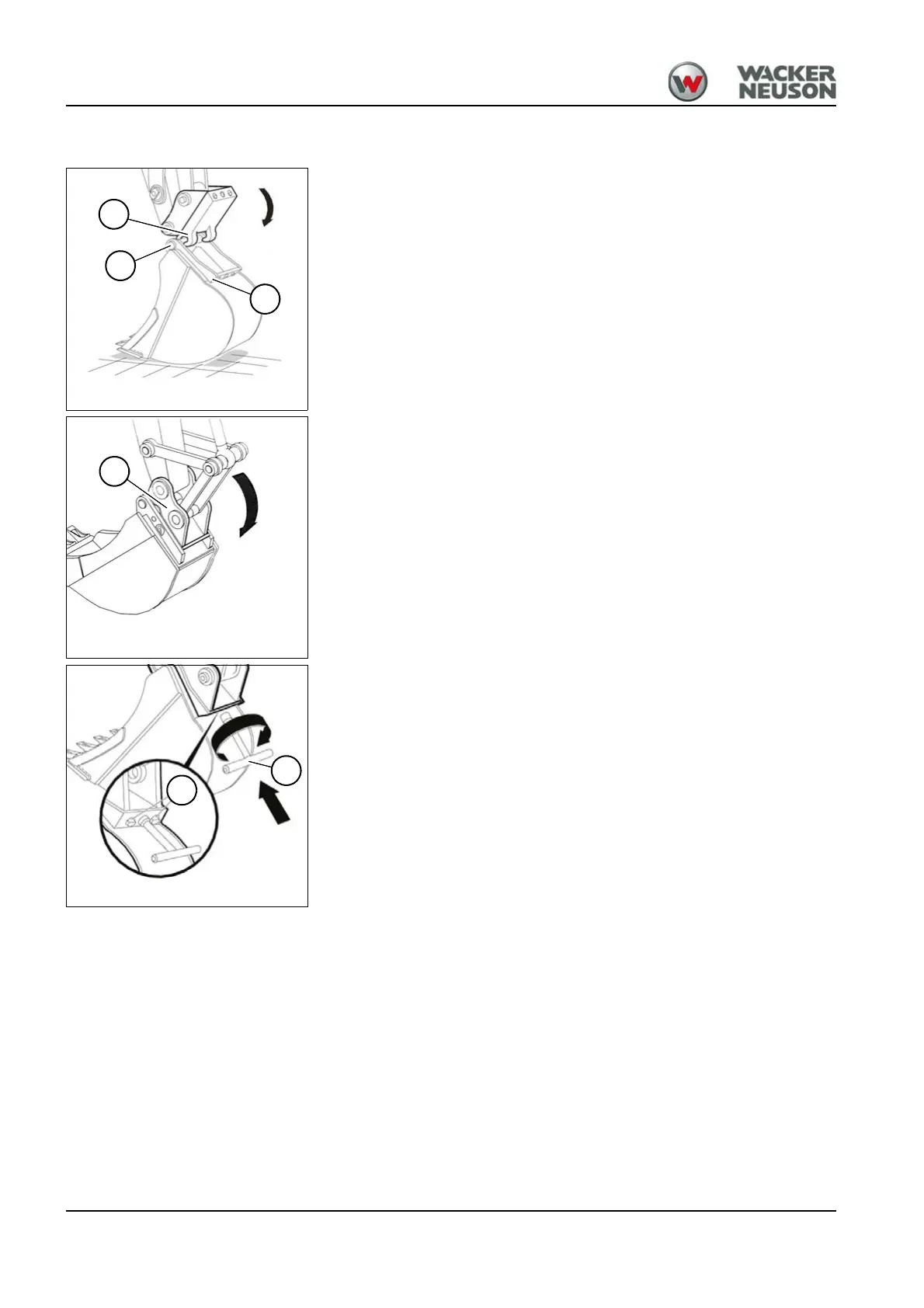

Fig. 142
A
B
C
Fig. 143
A
Fig. 144
E
D
