BA ET16 de* 1.0 * et16i400.fm
4-17
Putting into operation
4
Assembly
1.
Stop and park the machine. Stop the engin
e
. See “Preparing
lubrication”.
2.
Tighten hexagon head scr
ews
A
(M6/8.8) to 10 Nm (7 ft.lbs) on
the left
and right.
3.
Tighten hexagon socket screws
B
(M20/8.8) to 410 Nm
(302 ft.lbs) on
the left and right.

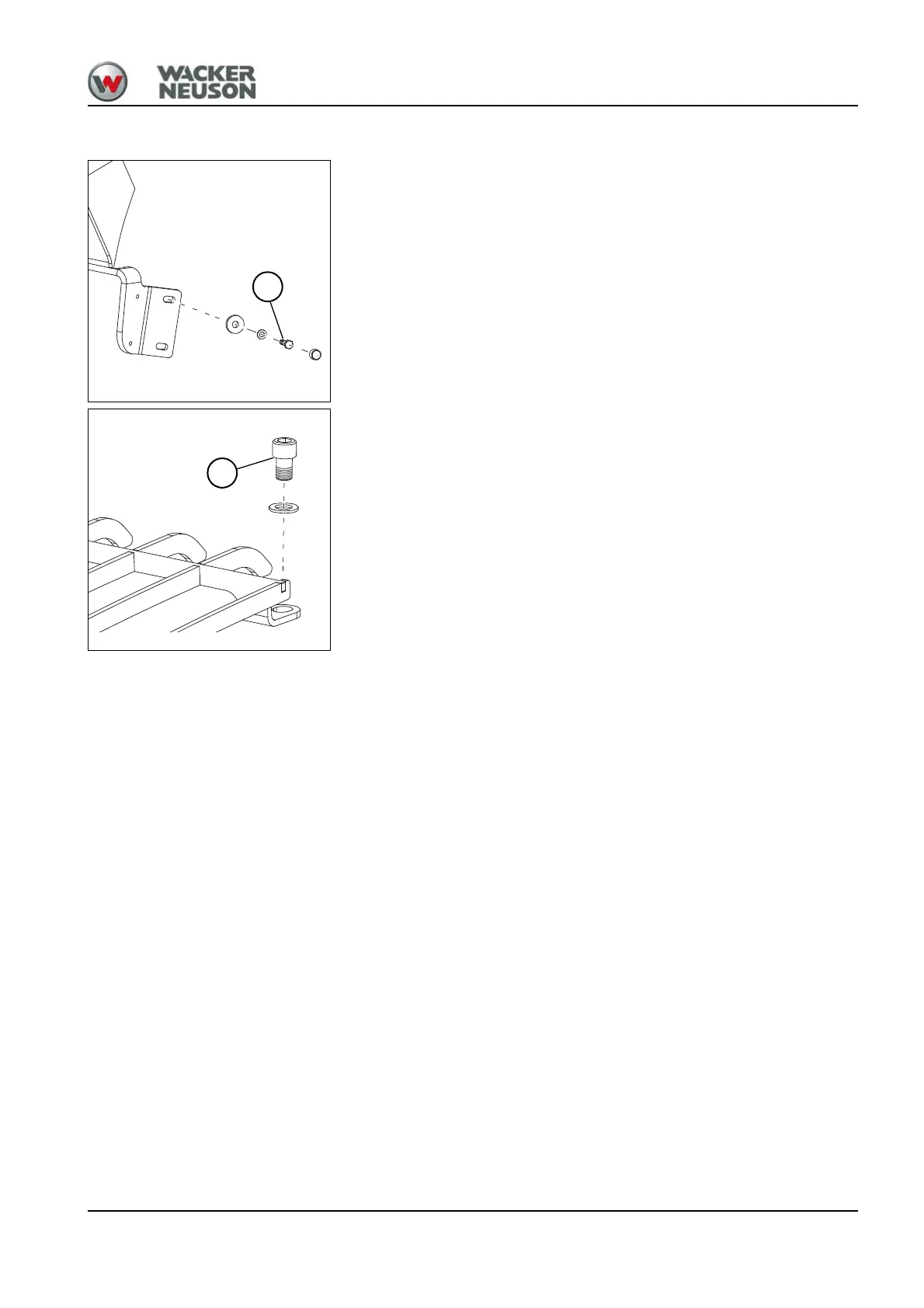

Fig. 86
A
Fig. 87
B
76
78
