Auxiliary equipment
HAMM line spreader
220
BA RD24_RD27 en 04

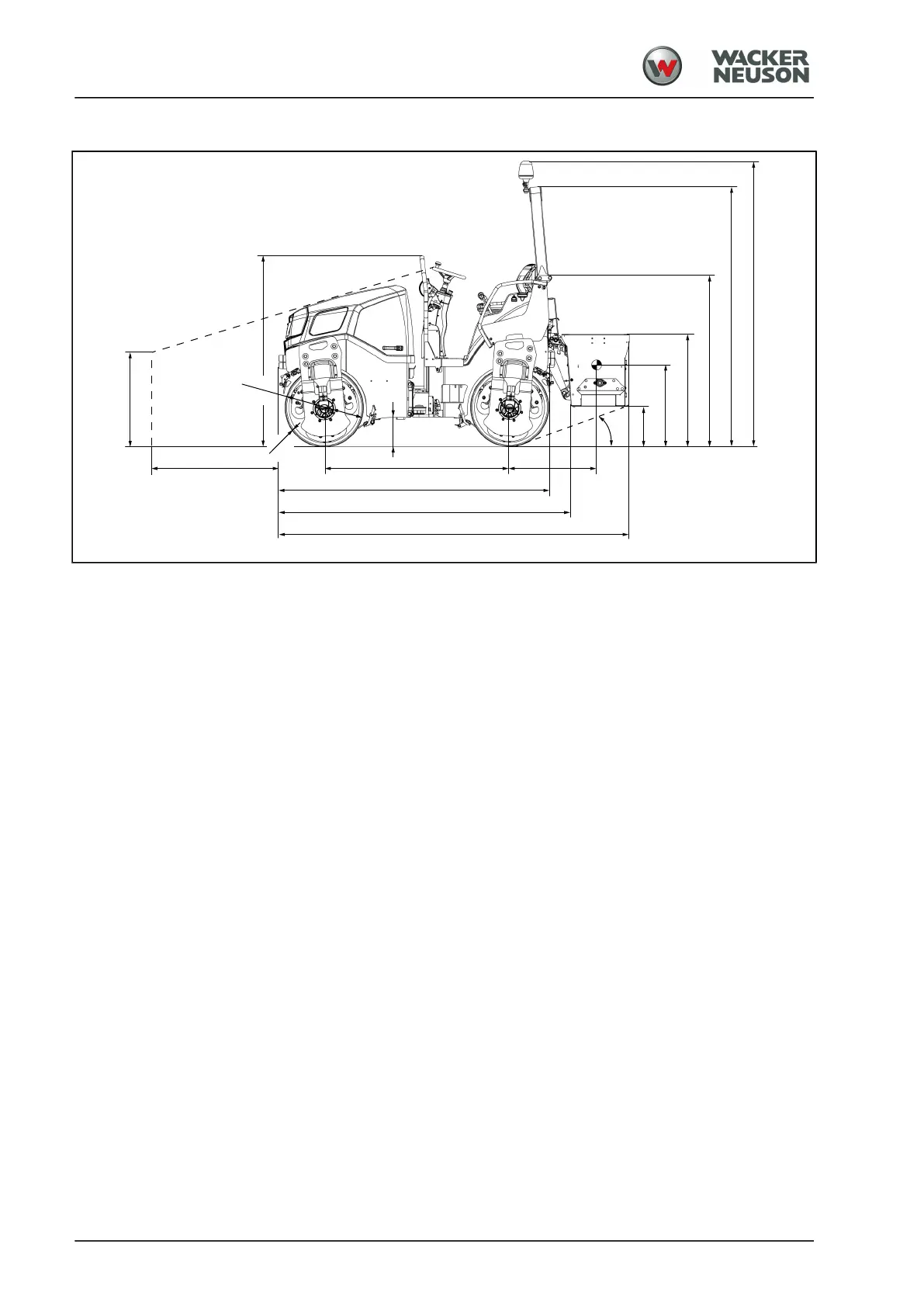

Dimension sheet
1752
(69.0")
280
(11.0")
1580
(62.2")
1030
(40.6")
860
(33.9")
750
(29.5")
370
(14.6")
2378
(93.6")
2614
(102.9")
1700
(66.9")
15
(0.6")
1000
(39.4")
2530
(99.6")
800
(31.5")
2675
(105.3")
3214
(126.5")
Ø 720
(28.3")
20°
