3-M41
L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION
[3] GROUND PTO (IF EQUIPPED)

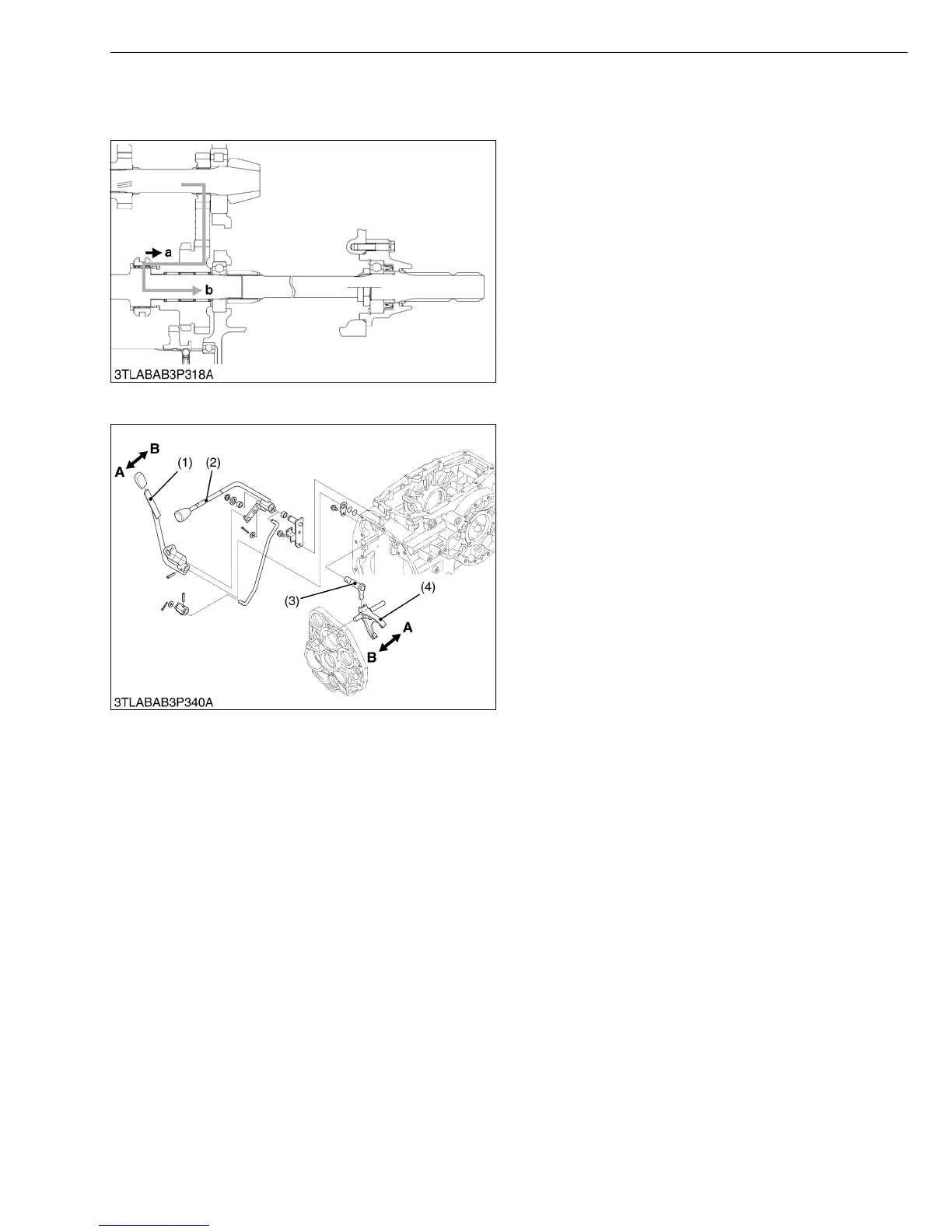

(1) Power Train
The ground PTO gear section is located in the mid
case, and it use constant mesh. It is shifted by the
ground PTO shift lever to shift the shifter. THe power
train of ground PTO is as shown in figure.
Then the PTO shaft is turned an amount proportional
to the tractor travelling speed.
W1022245
(2) Shift Linkage
The ground PTO can be engage only when PTO
speed change lever is in the neutral position.
The ground PTO lever (1) is connected directly to the
shift fork (4). When the ground PTO lever (1) is moved
to the A side, the shift fork (4) is also moved to A side,
then the ground PTO is “Engaged”. When the ground
PTO lever (1) is moved to the B side, the ground PTO is
“Disengaged”.
W1022300
a : Ground PTO Position b : PTO Speed
(1) Ground PTO Lever
(2) PTO Speed Change Lever
(3) Shift Arm
(4) Shift Fork
To Next Page
