7-S14
L3130 · L3430 · L3830 · L4630 · L5030, WSM
STEERING
(2) Servicing

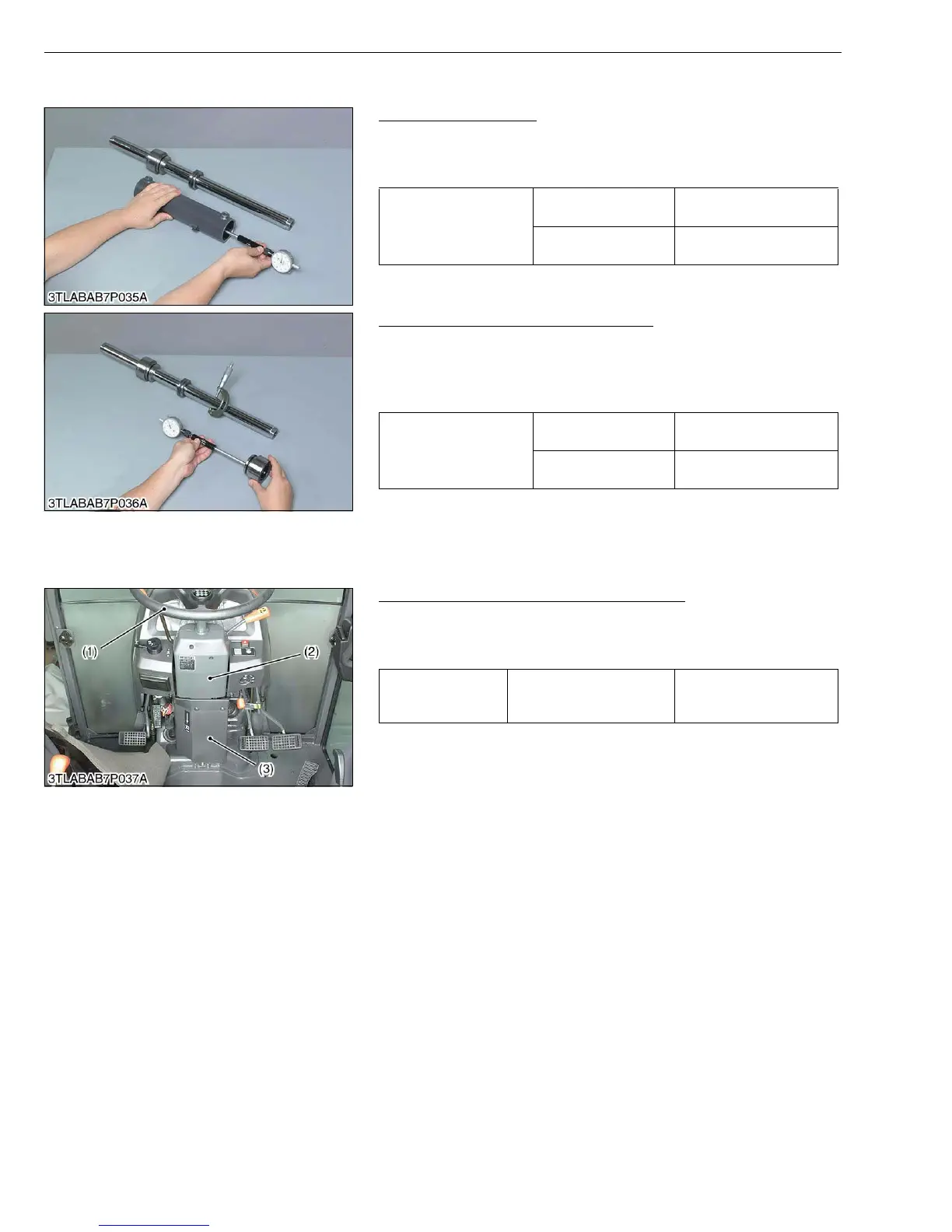

Steering Cylinder I.D.
1. Measure the steering cylinder I.D. with a cylinder gauge.
2. If the cylinder I.D. exceed the allowable limit, replace the cylinder
tube.
W1019033
Clearance between Rod and Bushing
1. Measure the bushing I.D. with a cylinder gauge.
2. Measure the rod O.D. with a outside micrometer, and calculate
the clearance.
3. If the clearance exceeds the allowable limit, replace as a unit.
W10182660
[4] STEERING LINKAGE
(1) Disassembling and Assembling
Steering Wheel and Steering Post Covers
1. Remove the steering wheel (1).
2. Remove the steering post covers (2), (3).
(When reassembling)
W1019416
Steering cylinder I.D.
Factory spec.
55.000 to 55.074 mm
2.16535 to 2.16827 in.
Allowable limit
55.100 mm
2.16929 in.
Clearance between rod
and bushing
Factory spec.
0.009 to 0.127 mm
0.00035 to 0.00500 in.
Allowable limit
0.135 mm
0.00531 in.
Tightening torque
Steering wheel mounting
nut
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 ft-lbs
(1) Steering Wheel
(2) Steering Post Cover 1
(3) Steering Post Cover 2
KiSC issued 02, 2007 A
