wsm L2800 Workshop Manual

9-M25
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ELECTRICAL SYSTEM
(2) Assistant Control System
(A) Fail-safe Function
If a sensor or solenoid valve of the system gets in trouble during operation, an error message appears in the LCD
screen of the IntelliPanel. The entire system adjusts itself on the safer side and keeps itself from getting into another
trouble.
What’s more, if the shift solenoid valve of the GST valve gets in trouble, the system adjusts itself to an accessible
shift position or the neutral position no matter which position the shift lever stays in.
(B) Self-diagnosis Function
If any of the following troubles occurs, its related error
code gets displayed flashing in the panel’s LCD screen
as shown in figure. With the repair finished, the error
code disappears. The error information will be, however,
put in the memory device of the IntelliPanel and can be
reviewed in the Error Information Display Mode (see
page 9-S18). Such error information can also be deleted
out of the error history by operating of Error Information
Reset Mode (see page 9-S15).
(Error Messages)
■ For All Models
ERROR-00 : Electronic meter in trouble
ERROR-20 : Communication error (For GST model)
GST-specified meter wrongly installed
on HST or Manual Transmission Model
■ For GST Model Only
ERROR-30 : ECU in trouble
ERROR-40 : Power supply of sensor from ECU in
trouble
ERROR-50 : GST lever sensor in trouble
ERROR-60 : Proportional reducing valve in trouble
ERROR-61 : Shift solenoid 1 in trouble
ERROR-62 : Shift solenoid 2 in trouble
ERROR-63 : Shift solenoid 3 in trouble
ERROR-64 : Shift solenoid 4 in trouble
ERROR-65 : Shift solenoid 6 in trouble
ERROR-66 : Shift solenoid 5 in trouble
NOTE■
• See page 9-S4 about a detailed content of the
error messages and their action method.
W1019431

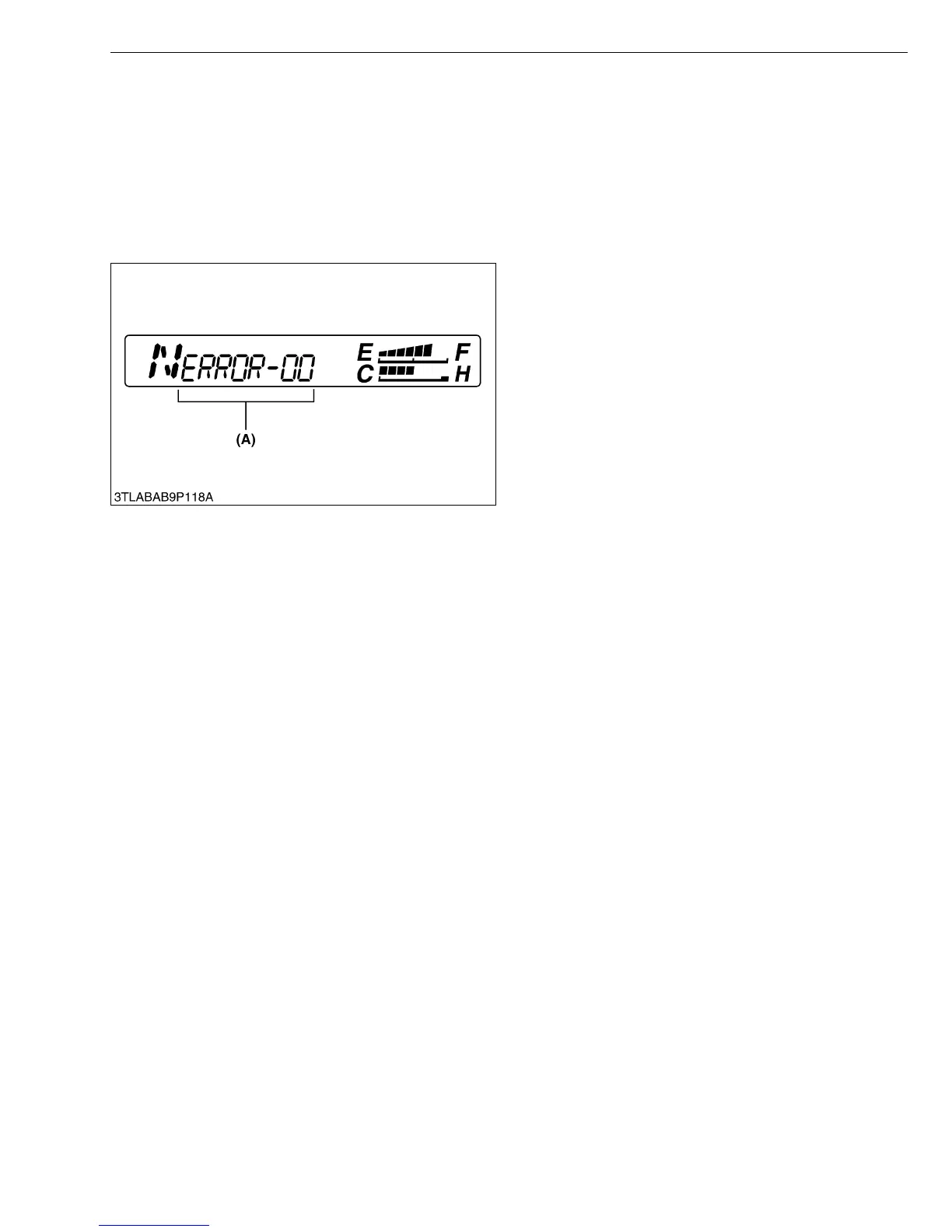

(A) The error message is
displayed here.
KiSC issued 02, 2007 A
