8-M19
L3130 · L3430 · L3830 · L4630 · L5030, WSM
HYDRAULIC SYSTEM
11. HYDRAULIC CYLINDER
The external type hydraulic cylinders are used for
three point linkage system. This hydraulic cylinder is
single acting type, and it is installed directly between
hydraulic lift arm and lower link.

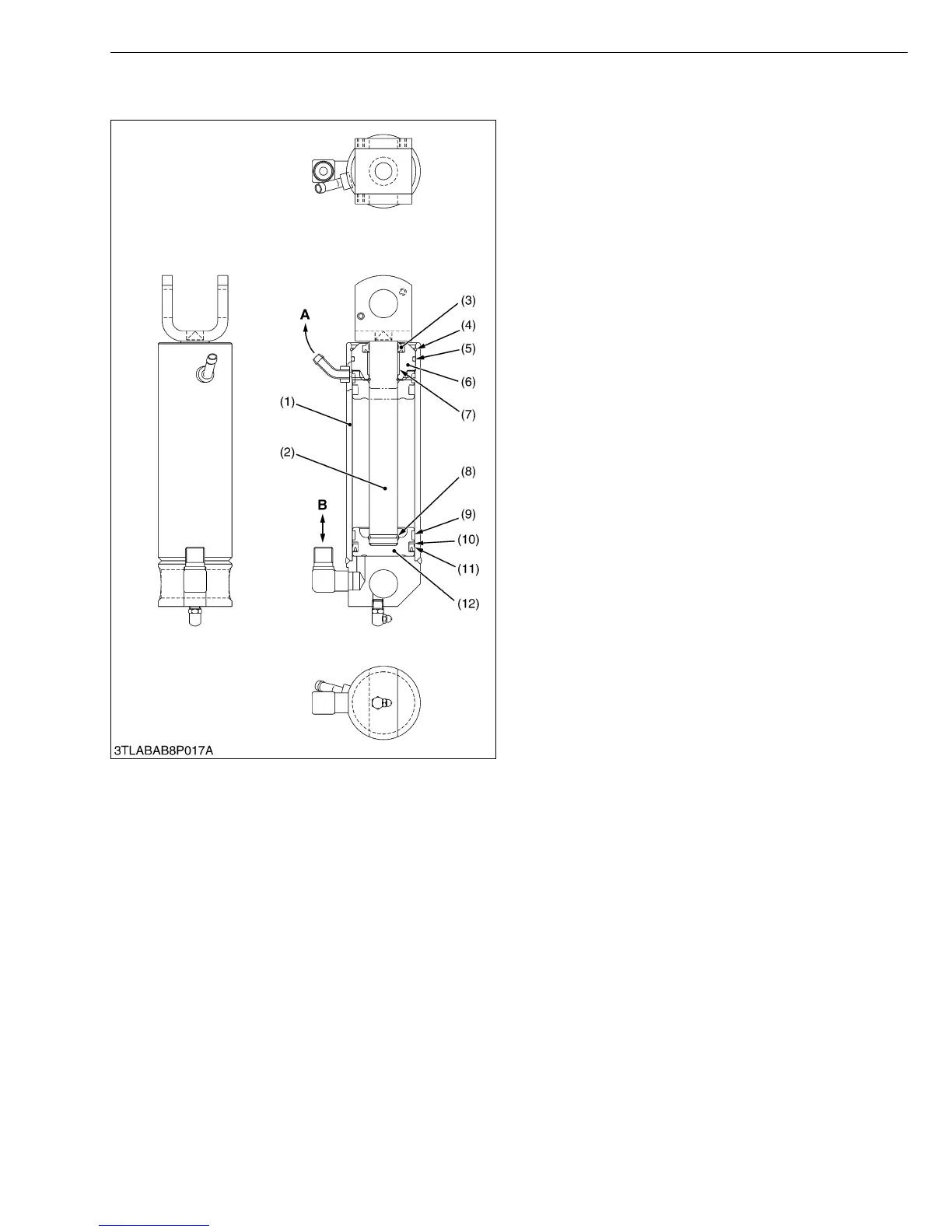

The main components of the hydraulic cylinder are
shown in the figure.
W1015282
(1) Cylinder Tube
(2) Rod
(3) Wiper
(4) Snap Ring
(5) O-ring
(6) Head
(7) Bushing
(8) Snap Ring
(9) Bearing Ring
(10) Backup Ring
(11) Seal
(12) Piston
A : To Transmission Case
B : To or From Position
Control Valve
