10-S28
L3130 · L3430 · L3830 · L4630 · L5030, WSM
CABIN

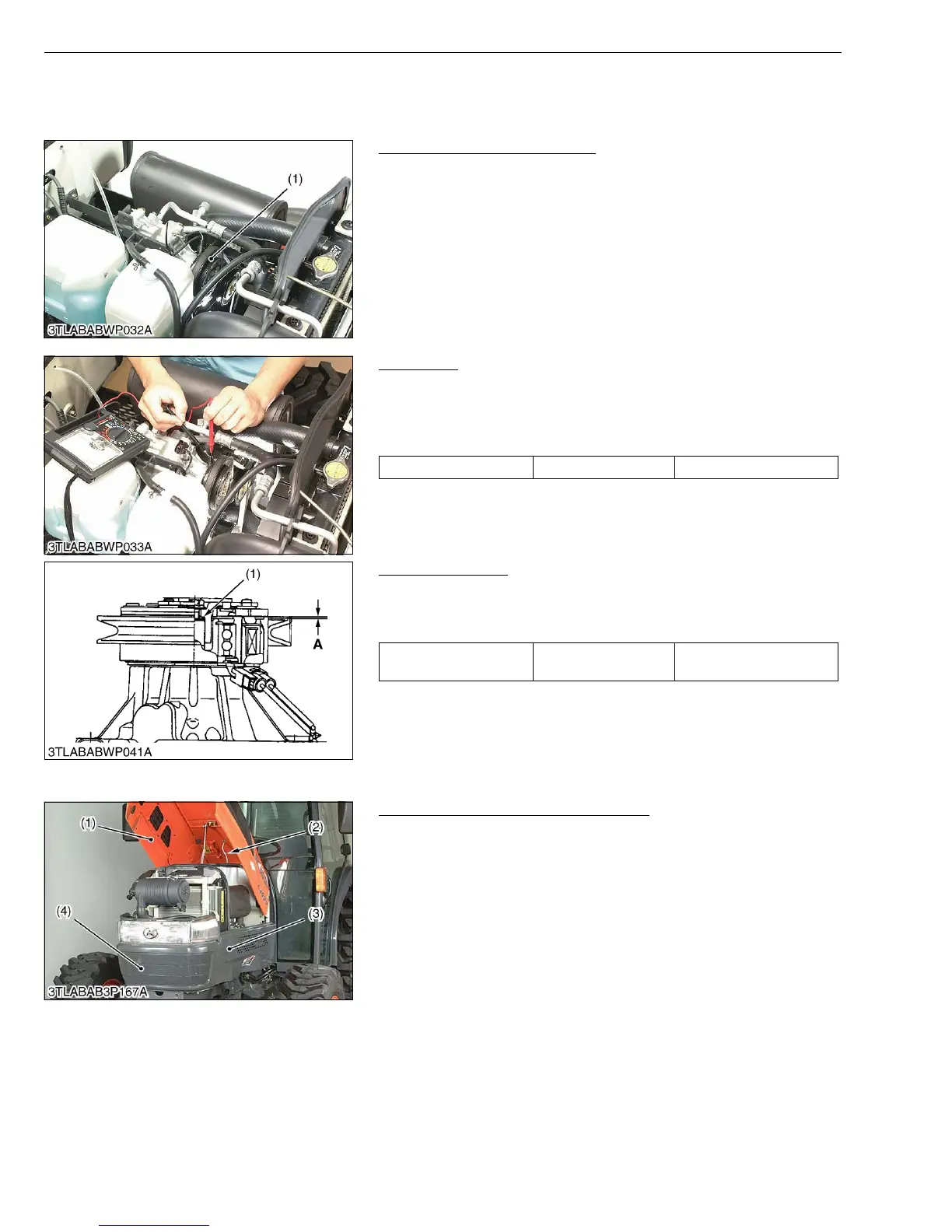

[2] COMPRESSOR
(1) Checking
Operation of Magnetic Clutch
1. Start the engine.
2. Check whether abrasion or abnormal noise is heard when only
the magnetic clutch pulley is running while the A/C switch is
pushed OFF.
3. Check that the magnetic clutch (1) does not slip when the A/C
switch and blower switch are turned ON (when the air conditioner
is in operation).
4. If anything abnormal is found, repair or replace.
W1014211
Stator Coil
1. Measure the resistance of the stator coil with an ohmmeter
across the 2P connector.
2. If the measurement is not within the factory specifications,
replace the stator coil.
W1014331
Checking Air-gap
1. Measure the air-gap with a feeler gauge.
2. If the measurement is not within the factory specification, adjust
the air-gap shim (see page 10-S31).
W1028014
(2) Disassembling and Assembling
Battery, Front Grill, Skirt and Bonnet
1. Open the bonnet and disconnect the battery negative cable.
2. Disconnect the head light connector and remove the front grill (4).
3. Remove the left and right side skirts (3).
4. Disconnect window washer hoses (2).
5. Remove the bonnet (1).
NOTE
• When disconnecting the battery cords, disconnect the
negative cord first, when connecting, positive cord first.
W1064077
(1) Magnetic Clutch
Stator coil resistance Factory spec. 3.0 to 3.4 Ω
Air-gap Factory spec.
0.20 to 0.45 mm
0.008 to 0.018 in.
(1) Shim A : Air-Gap
(1) Bonnet
(2) Window Washer Hose
(3) Skirt
(4) Front Grill
To Next Page
