6-S7
L3130 · L3430 · L3830 · L4630 · L5030, WSM
FRONT AXLE
[2] DISASSEMBLING AND ASSEMBLING

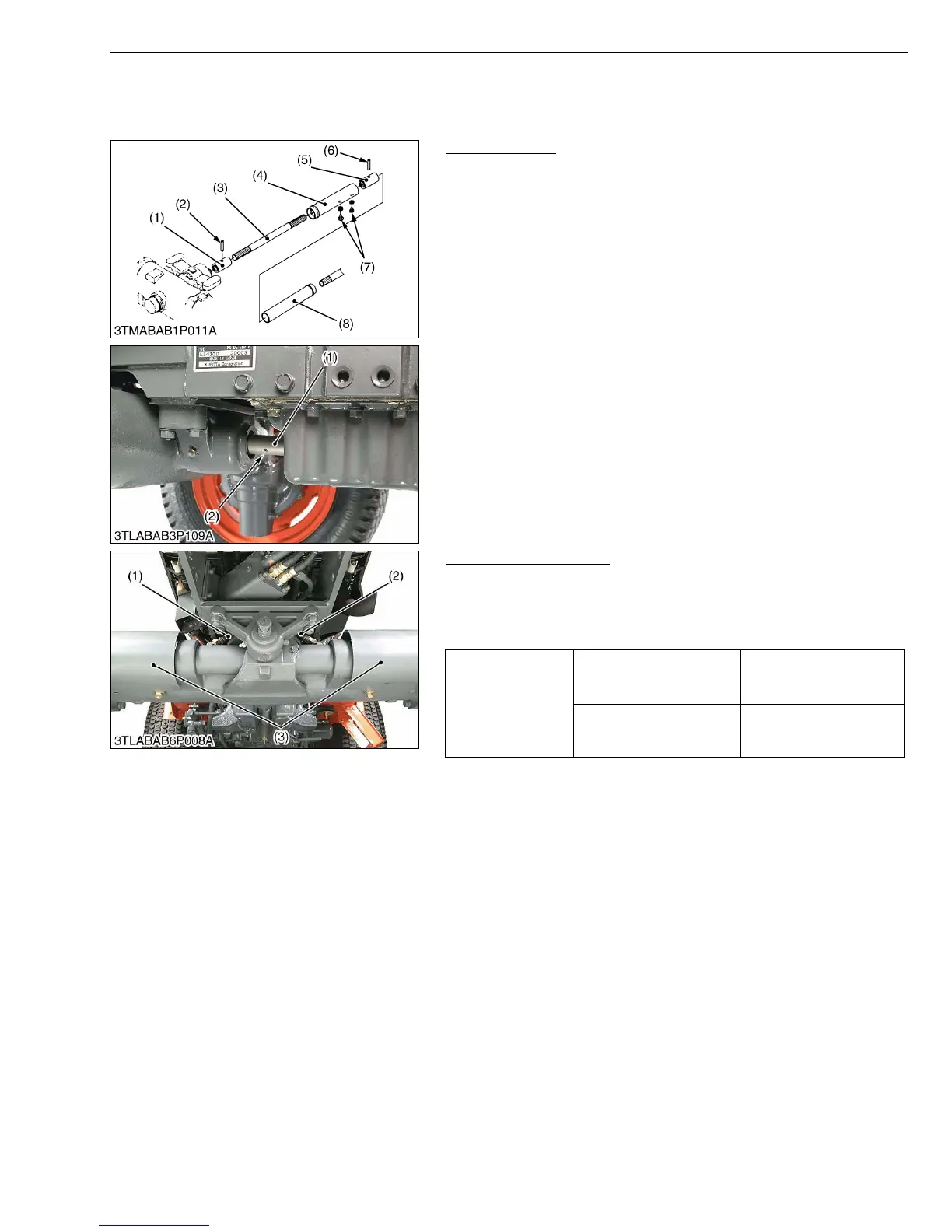

(1) Separating Front Axle Assembly
Propeller Shaft
1. Slide the propeller shaft cover (4) and (8) after removing the
screws (7).
2. Tap out the spring pins (2), (6) and slide the couplings (1), (5) and
then remove the propeller shaft with covers (4), (8).
(When reassembling)
• Apply grease to the splines of propeller shaft 1 (3).
W1035934
Power Steering Hoses
1. Disconnect the power steering hoses (1), (2) from steering
cylinder.
2. Remove the cylinder cover.
(When reassembling)
W10225690
(1) Coupling
(2) Spring Pin
(3) Propeller Shaft 1
(4) Propeller Shaft Cover
(5) Coupling
(6) Spring Pin
(7) Screws
(8) Propeller Shaft Cover
Tightening torque
Power steering hose
retaining nut
24.5 to 29.4 N·m
2.5 to 3.0 kgf·m
18.1 to 21.7 ft-lbs
Cylinder cover mounting
screw
60.8 to 70.6 N·m
6.2 to 7.2 kgf·m
44.8 to 52.1 ft-lbs
(1) Power Steering Hose, RH (with Red
Tape)
(2) Power Steering Hose, LH (with Blue
Tape)
(3) Cylinder Cover
KiSC issued 02, 2007 A
