wsm L2800 Workshop Manual

G-56
L3130 · L3430 · L3830 · L4630 · L5030, WSM
G GENERAL
[2] TREADS ADJUSTMENT
CAUTION
• When working on slopes or working with trailer, set the wheel tread as wide as practice for the job for
maximum stability.
• Support tractor securely on stands before removing a wheel.
• Do not work under any hydraulically supported devices. They can settle, suddenly leak down, or be
accidentally lowered. If necessary to work under tractor or any machine elements for servicing or
adjustment, securely support them with stands or suitable blocking beforehand.
• Never operate tractor with a loose rim, wheel, or axle.

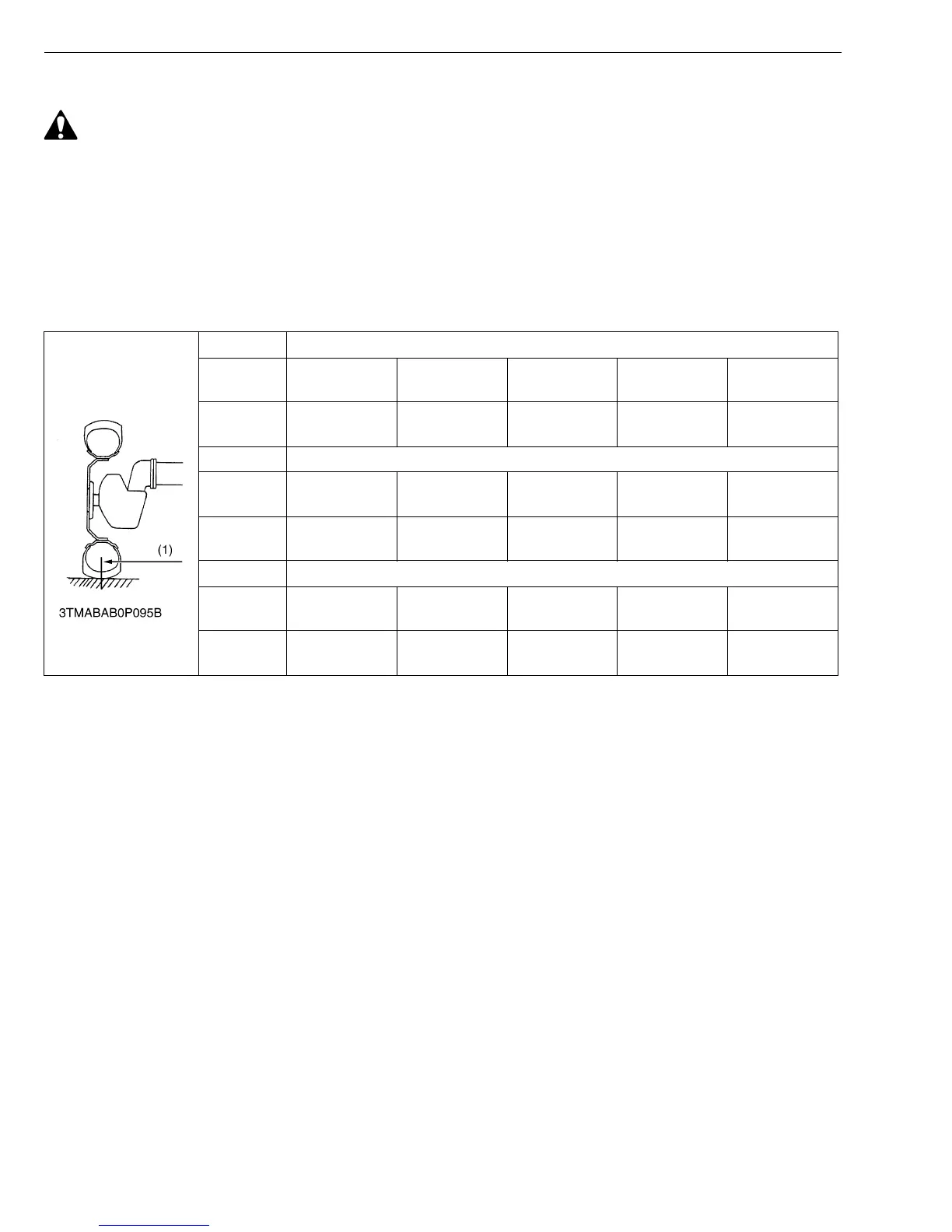

(1) Front Wheels
Front axle is not adjustable
(1) Tread
W10527070
(2) Rear Wheels
Rear tread can be adjusted in 6 steps depending on the model.
To change the tread
1. Lift the rear tires off the ground.
2. Follow the illustrations below to get the desired tread width.
IMPORTANT■
• If not attached as illustrated, transmission parts may be damaged.
• When re-fitting or adjusting a wheel, tighten the bolts to the following torques then recheck after driving
the tractor 200 m (200 yards) and thereafter according to service interval.
Models L3130, L3430
Tire
7-16
Farm
––
212/80-D15
Turf
–
Tread
1150 mm
(45.3 in.)
––
1180 mm
(46.5 in.)
–
Models L3830, L4630
Tire
7-16
Farm
8-16
Farm
–
212/80-D15
Turf
29 × 12.00-
15 Turf
Tread
1150 mm
(45.3 in.)
1145 mm
(45.1 in.)
–
1180 mm
(46.5 in.)
1270 mm
(50.0 in.)
Models L5030
Tire – –
9.5-16
Farm
–
29 × 12.00-
15 Turf
Tread – –
1135 mm
(44.7 in.)
–
1210 mm
(47.6 in.)
KiSC issued 02, 2007 A
