7-S4
L3130 · L3430 · L3830 · L4630 · L5030, WSM
STEERING
4. CHECKING, DISASSEMBLING AND SERVICING
[1] HYDRAULIC PUMP
(1) Checking
(A) Pump Test Using Flow-meter [Manual and Glide Shift Transmission Models]

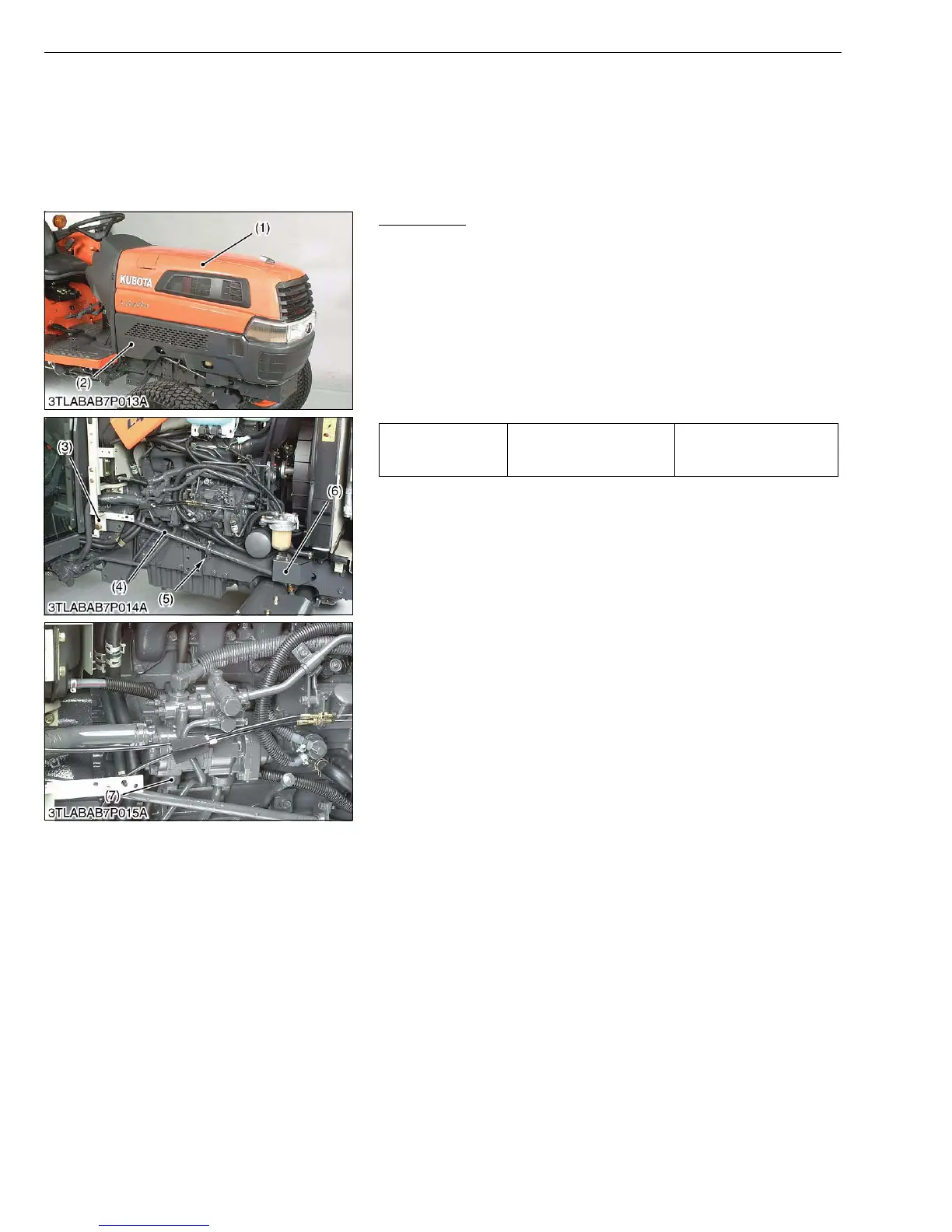

Preparation
1. Open the bonnet (1).
2. Remove the side skirt RH (2).
3. Remove the fuel tank frame support (3), cover (6) and steering
joint shaft (4).
4. Remove the regulator delivery pipe (7).
(When reassembling)
• Install the copper washers firmly.
• Tighten the steering joint shaft bracket mounting screw after
adjusting the position of steering joint shaft bracket (5) for smooth
rotation of the steering wheel.
W1012306
Tightening torque
Regulator delivery pipe
joint bolt
39.2 to 49.0 N·m
4.0 to 5.0 kgf·m
28.9 to 36.2 ft-lbs
(1) Bonnet
(2) Side Skirt RH
(3) Fuel Tank Frame Support
(4) Steering Joint Shaft
(5) Steering Joint Shaft Bracket
(6) Cover
(7) Regulator Delivery Pipe
To Next Page
