3-S92
L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION

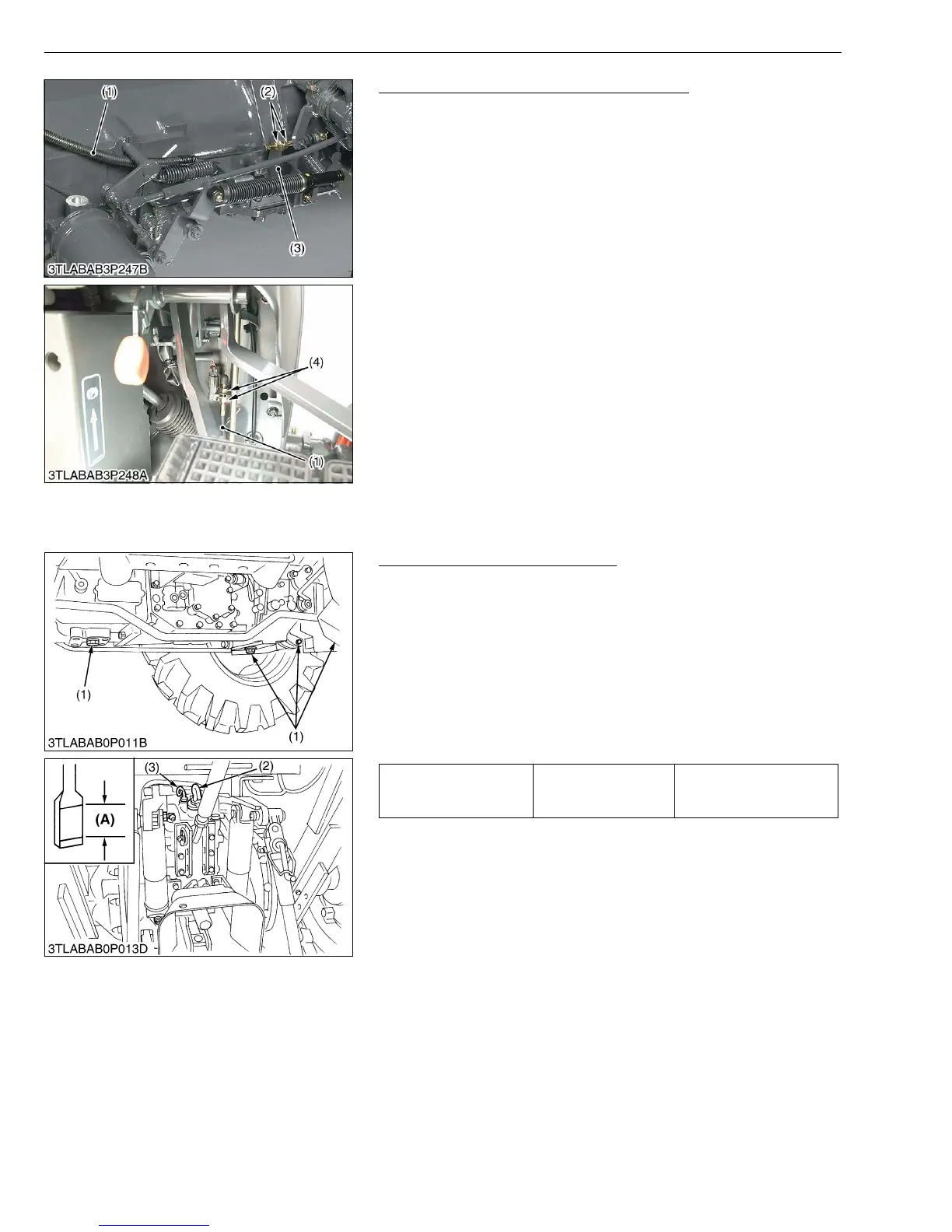

Adjusting Cruise Control Release Linkage
1. Adjust the brake pedals play first.
2. Depress one of the brake pedals to make sure the cruise control
is not released. Also depress both the brake pedals coupled
together to make sure that the cruise control is released.
3. If the cruise control does not work as above adjust with release
wire (1) as follows.
- Check to see that the threaded portion of the wire (1) rear side
is set at the end position. If not, set by lock nuts (2).
- Adjust by lock nuts (4) for the center of the threaded portion of
the release wire front side to come to the hook position.
- Confirm whether to move as above-mentioned 2.
- If not, adjust by lock nut (4).
W1013375
(2) Disassembling and Assembling
(A) Separating Clutch Housing and Engine
Draining the Transmission Fluid
1. Place oil pans underneath the transmission case.
2. Remove the drain plugs (1).
3. Drain the transmission fluid.
4. Reinstall the drain plugs (1).
(When refilling)
• Fill up from filling port after removing the filling plug (2) until
reaching the upper notch on the dipstick (3).
• After running the engine for few minutes, stop it and check the oil
level again, add the fluid to prescribed level if it is not correct
level.
IMPORTANT
• Use only KUBOTA SUPER UDT fluid. Use of other oils may
damage the transmission or hydraulic system.
Refer to “LUBRICANTS, FUEL AND COOLANT”. (See page
G-7, 8.)
• Do not mix different brands of fluid together.
W1242305
(1) Release Wire
(2) Lock Nut (Rear)
(3) Damper Stay
(4) Lock Nut (Front)
Transmission fluid Capacity
45 L
11.9 U.S.gals
9.9 Imp.gals
(1) Drain Plugs
(2) Filling Plug
(3) Dipstick
(A) Oil level is acceptable within this
range.
To Next Page
