CABIN
6. CHECKING, DISASSEMBLING AND SERVICING

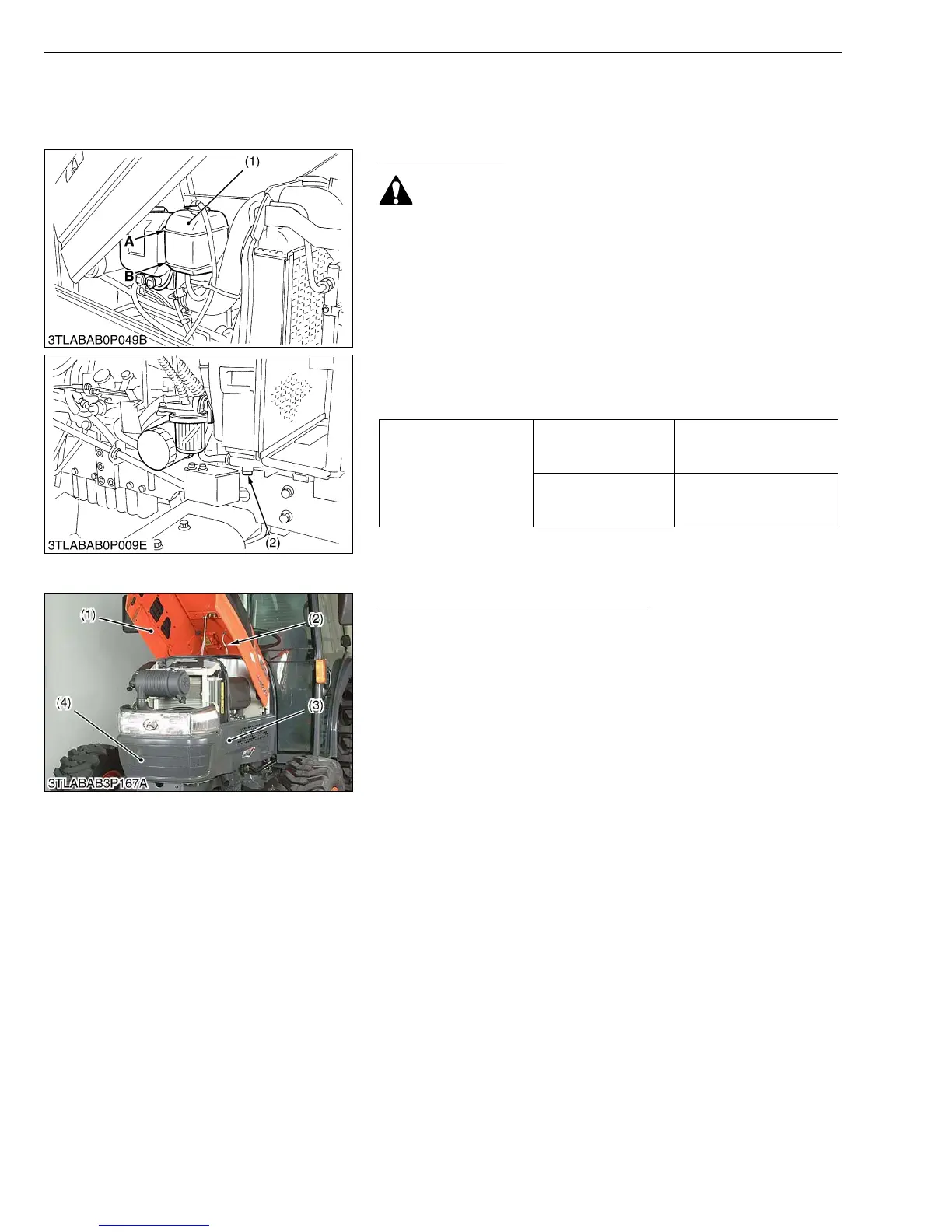

[1] SEPARATING CABIN FROM TRACTOR BODY
Draining Coolant
CAUTION
• Never remove the radiator cap until coolant temperature is
well below its boiling point. Then loosen cap slightly to the
stop to relieve any excess pressure before removing cap
completely.
1. Stop the engine and let cool down.
2. Loosen the drain plug (2) to drain the coolant.
3. Remove the radiator cap to completely drain the coolant.
4. After all coolant is drained, retighten the drain plug (2).
(When refilling)
• Fill the coolant between the “FULL” and “LOW” marks of
recovery tank (1).
W10590830
Battery, Front Grill, Skirt and Bonnet
1. Open the bonnet and disconnect the battery negative cable.
2. Disconnect the head light connector and remove the front grill (4).
3. Remove the left and right side skirts (3).
4. Disconnect window washer hoses (2).
5. Remove the bonnet (1).
• When disconnecting the battery cords, disconnect the
negative cord first, when connecting, positive cord first.
W1059877
Coolant capacity (with
recovery tank)
L3830
L4630
8.7 L
9.2 U.S.qts
7.7 Imp.qts
L5030
9.2 L
9.7 U.S.qts
8.1 Imp.qts
(1) Recovery Tank
(2) Drain Plug
A : FULL
B : LOW
(1) Bonnet
(2) Window Washer Hose
(3) Skirt
(4) Front Grill
