c) To save the settings, touch OK.
Loading Labels in Tray 1

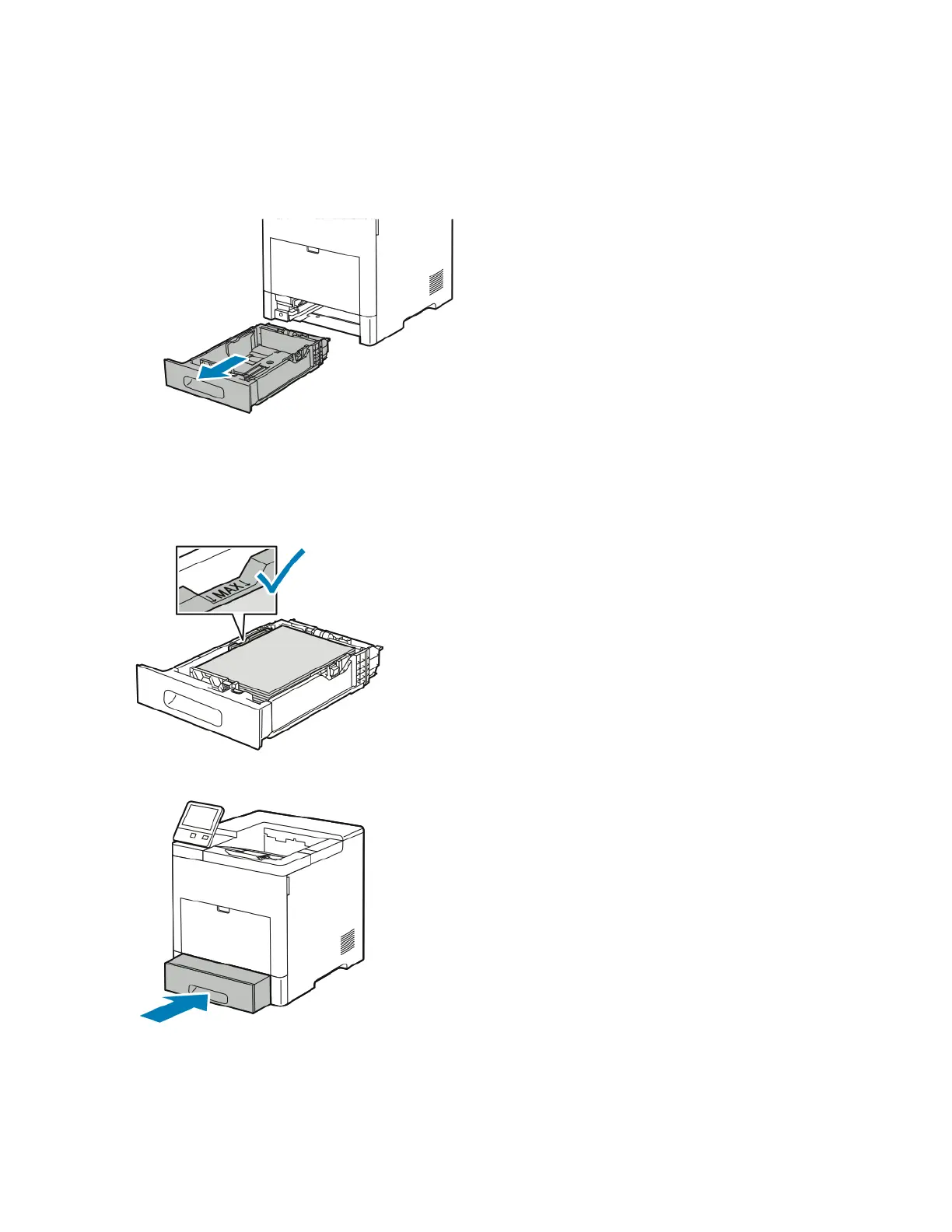

1. To remove the tray from the printer, pull out the tray until it stops. Lift the front of the tray slightly,
then pull it out.
2. Adjust the paper length and width guides.
3. Load the label sheets in the tray, face up.
Note
Do not load paper above the maximum fill line. Overfilling can cause paper jams.
4. Slide the tray back into the printer.
5. Push the tray in all the way.
6. If the Tray Mode is set to Fully Adjustable, the printer prompts you to set the label sheet size, type
and color.
6-23Xerox
®
VersaaLink
®
B600/B610 Printer
User Guide
Paper and Media
