Note

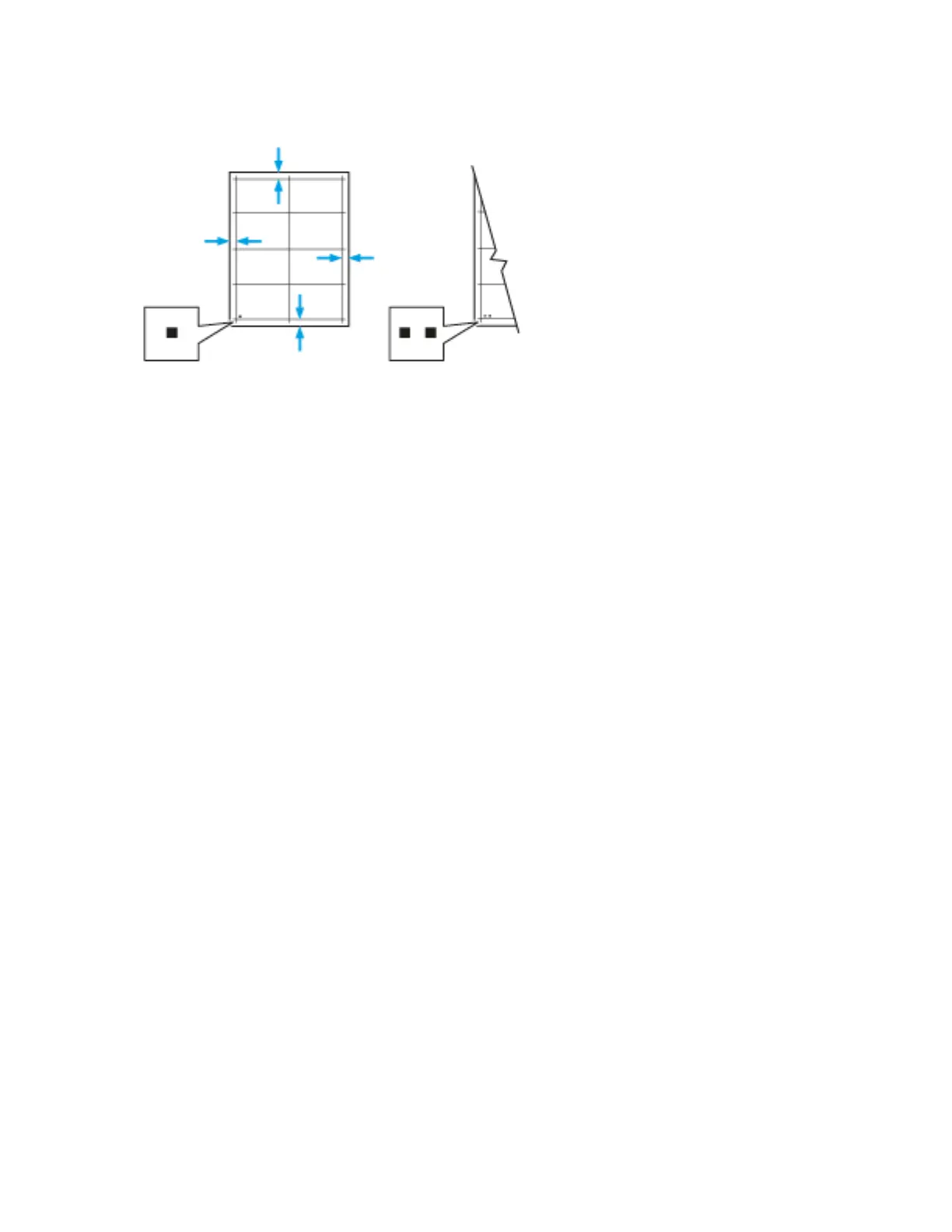

For identification, a single dot is printed on Side 1, and two dots are printed on Side 2.
10. For Side 2, measure the distance of the printed image from the top, bottom, left, and right edges.
11. If the image is centered, no adjustment is required. If the image is not centered, adjust the paper
registration. For more information, refer to Performing a Paper Registration Adjustment.
Performing a Paper Registration Adjustment
1. At the control panel, press the Home button.
2. Log in as administrator. For details, refer to the System Administrator Guide at
www.xerox.com/office/VLB600_VLB610docs.
3. Touch Device > Support > Image Position.
4. To adjust registration, select the source paper tray.
a. Touch Paper Supply.
b. Touch the desired tray.
5. Using the chart printed in Verifying Paper Registration, select the side for registration.
a. For adjusting Side 1, touch Adjusted Side, then touch Side 1.
b. For adjusting Side 2, touch Adjusted Side, then touch Side 2.
6. To adjust the registration, touch Lead/Side Registration.
a. To adjust the side-to-side registration, for Side Registration, touch the Plus icon (+) or the Minus
icon (-).
b. To adjust the top-to-bottom registration, for Lead Registration, touch the Plus icon (+) or the
Minus icon (-).
For reference, position the chart so that Side-1 or Side-2 dots are at the bottom of the page.
• For Lead Registration, a positive value shifts the image down the page.
• For Side Registration, a positive value shifts the image to the left.
7-7Xerox
®
VersaaLink
®
B600/B610 Printer
User Guide
Maintenance
